5.3 - Room Combining
Hardware
1. Connect the audio source to the inputs of the DriveRack.
2. Connect the outputs of the DriveRack to the amplifier.
3. Making sure that all outputs are muted, apply power to the mixer and amplifiers.
4. Make connections between the ZC-4 and the DriveRack. Make connections between the
contact closure and the ZC-4.
Software
1. Select Program 7 - Room Combine 1.
2. Load the program from the front panel or from the DriveWare GUI .
3. Using the Utility menu, select the ID for the ZC-4 and program the ZC-4 with switch position
0 being Program 7 and switch position 1 being Program 8.

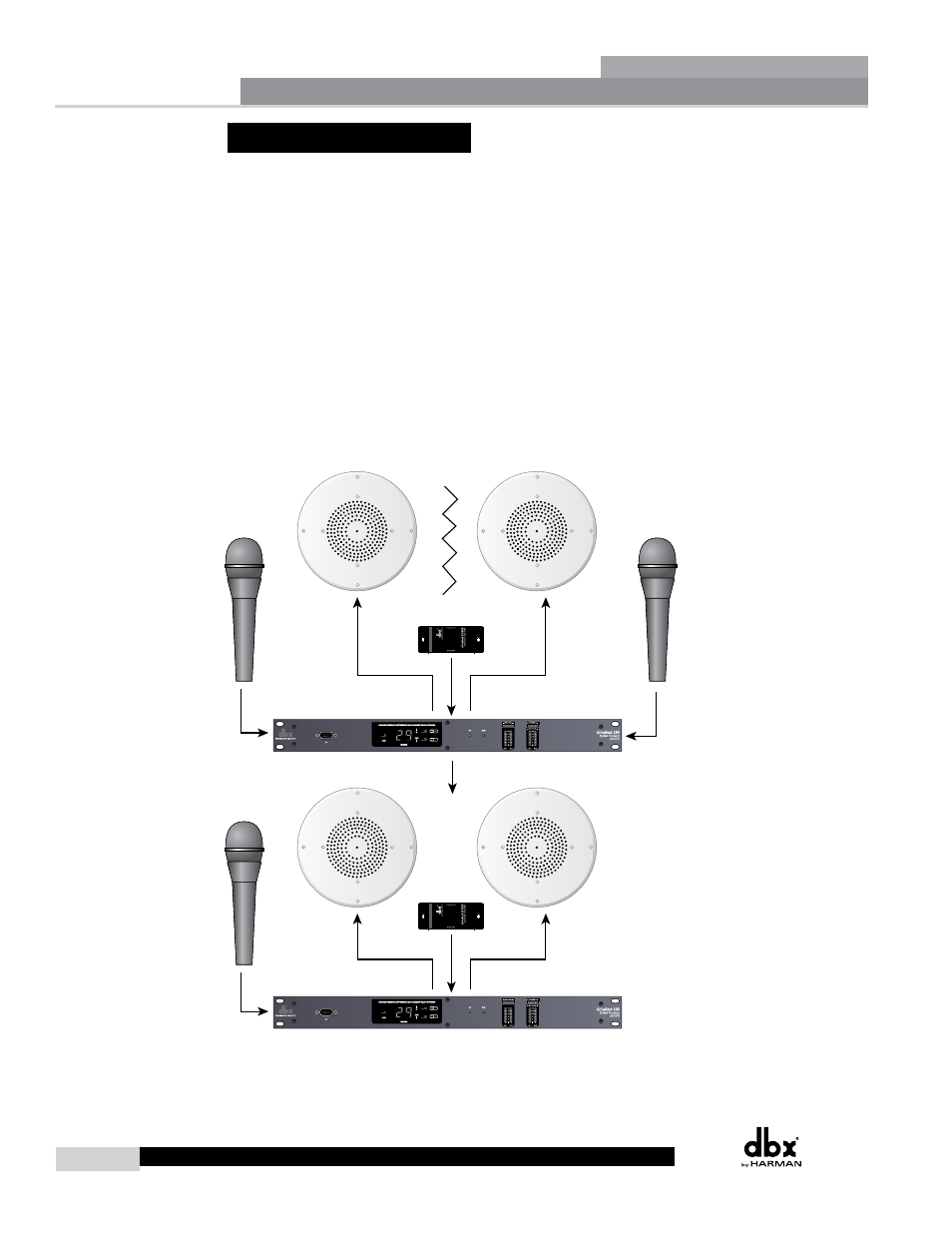

Room Combining
Retractable Wall
Provides:
Mic Pre
EQ
Feedback Suppression
Auto Gain Control
Bandpass Filtering
Limiting
Delay
Application Guide
