15748-InstructionSheet

Derale Performance, Los Angeles, CA

800.421.6288 www.derale.com

Warning: Installation of accessories should only be undertaken by those with mechanical knowledge and are familiar with working on
vehicles. Always use eye protection (goggles, safety glasses or shield). Park the vehicle in a well lit area, on level ground and apply the
parking brake. Only work on a cold vehicle that has been sitting overnight, failure to do so will result in severe burns and injury. Before starting
the vehicle, make sure no tools or any other items are left under hood that could interfere with or be drawn into moving parts of the engine.
Failure to follow instructions can lead to severe damage and personal injury.

FILTER MOUNT INSTALLATION

1.

Choose a convenient location for the Ports-Up Filter Mount.

Make sure there is enough space for future servicing of the oil
filter. Suggested Locations: Firewall, Radiator Support, Fender
well. (See Diagram #3)

2.

Take the 3/4-16 Filter Nipple supplied, making sure the shorter

end of threads is installed onto the Ports-Up Filter Mount.

3.

Using the filter mount as a template, mark and drill three 3/16”

holes.

4.

Using the #14 Sheet Metal Screws provided, install the Ports-Up

Filter Mount onto the vehicle.

5.

Using the Hose Clamps provided, attach both ends of the 1/2”

Hose provided to the hose barbs on the installed Spin-On
Adapter forming a loop.

6.

Carefully route hose over to the Ports-Up Filter Mount.

Keep hoses away from sharp edges, moving parts and

exhaust. Do not bend hose sharper than a 5” radius.

Note:

BRAND

PART #

AC

Fram

Motorcraft

Purolator

PF2

PH8A

FL1A

PER1A

OIL FILTER CHART

(Page 2)

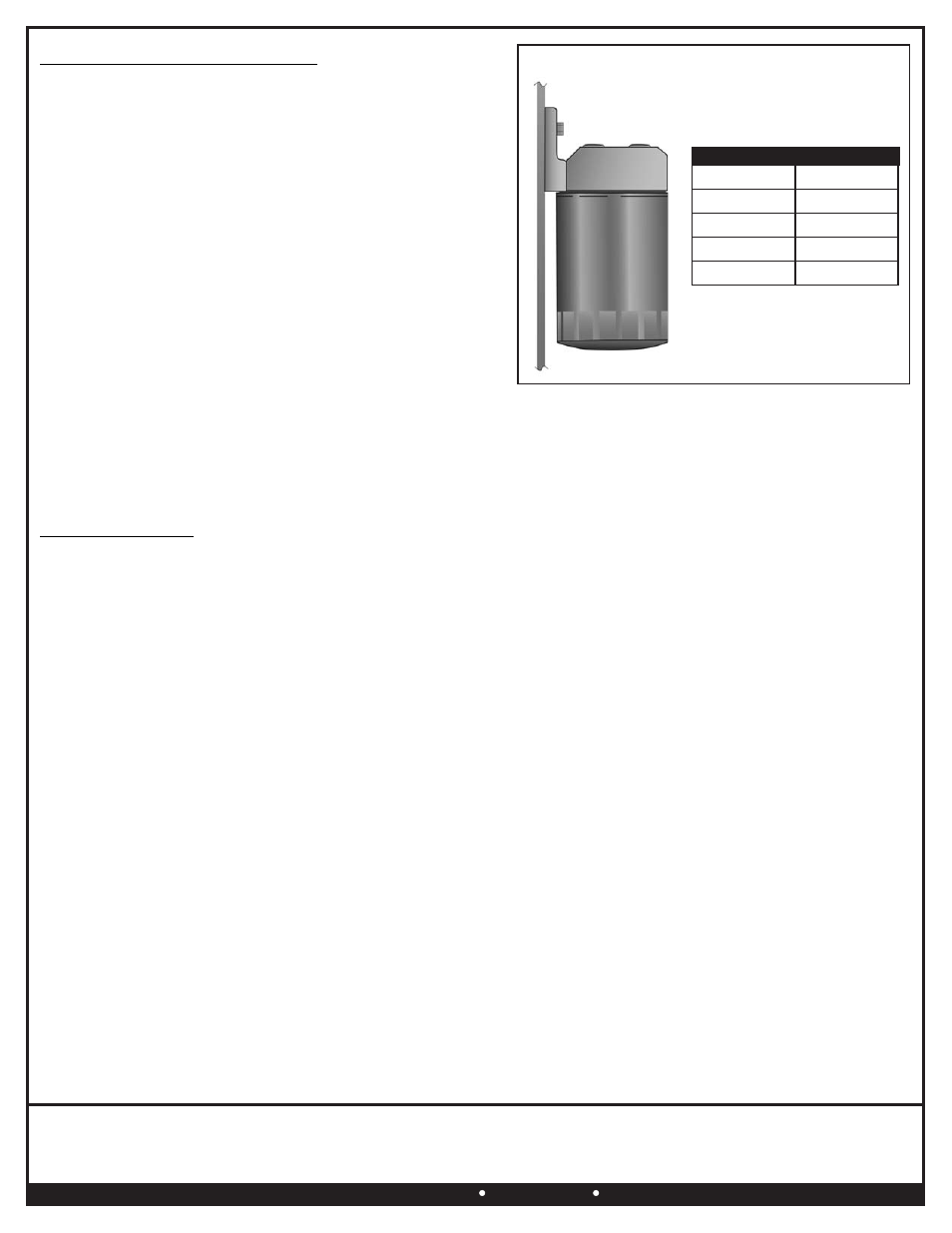

Diagram #3

7.

Cut the hose to the proper length.

8.

Using the Hose Clamps provided, attach the hose coming from the OUT on the Spin-On Adapter to the IN on the Ports-Up

Filter Mount.

9.

Using the Hose Clamps provided, attach the hose coming from the IN on the Spin-On

Adapter to the OUT on the Ports-Up Filter Mount.

10. Apply a light coat of oil onto the o-ring of your new oil filter and install on the filter mount.

1.

Start the engine and quickly check all connections for leaks.

2.

Turn-off the engine and check the oil.

3.

Add oil as needed.

VEHICLE TESTING
