2 TECHNICAL CHARACTERISTICS

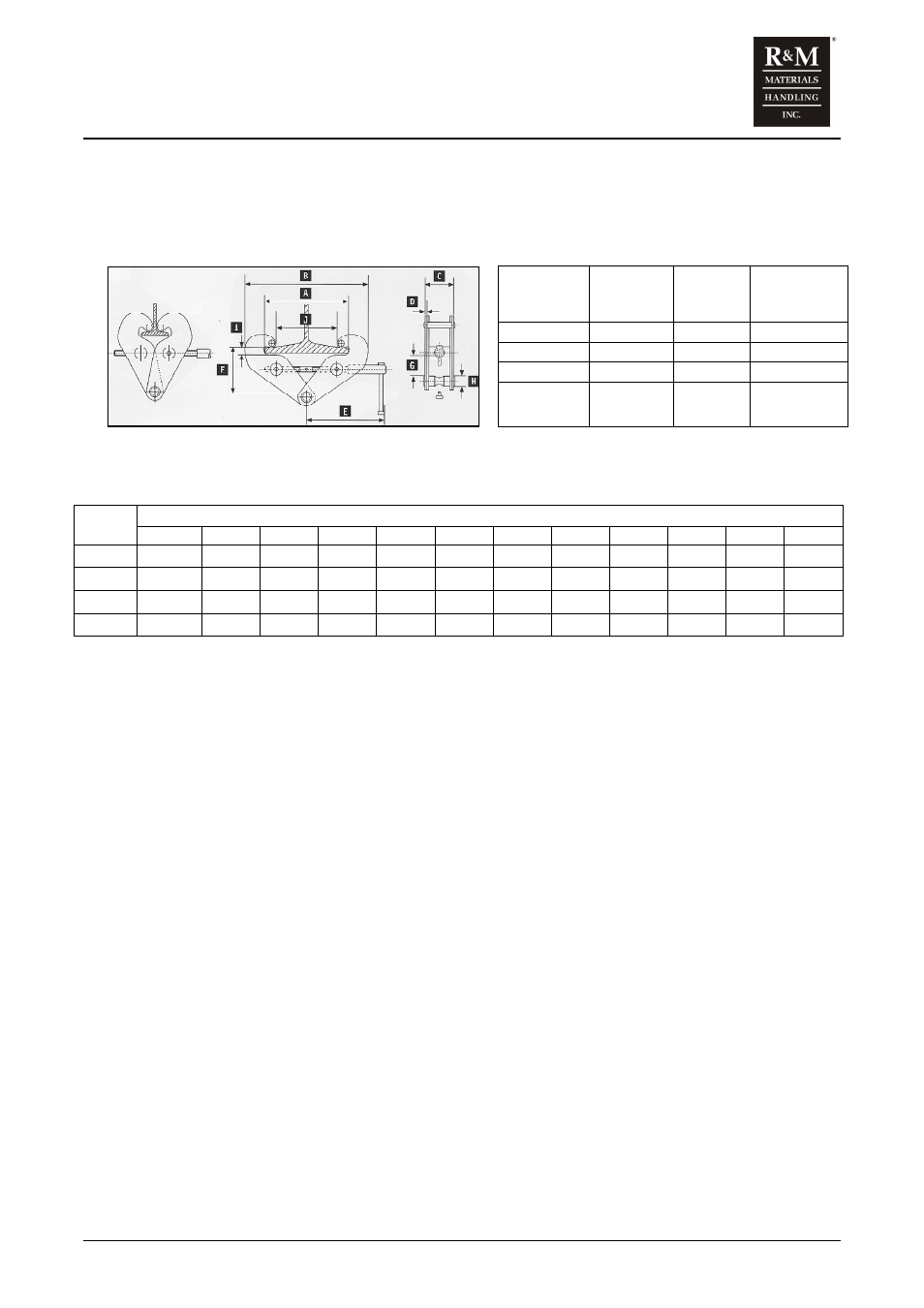

Figure 1. Beam Clamp Dimensions
Type SWL
(kg)
Beam
width
(mm)
Weight
(kg)
RBC 1 1000 75-230 3.9
RBC 2 2000 75-230 5
RBC 3 3000 80-320 9.5
RBC 5 5000 90-310 11.3
Table 1. Beam Clamp Dimensions
Type Dimensions (mm)
A max B max B min C D E F Max F min G Min H I J
RBC 1 240 192 340 70 5 210 150 45 45 20 20 185
RBC 2 240 192 340 70 5 210 150 45 45 20 20 185
RBC 3 316 238 445 106 8 250 207 165 76 22 34 261
RBC 5 306 248 455 114 10 250 210 167 76 28 34 251
