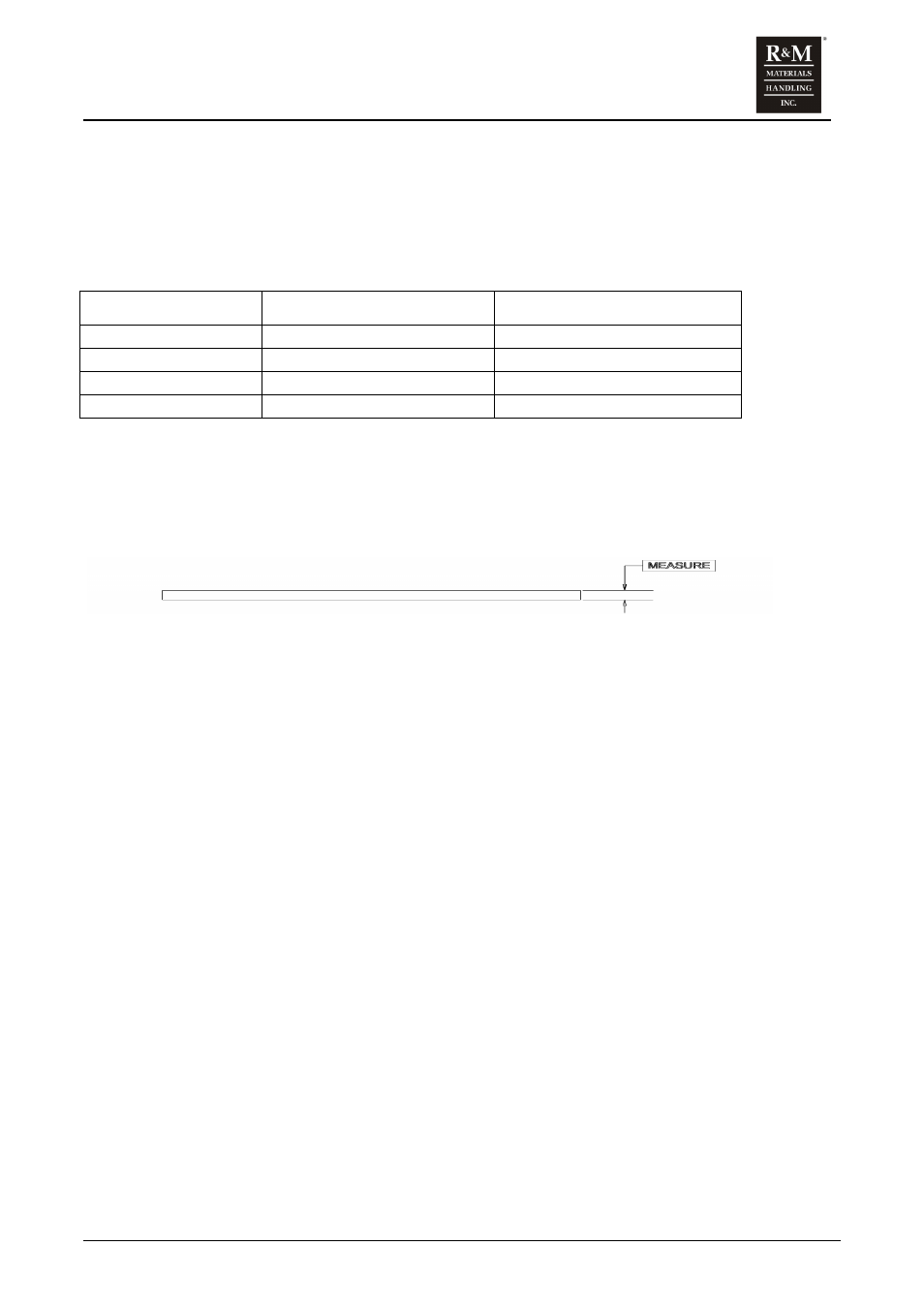

4.4 Replacement Criteria for Brakes
Table 3. Replacement Criteria for Brakes
TON - ITEM - THICKNESS AS NEW REPLACE WHEN
3/4 - 52308974 0.166 inches (4.21 mm) 0.126 inches (3.21 mm)
1 1/2 - 52308975 0.146 inches (3.71 mm) 0.107 inches (2.71 mm)
3 - 52308976 0.144 inches (3.66 mm) 0.105 inches (2.66 mm)
6 - 52308977 0.144 inches (3.66 mm) 0.105 inches (2.66 mm)
Figure 5. Brake Measurement
