FS1600EN Mar-13
Fact Sheet

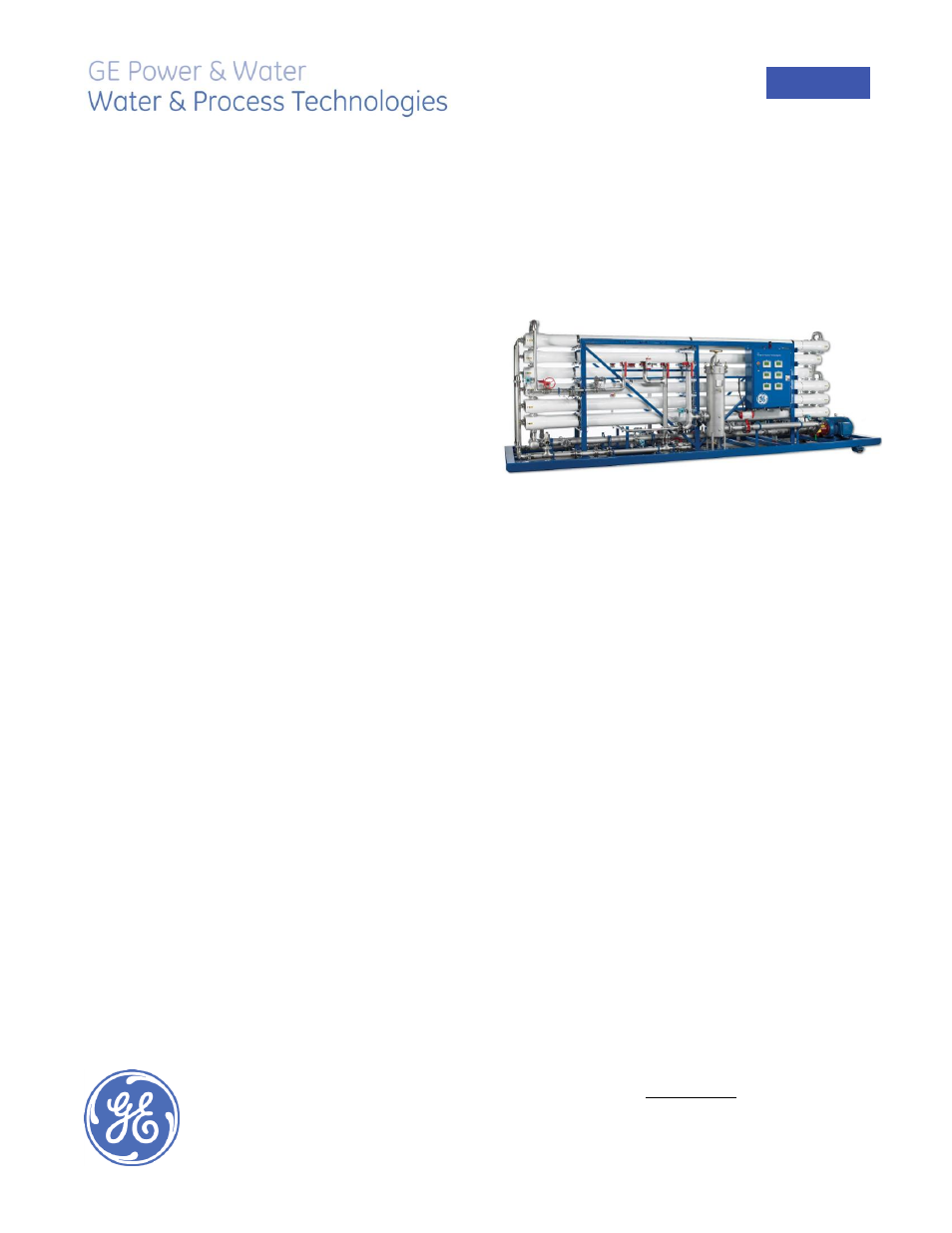

Osmo* TITAN Series
Reverse Osmosis Machines
120–700 gpm (27–158 m 3 /hr)
Key Benefits
 Compact treatment system for variable water
quality
 Configurable process flow to meet changing water
demands; two pass or two train operability in a
single system on two models
 Skid mounted VFD for high pressure pump to opti-
mize energy usage and accommodate varying wa-
ter temperatures
 Designed to ANSI B31.1 specifications
 Premium instrumentation with HART protocol
 Skid-mounted; reduces onsite installation time and
costs
 Easy to install
 Simple to operate
Standard Features
 Allen Bradley ControlLogix 1756 PLC with Ethernet
 Allen Bradley PanelView Plus 1000 10-inch color
touchscreen interface
 ASME code housings
 Full system or Bank-by-bank cleaning
Automatic permeate flush on shutdown
Operating Parameters
Recovery.........................................................................................66-75%
Design temp. ......................................................................... 60ºF (16
 C)
Operating range .................................................. 60-77  F (16-25  C)
Nominal System rejection .....................................................97-99%
Minimum inlet pressure .......................................... 30 PSIG (2 bar)
Average membrane flux ....................................................12-14 gfd
Design TDS Basis ..................................................... 1500-2500 ppm
Materials of Construction
High-pressure piping ..................... 316 Stainless Steel, Sch. 10
Low-pressure piping ...................... 316 Stainless Steel, Sch. 10
Frame ........................................................ Painted blue carbon steel
Enclosure ....................................................................................... NEMA 4
Membrane Elements
Membrane Model ......................................................... AG8040F-400
Style ................................................................ Spiral-wound elements
Membrane type ........................................................ TFC (Polyamide)
Average Membrane rejection ................................................ 99.5%
Cartridge Filtration
Housing material ............................................... 316 Stainless Steel
Cartridge filter .............................. 1-micron nominal, ROsave.Z*
