Fact Sheet

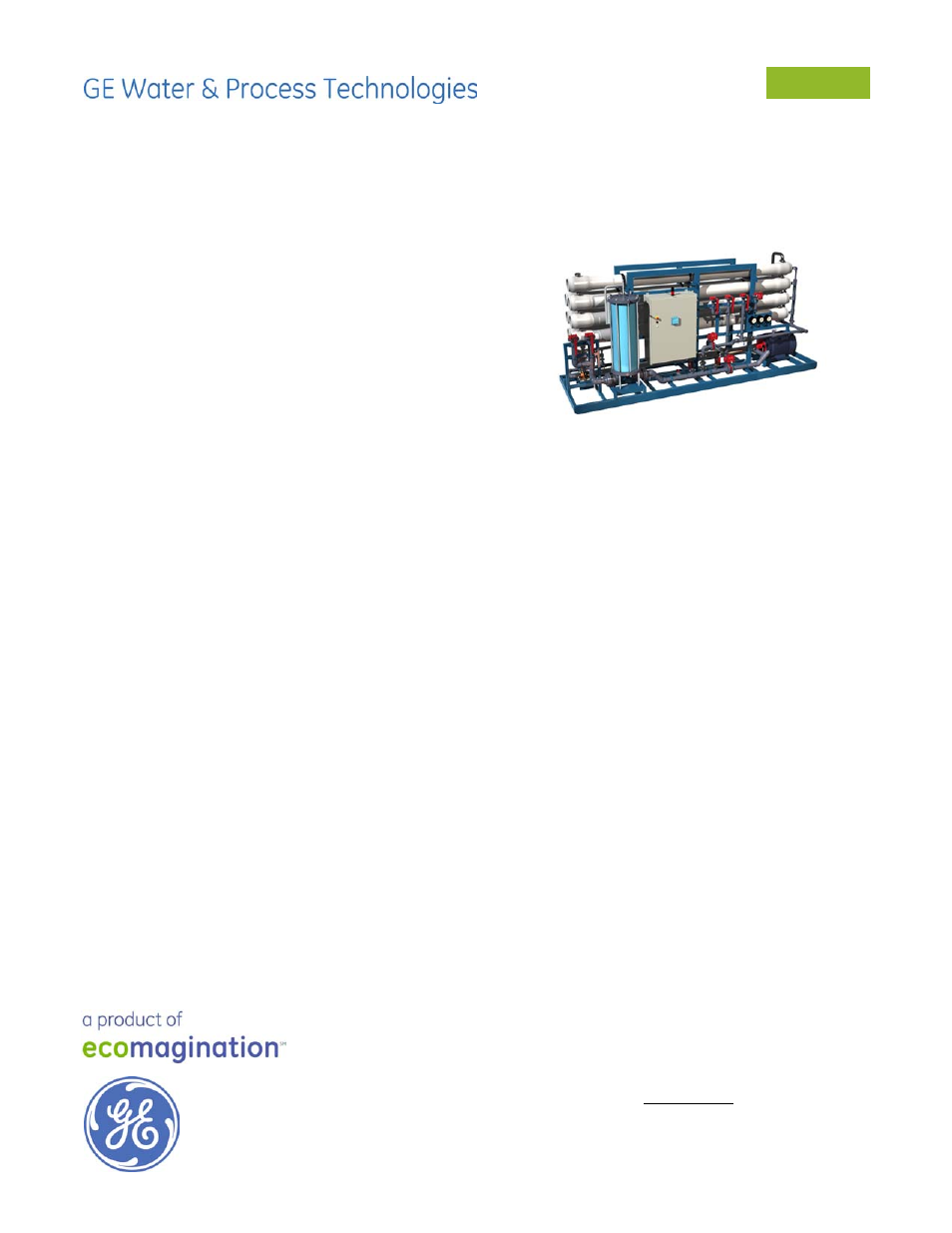

SeaPRO Series 50 Hz
Seawater Desalination Machines 45,000 ppm NaCl
100-300 m 3 /day (20-60 gpm)
Basic Features (BAS)
• GE Fanuc Quick Panel 6”, 6-inch color display, Pri-
marily text operating screens, Touchscreen con-
trols
• GE Fanuc Micro VersaMax, Communication:
RS232/DH485, Analog output: 6 points
• 4-20 mA instruments displayed on instrument cen-
ter
• Variable frequency drive (VFD) for high pressure
pump
• Stand alone master control enclosure, skid
mounted local control enclosure with terminal
strips
Premium Features (PRE)
• GE Fanuc QuickPanel 12” , 12-inch color display,
Text and pictorial operating screens, Touchscreen
controls
• GE Fanuc VersaMax, Communication:
RS232/DH485/Ethernet, Analog output: 4 points
• 4-20 mA instruments on PanelView
• Primary and final pressure transmitters
• Variable frequency drive (VFD) for high pressure
pump
• Automated valves and control for full permeate
flush upon shut down
• Stand alone master control enclosure, skid
mounted local control enclosure with remote I/O
Instrumentation
Flow Meters........................................... Permeate, concentrate
Conductivity...................................................................... Permeate
pH .....................................................................................................Feed
Instrumentation (continued)
Pressure .......................... Pre-filter, post-filter, primary, final,
permeate, concentrate, pump discharge
(PRE Feature= Primary, Final transmitter)
Pressure Switch ......................Feed, permeate, concentrate
Instrument center........................................Thornton 770 MAX
Options Available
• Allen Bradley control system
• Multi-Media filters
• Clean-in-Place (CIP) units
• Chemical feed systems
Documentation Included
• Operation and maintenance manual
• Control narrative
• Drawings: piping and instrumentation, electrical
and general dimensional
Operating Parameters
Recovery ........................................................................................35%
Design temp...................................................................25ºC (77ºF)
Design Feed TDS. ............................................45,000 ppm NaCl
Operating range......................................2 to 30ºC (35 to 85ºF)
Minimal inlet pressure ........................................... 2 Bar (30 psi)
