Fact Sheet

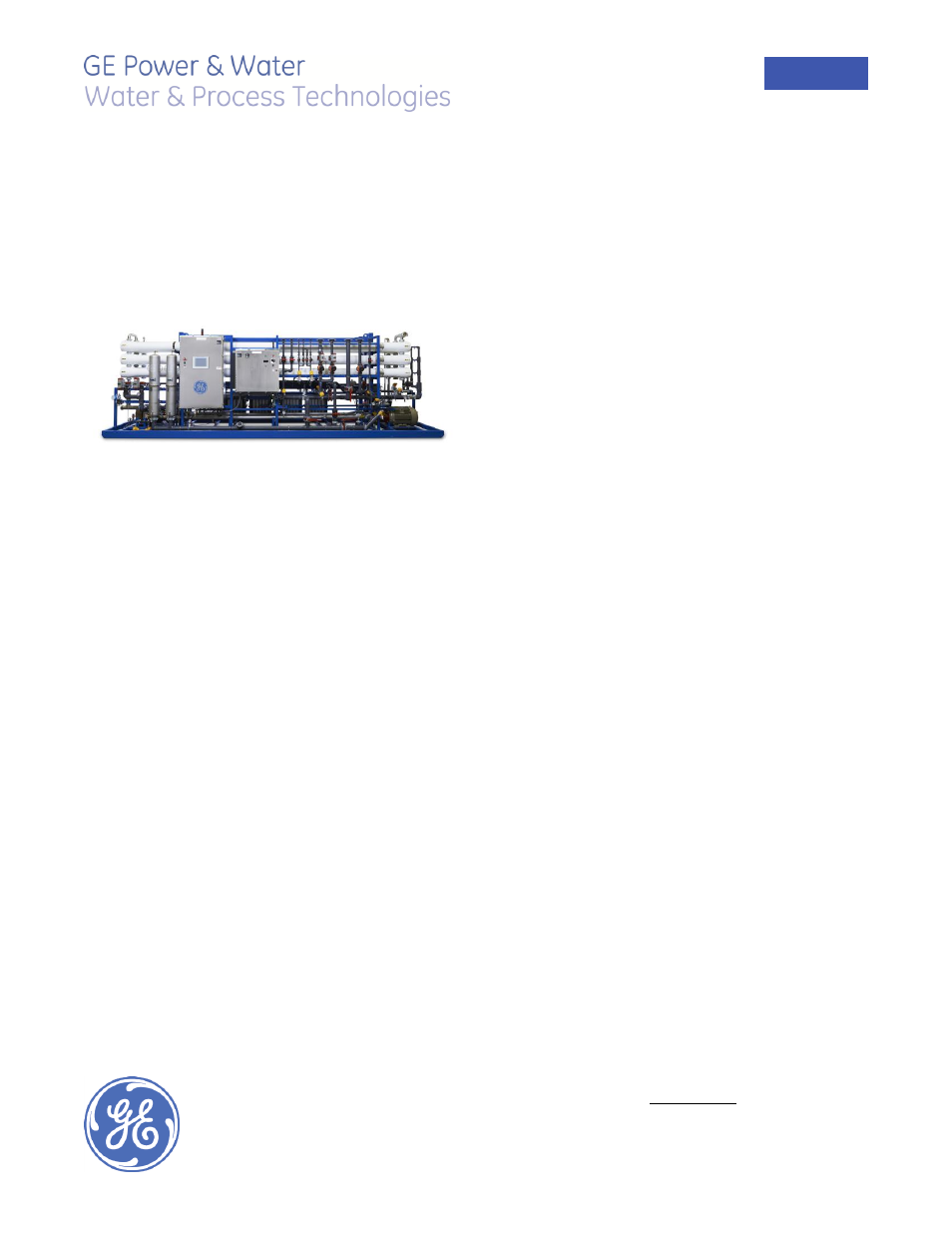

PRO E-Cell* Series
Integrated RO/EDI Machines 50 to 200 gpm 60 Hz
Features
 RO and EDI mounted on common skid
 PRO E-Cell* 50 and 100 are 2 pass RO designs
 PRO E-Cell 150 and 200 are 1 pass RO designs
 RO Pump VFD(s) and EDI DC Drive mounted on
skid
 RO permeate flush sequence on shutdown and
divert to drain on startup
 Allen Bradley control system with Compact
Logix PLC and PanelView Plus 1000 interface
 UL/cUL Electrical Panel
Instrumentation
Flow Meters ....................RO Permeate, RO Concentrate
EDI Product, EDI Concentrate, EDI Electrode
Pressure Gauge ..................... Pre & Post Cartridge Filter
Primary, Final, Interstage, RO Permeate,
RO Concentrate, RO Pump Discharge,
Pressure Switch............................ RO Feed, RO Permeate
RO Concentrate
Pressure Transmitter ..................... RO Primary, RO Final
RO Permeate, EDI Product, EDI Concentrate,
EDI Electrode, EDI Dilute Feed
pH Meter ......................................................... RO Feed pass 1
(also pass 2 for 50-100 model)
ORP (Optional) ............................................... RO Feed pass1
Accessories
 PRO Multi-Media filters
 PRO Activated Carbon and Softeners
 PRO Clean-in-Place units
 PRO Chemical Feed Systems
 Transfer Pumps and Storage Tanks
Operating Parameters
Design Recovery RO1 ............ 75% Pass 1; 85% Pass 2
Design Recovery EDI ................................................. 90-95%
Design Temperature .......................................... 60ºF (16ºC)
Operating Temperature Range ........ 40-85ºF (5-29ºC)
System Inlet Pressure ........................ 30-60 PSI (2-4 Bar)
1 Recovery Rate can vary +/- 5%
Materials of Construction
High-pressure piping ....... 316 Stainless Steel, Sch. 10
Low-pressure RO & EDI piping .................... PVC, Sch. 80
Frame ...................................... Epoxy-coated carbon steel
Enclosure ............................................ Nema 4 carbon steel
Clamps/fittings .................................................... Zinc-plated
Membrane Elements and Housings
Model (50-100) GE ....................................................... AK-400
Model (150-200) ........................ GE PRO-RO-400-HR-WT
Average membrane flux (50-100)......... 12 GFD pass 1
21 GFD pass 2
Average membrane flux (150-200) ..................... 14 GFD
Membrane rejection ..................................... 99.0 to 99.5%
Housing material ................................................... Fiberglass
Housing Pressure Rating ....................................... 450 psi
