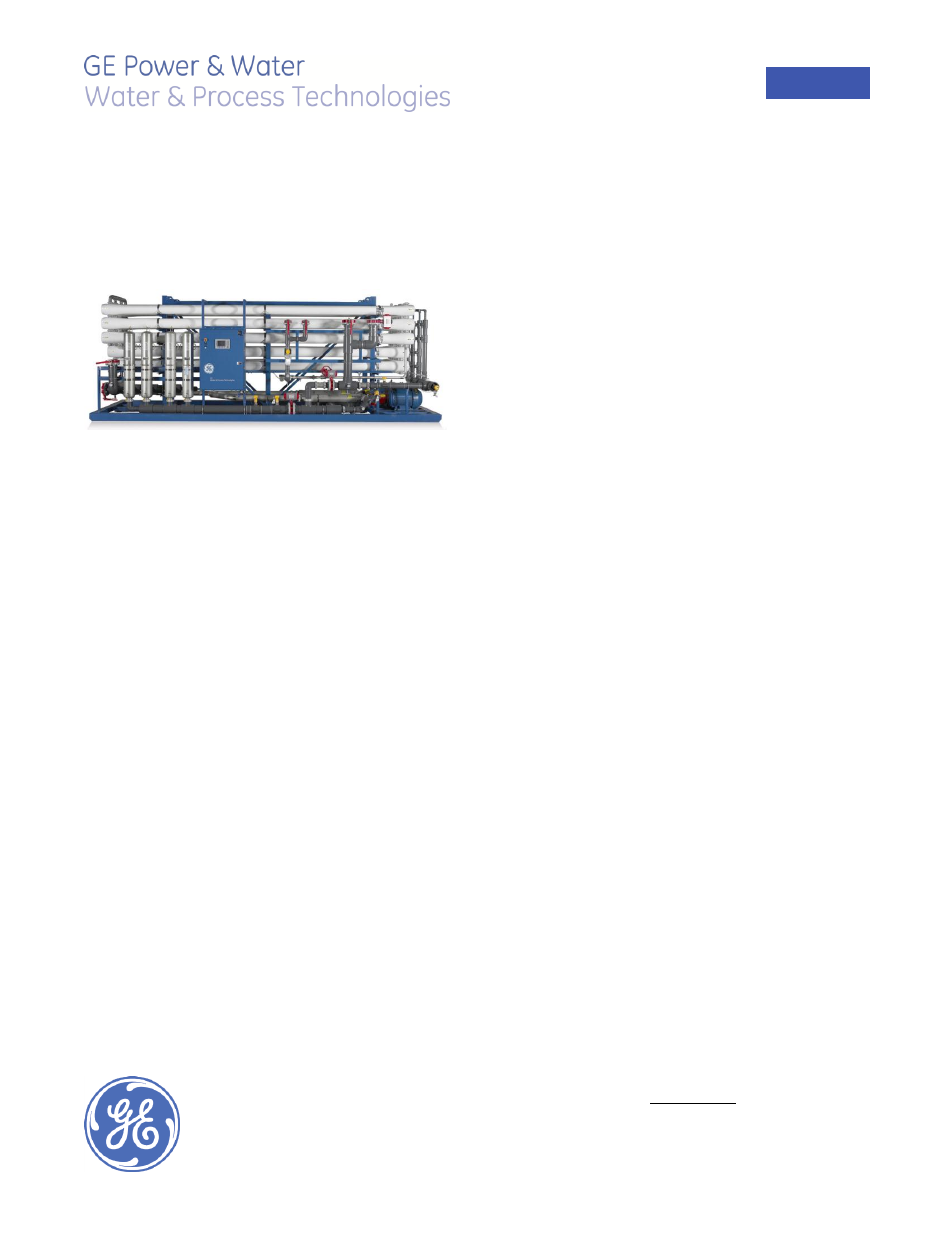

ReNEW NA Series
Wastewater Reuse Reverse Osmosis Machines 50 to 330 gpm
The ReNEW NA has been designed at a special
low-flux for wastewater reuse applications (i.e. af-
ter MBR or tertiary UF treatment).
This new platform is a perfect fit to polish GE
Z-MOD*, Z-BOX and Z-PAK Series MBR and UF
packaged plants effluents.
Features
Separated
Control
&
High
Voltage
Enclosures with single power disconnect
Allen Bradley CompactLogix PLC
Communication RS485
HMI Allen Bradley PanelView+700 Touch
Screen
4-20 mA Instruments on Touch Screens
Primary and Final Pressure Transmitters
Motor Starter: VFD (mounted on frame)
Bank-by-bank cleaning manifolds and valves
RO permeate Flush on Shutdown
Instrumentation
Flow Meters: ............................ Permeate & Concentrate
Conductivity: .............................................. Permeate, Feed
pH: ......................................................................................... Feed
Pressure: ................................. Pre & Post Cartridge Filter
.......... RO Feed , Pump Outlet, Interstage (x2)
...................................... Concentrate & Permeate
Pressure Switch:………. Feed, Permeate, Concentrate
ORP:…………………………………………………………………………Feed
Options Available
GE Fanuc PLC
Ethernet Communication
CIP PRE with heater for advanced
membranes cleaning
DuraSlick* membrane elements for higher
fouling applications (with flow & recovery de-
crease and pump change)
Feed water Guidelines
BOD < 20 ppm; TOC < 5 ppm
COD - must define what is creating COD
Phosphate – Use Argo Analyzer to simulate
scaling and calculate antiscalant dose
NTU < 1; SDI < 5
TDS design 2,000 ppm. Higher levels
require pump size review
Operating Parameters
Design Recovery
1
............................................................ 75%
Design Temperature ...................................... 60 ºF (15 ºC)
Operating Temperature Range .... 36-87 ºF (2-30 ºC)
System Inlet Pressure ...................... 30-60 psi (2–4 bar)
System Back Pressure .............................. < 15 psi (1 bar)
1
Recovery Rate can vary +/- 5%
