ISSUED: 01-28-00 SHEET #: 026-9006-2 07-23-04
Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
1 of 2

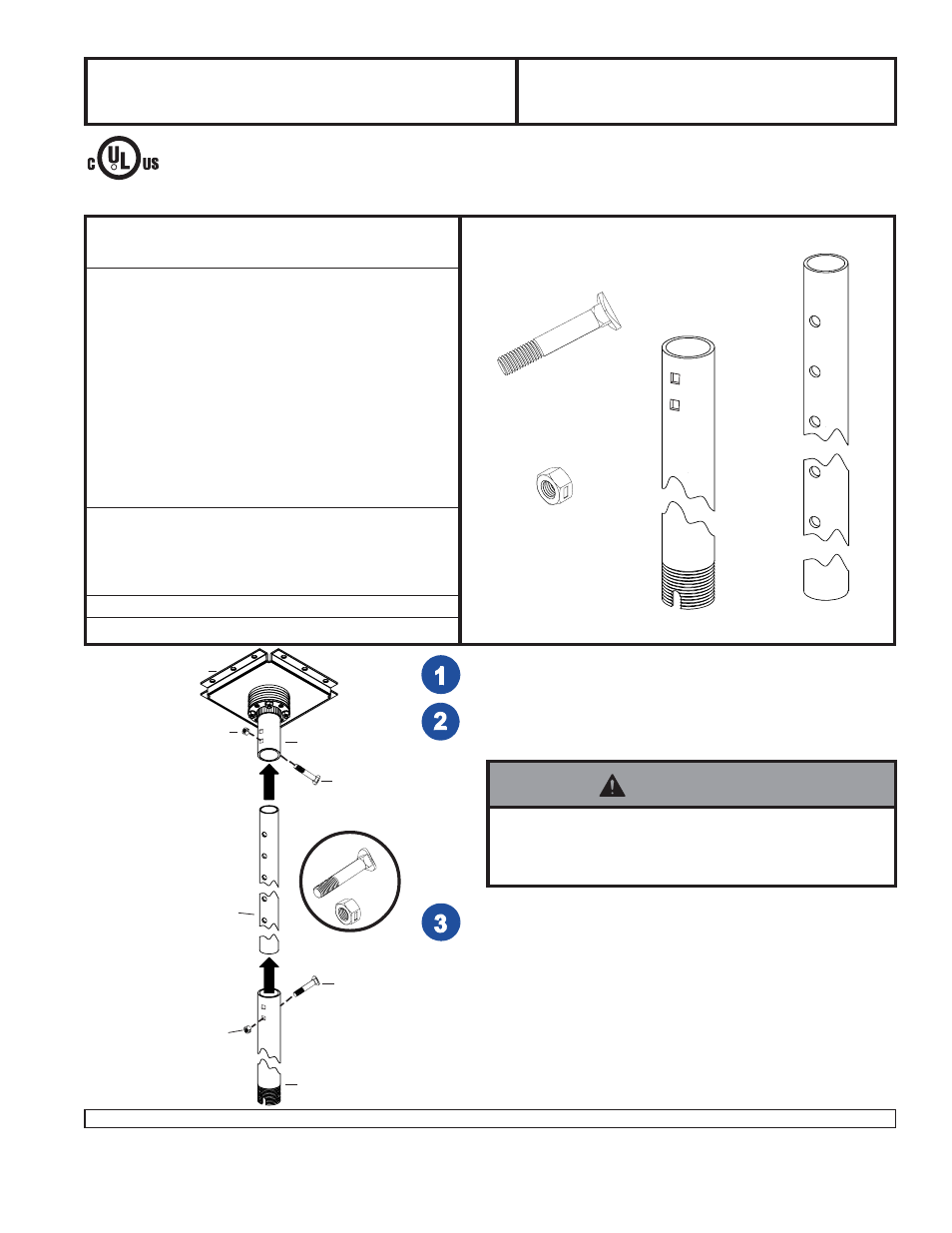

Installation and Assembly -
Multi-Display Extension Columns
Models: ADD0203, ADD0305 ADD0406, ADD0507,
ADD0608, ADD0709, ADD0810, ADD0911,
ADD1012, ADD012018, ADD018024
IMPORTANT! Read entire instruction sheet before you start installation and assembly.
PART # QTY. DESCRIPTION
A 2MD-55VS11D 1 extension pipe (ADD0203 only)
2MD-55VS12D extension pipe (ADD0305 only)
2MD-55VS10D extension pipe (ADD0406 only)
2MD-55VS01D extension pipe (ADD0507 only)
2MD-55VS09D extension pipe (ADD0608 only)
2MD-55VS03W extension pipe (ADD0709 only)
2MD-55VS08W extension pipe (ADD0810 only)
2MD-55VS05W extension pipe (ADD0911 only)
2MD-55VS06W extension pipe (ADD1012 only)
154-1032 extension pipe (ADD012018 only)
154-1034 extension pipe (ADD018024 only)
B 154-1001 1 adjuster tube (ADD0203 only)
154-1002 (all models except ADD0203,
ADD012018, ADD018024)
154-1029 (ADD012018, ADD018024 only)
C 580-1022 2 M10 x 60 mm curved carriage bolt
D 530-9402 2 M10 x 1.5 center lock nut
Parts List
Some parts may appear slightly different than illustrated.
Before you start make sure all parts listed are included with your product.
D
B
A
D
C
stub
C
D
Ceiling Decoupler
Extension Column attaches
to ceiling decoupler (sold
separately).
Install Ceiling Decoupler according to instructions provided with it.
Align hole in adjuster tube (B) with hole in stub. Attach with one bolt
(C) and lock nut (D).
Slide extension pipe (A) over adjuster tube (B) to the desired
height. Attach with one bolt (C) and lock nut (D).
C
D
B
A
C
MAXIMUM LOAD CAPACITY: 800 lb (364 kg)
R
This product is intended for use with UL
Listed products and must be installed by a
qualified professional installer.
• Installer must verify that the wall will safely support
four times the combined weight of all attached equip-
ment and hardware.
WARNING
