Peerless-AV GC-WII - Installation - Manual (Page 2)

2 of 7 ISSUED: 1-17-11 SHEET #: 125-9179-2 07-31-12
Installation to Solid Concrete or Cinder Block........................................Page 4
Installation to Wood Stud Wall..................................................................Page 3
Installation to Metal Studs.........................................................................Page 5
Mounting Surface Lock down Installation...............................................Page 6
A
B C
F
D E
H
G
I
J

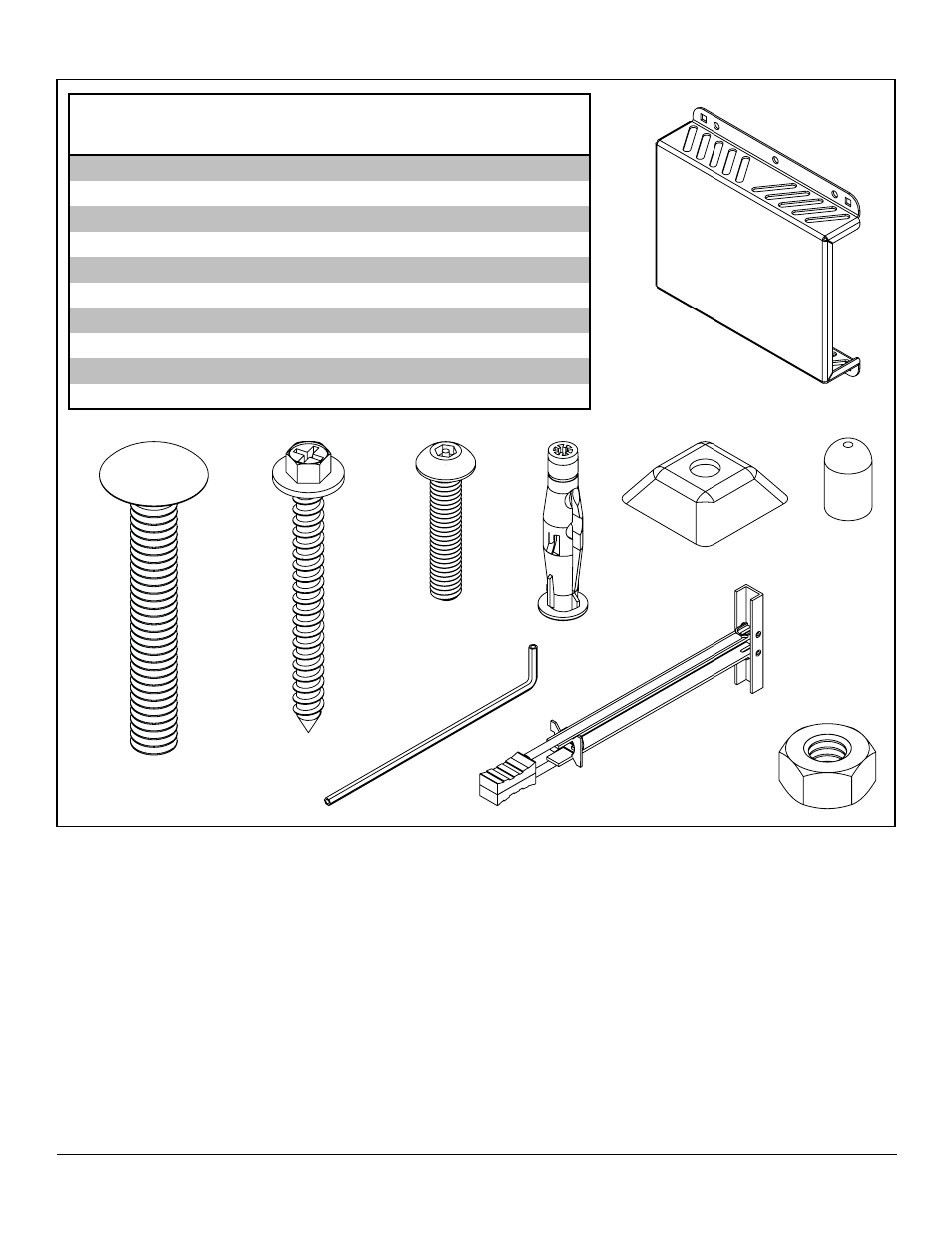

PARTS LIST
Description Qty. Part #
A lock down plate 1 125-2215
B 1/4-20 x 1.75" carriage bolt 4 520-1017
C #14 x 2.5" hex head wood screw 2 500-1005
D 1/4-20 x 1.5" socket pin screw 4 520-1256
E concrete anchor 2 590-0320
F 1/4-20 slope nut 3 530-0035
G plastic screw cap 4 590-1294
H 4 mm allen wrench 1 560-9646
I 1/4-20 plastic toggler 4 560-9708
J 1/4-20 nylock nut 2 530-9413
