7 of 11 ISSUED 08-09-06 SHEET #: 055-9470-5 11-21-11

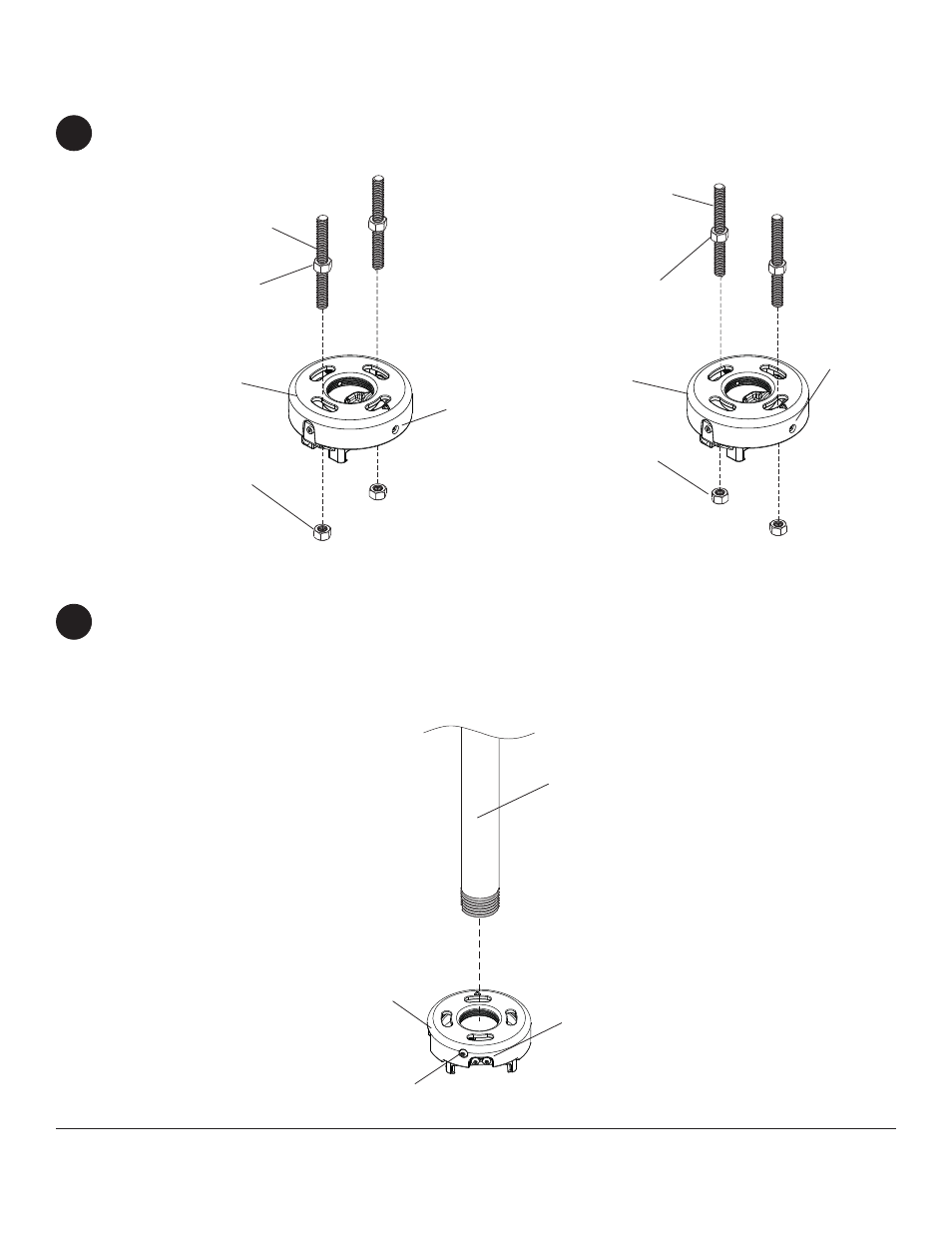

Thread two 3/8-16 hex thin nylon-insert locknuts (not included) on two 3/8-16 threaded rods (not included) to the
desired height of projector mount assembly. Attach projector mount assembly (A) to two 3/8-16 threaded rods using
two 3/8-16 hex thin nylon-insert locknuts as shown in fi gure 4.1 or fi gure 4.2.
Skip to step 6.
A
Installation to Extension Column
Screw projector mount assembly (A) onto extension column (sold separately) as shown in fi gure 5.1. Tighten
swivel stop screw against extension column or reducer using 4 mm allen wrench (T).
NOTE: Swivel stop screw is used to jam against threads of extension column or reducer to prevent any excess
movement of projector mount assembly (A). Do not overtighten screw; overtightening screw will damage threads
making it diffi cult to separate products.
A
SWIVEL STOP SCREW
1 1/2" EXTENSION COLUMN
(SOLD SEPARATELY)
3/8 -16 HEX THIN
NYLON-INSERT
LOCKNUT
(NOT INCLUDED)
A
FRONT OF
MOUNT
FRONT OF
MOUNT
fi g. 4.1 fi g. 4.2
BACK OF MOUNT
3/8 -16 HEX THIN
NYLON-INSERT
LOCKNUT
(NOT INCLUDED)
fi g. 5.1
3/8 -16 THREADED ROD
(NOT INCLUDED)
3/8 -16 HEX THIN NYLON-
INSERT LOCKNUT
(NOT INCLUDED)
4
3/8 -16 THREADED ROD
(NOT INCLUDED)
3/8 -16 HEX THIN NYLON-
INSERT LOCKNUT
(NOT INCLUDED)
5
Installation to Threaded Rod
(Professional installation only)
