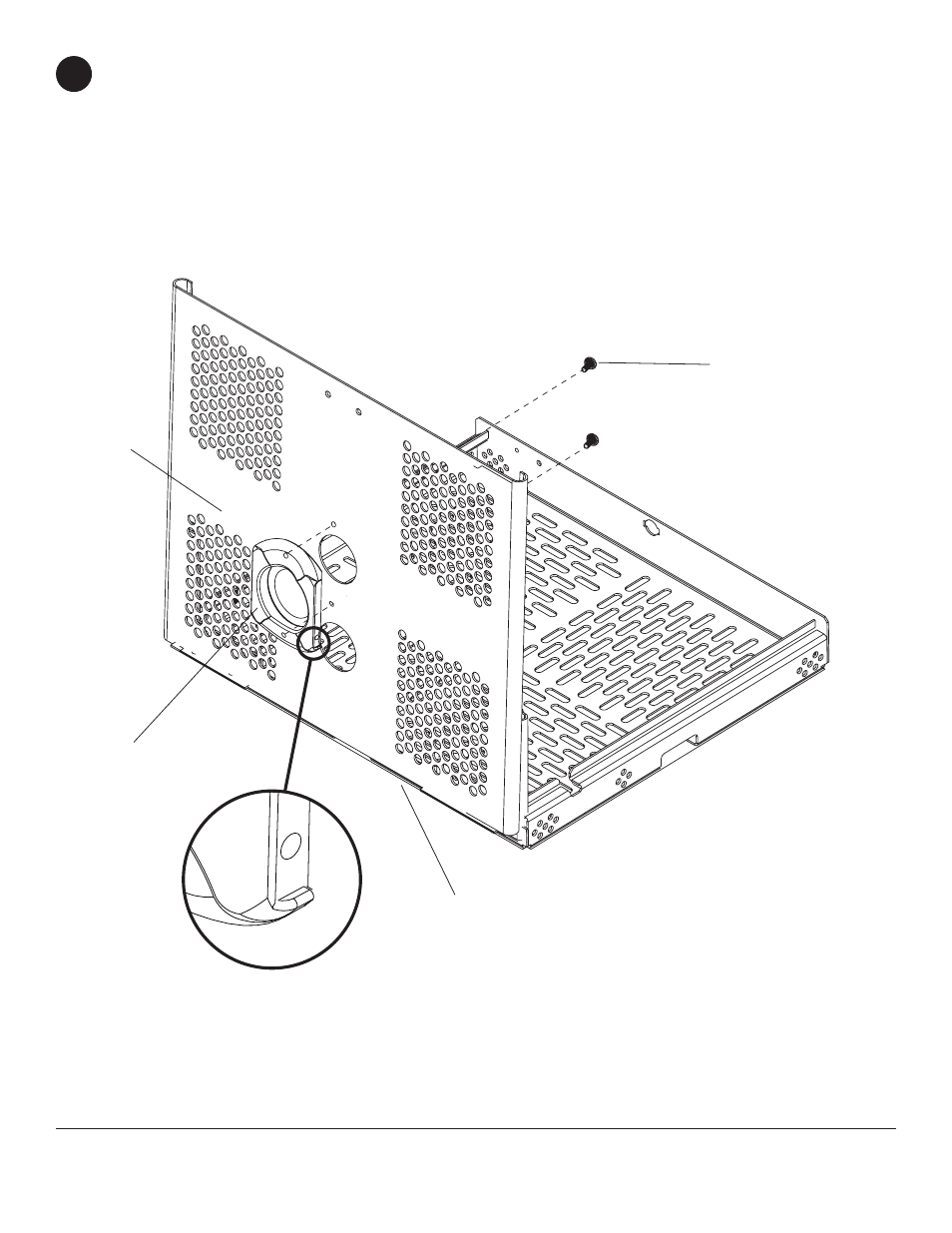

Remove the lock plug (C) by turning the key counterclockwise. Open the top cover and attach connection block (Z)
to tray (B) using two #10-32 x 3/8" serrated washer head socket pin screws (E) as shown.
NOTE: Make sure that the connection block shoulder is facing the back of projector.
E
B
CONNECTION
BLOCK SHOULDER
BACK OF
PROJECTOR
Z
