Attaching Safety Belt
Select slot in tray as shown in fig 4.1.
Remove backing and attach one clear strip through slot and around edge of tray as shown in fig. 4.2.
Repeat for other slot on other side of tray.
NOTE: This material prevents fraying or cutting of the belt.
4

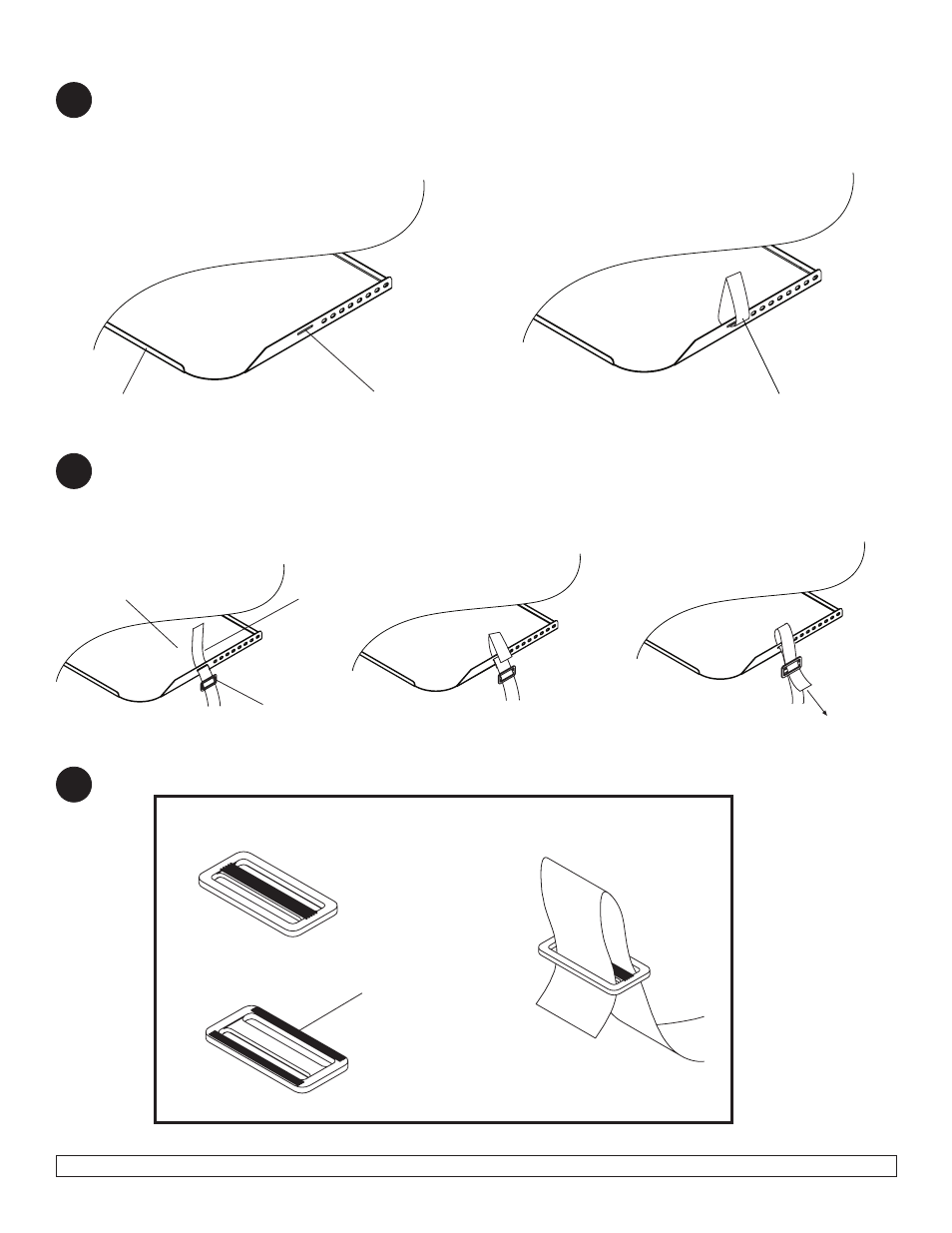

Fig. 4.1 Fig. 4.2
SLOT FRONT LIP CLEAR STRIPS
Take one belt and hold it so that the tri-bar belt clip is facing as illustrated. Feed belt up through the slot you have chosen.
Remember, belt only goes through outside slot. Now feed belt through belt clip as shown.
Repeat on other side of tray using other belt.
1 2
3
5
A
H
Continue by sliding on one belt guide and tri-bar clip on each side of the buckle. Refer to drawing below.
6
TOP
BOTTOM
NOTE: Teeth face down
TRI-BAR BELT CLIP
