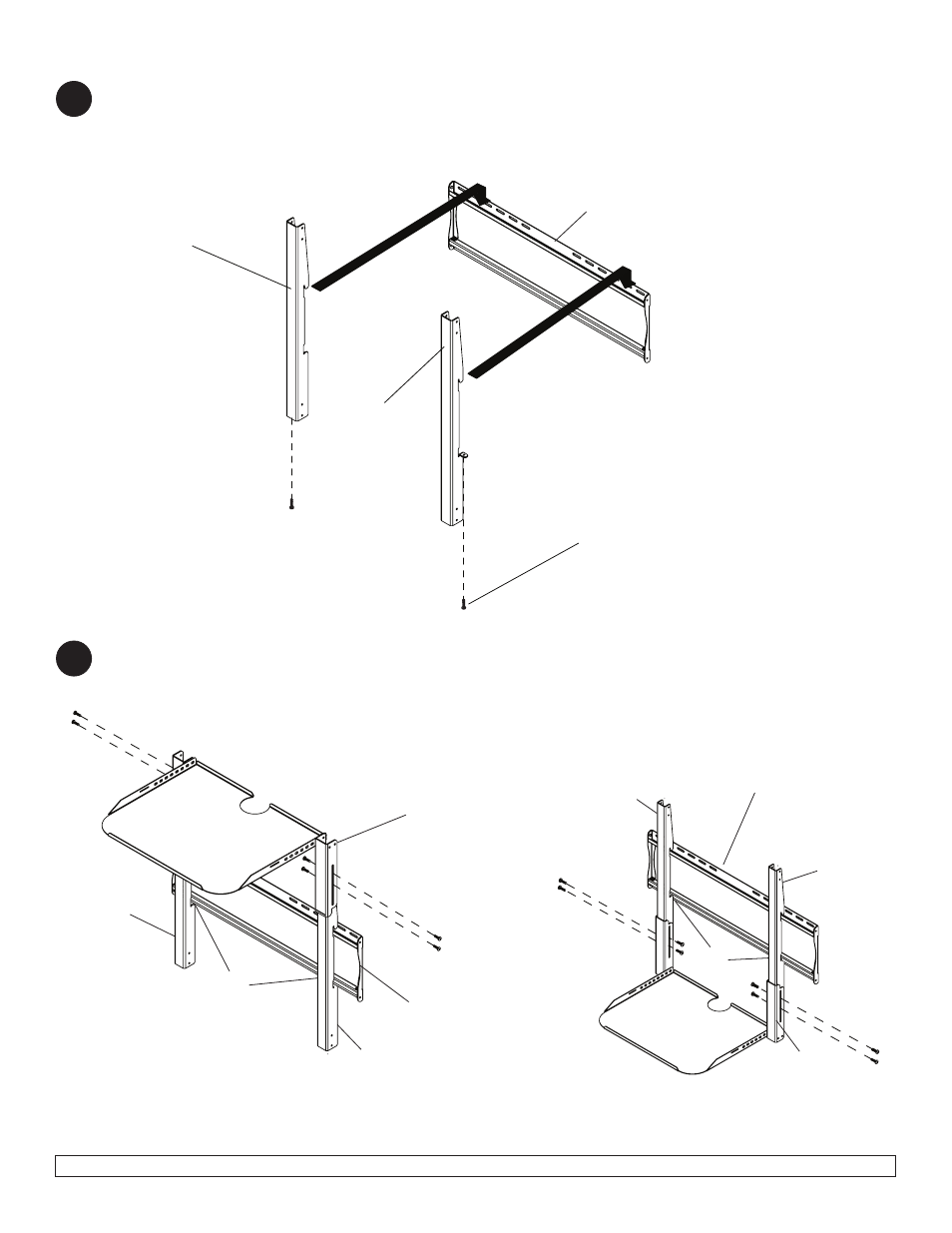

Attaching to Wall Plate
Hook right and left vertical supports ( B and C) onto wall plate (not supplied) and secure using two
M5 x 25 mm phillips screws ( F).
NOTE: Don’t fully tighten M5 x 25 mm phillips screws (F) until after Step 3
2
F
C
B
Wall Plate
(Not supplied)
High Shelf Position Low Shelf Position
E
C
C
Wall Plate
(Not supplied)
Wall Plate
(Not supplied)
B
B
Secure adjustment brackets ( D) to right and left vertical supports (B and C) using eight M5 x 16 mm phillips screws (E).
Position right and left vertical supports ( B and C) in desired location then tighten M5 x 25 mm phillips screws (F).
3
D
D
E
F
F
