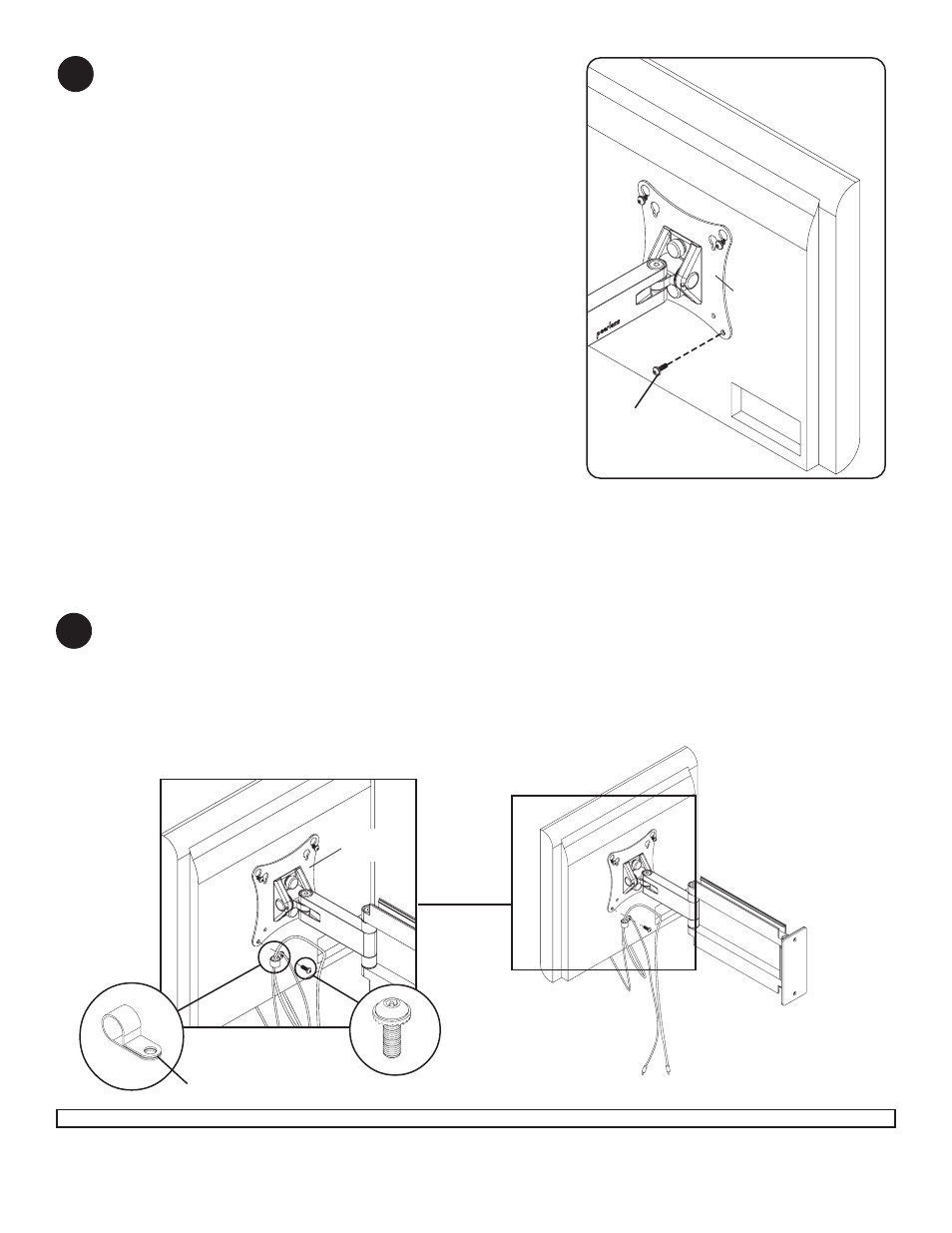

Route cords through center of cord management clip. Next, attach cord management clip to adapter plate using M4
screw (AA) as shown in detail 1. Tighten all four screws (AA) using security allen wrench (DD).
Note: A cord management clip was added for additional cords. If you want to use this added clip, remove the
opposite bottom screw and repeat this step on opposite side of adapter plate.
3
detail 1
Insert one M4 screw (AA) through bottom hole of
adapter plate as shown in figure 2.1. 2
ADAPTER
PLATE
AA
© 2006 Peerless Industries, Inc. All rights reserved.
Peerless is a registered trademark of Peerless Industries, Inc.
All other brand and product names are trademarks or registered trademarks of their respective owners.
CORD MANAGEMENT
CLIP
AA
fig. 2.1
ADAPTER
PLATE
