ISSUED: 08-12-04 SHEET #: 128-9152-1
Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
2 of 2

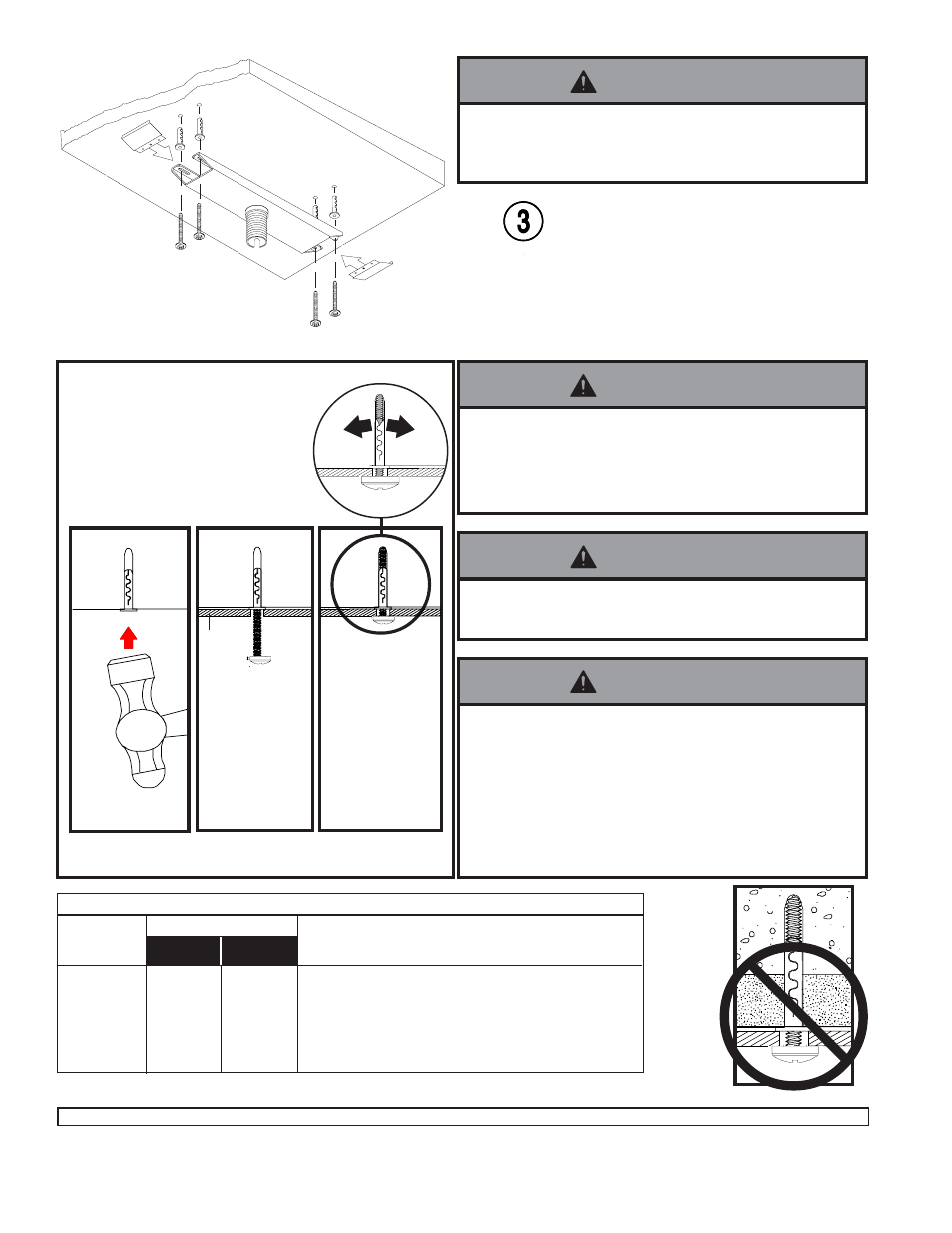

For Concrete Ceilings drill four 1/4" (6 mm)
dia. holes to a minimum depth of 2.5" (64 mm).
Concrete must be 2000 psi density minimum.
Insert anchors in holes flush with ceiling as
shown (left). Place ceiling plate over anchors
and secure with #14 x 2.5" (6 mm x 65 mm)
wood screws. Tighten all fasteners
.
end cap
STEP 1: Hammer
in concrete anchor. STEP 2: Tighten to 80 in • lb (9 N.M.)
maximum torque to expand anchors.
Cross Section: Attachment
to a concrete ceiling.
CONCRETE ANCHOR
INSTALLATION
concrete
ceiling
Concrete Wood
Compatible Jumbo Mount Models
Max. Load Capacity
CEILING PLATE FOR JUMBO MOUNTS - SPECIFICATIONS
300 lb 300 lb
(137 kg) (137 kg)
Model
Numbers
CMJ 470W
CMJ 480W
CMJ 490W
JM 2630S, JM 2640S, JM 2640DS, JM 2650S, JM
2650DS, JM 2655S, JM 2660S, JM 2665S, JM
2670S, JM 2675S
© 2004 Peerless Industries, Inc. All rights reserved.
Peerless is a registered trademark of Peerless Industries, Inc.
All other brand and product names are trademarks or registered trademarks of their respective owners.
• Installer must verify that the ceiling will safely support
four times the combined weight of all attached equip-
ment and hardware.
WARNING
• Tighten wood screws firmly, but do not overtighten.
Overtightening can damage the screws greatly reduc-
ing their holding power.
• Never tighten in excess of 80 in • lb (9 N.M.).
WARNING
ceiling
plate
• Concrete anchors are not intended for attachment to
concrete ceiling covered with a layer of plaster,
drywall, or other finishing material. If mounting to
concrete ceiling covered with plaster/drywall is un-
avoidable, plaster/drywall (up to 5/8" thick) must be
counterbored. If plaster/drywall is thicker than 5/8",
custom fasteners must be supplied by installer.
WARNING
• Weight of TV or monitor not to exceed maximum load
capacity.
WARNING
CUTAWAY VIEW
