ISSUED: 07-27-07 SHEET #: 124-9093-2 02-25-08 3 of 3
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

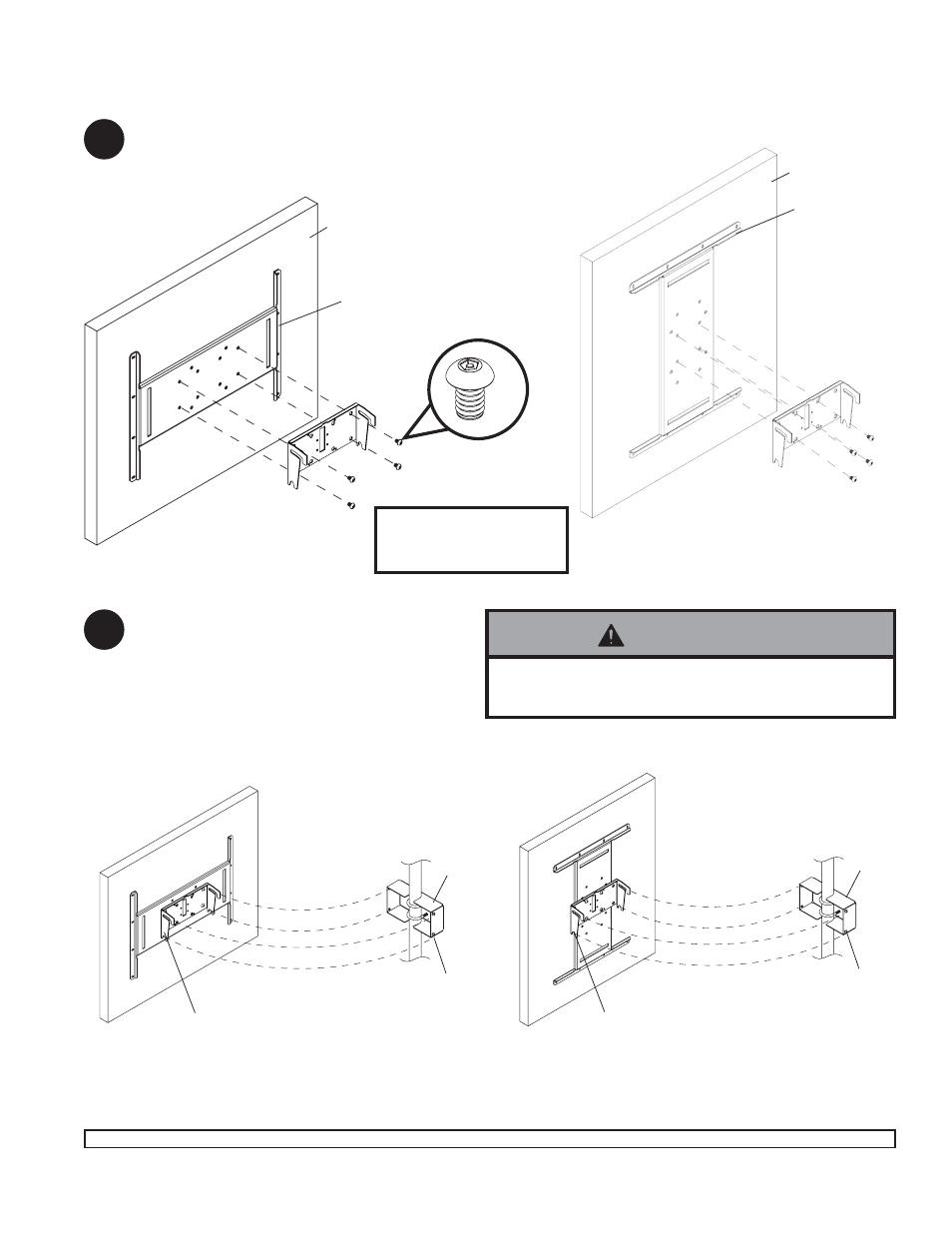

Hang tilt bracket (B) onto mounting box (A). Adjust
tilt as desired and tighten four
M10 x 1.5 x 15 mm penta-pin screws (C) securely
using M10 penta-pin tool (D).
C
Attach tilt bracket (B) to adapter plate using four M10 x 15 mm penta-pin screws (C) in accordance with
appropriate drawing below. Tighten using M10 penta-pin tool (D).
C
B
NOTE: Refer to adapter plate instruction sheet for attachment of adapter plate to plasma before proceeding with step 2.
LANDSCAPE
LANDSCAPE PORTRAIT
LANDSCAPE PORTRAIT
B
A
B
C
ADAPTER PLATE
ADAPTER PLATE
PLASMA SCREEN
PLASMA SCREEN
NOTE: Screen and adapter
plate may appear different
than illustrated.
• For a safe assembly be sure to fully tighten four
screws (C).
WARNING
2
Installation of Plasma Screens and 30" or Larger LCD Screens
3
C
A
B
