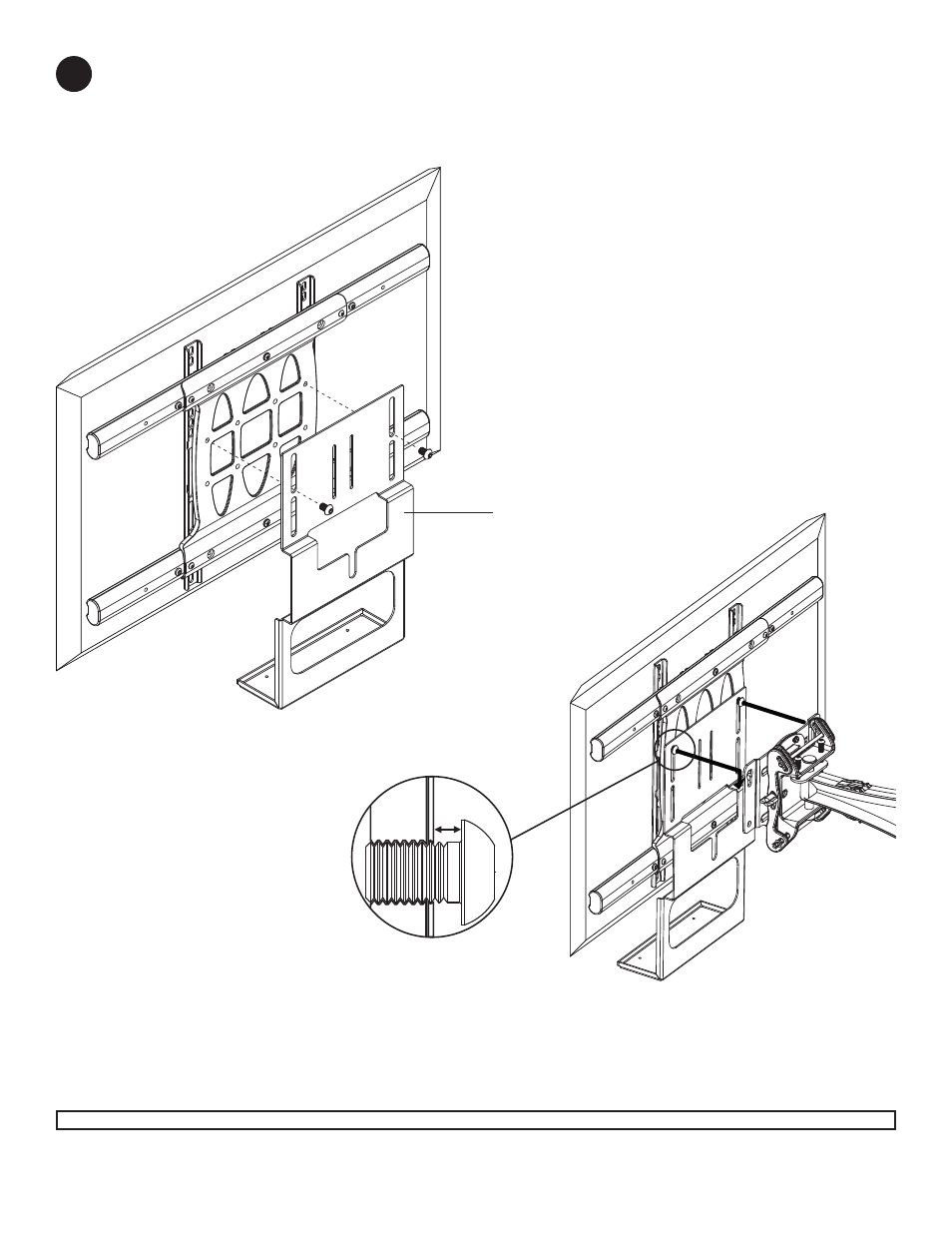

Remove two M10 x 15 mm socket screws from universal adapter bracket. Hand thread two M10 x 15 mm
socket screws through top slots of accessory bracket (A) into top holes of universal adapter bracket as shown in
fi gure 3.1 leaving 1/8" of exposed thread as shown in detail 1.
Hook socket screws onto universal adapter bracket as shown in fi gure 3.2.
3
fi g 3.1
fi g 3.2
1/8"
DETAIL 1
A
