9 of 13 ISSUED: 11-09-10 SHEET #: 125-9154-4 12-21-10
support bracket
(supplied with Marsh Board)
support bracket
(supplied with Marsh Board)

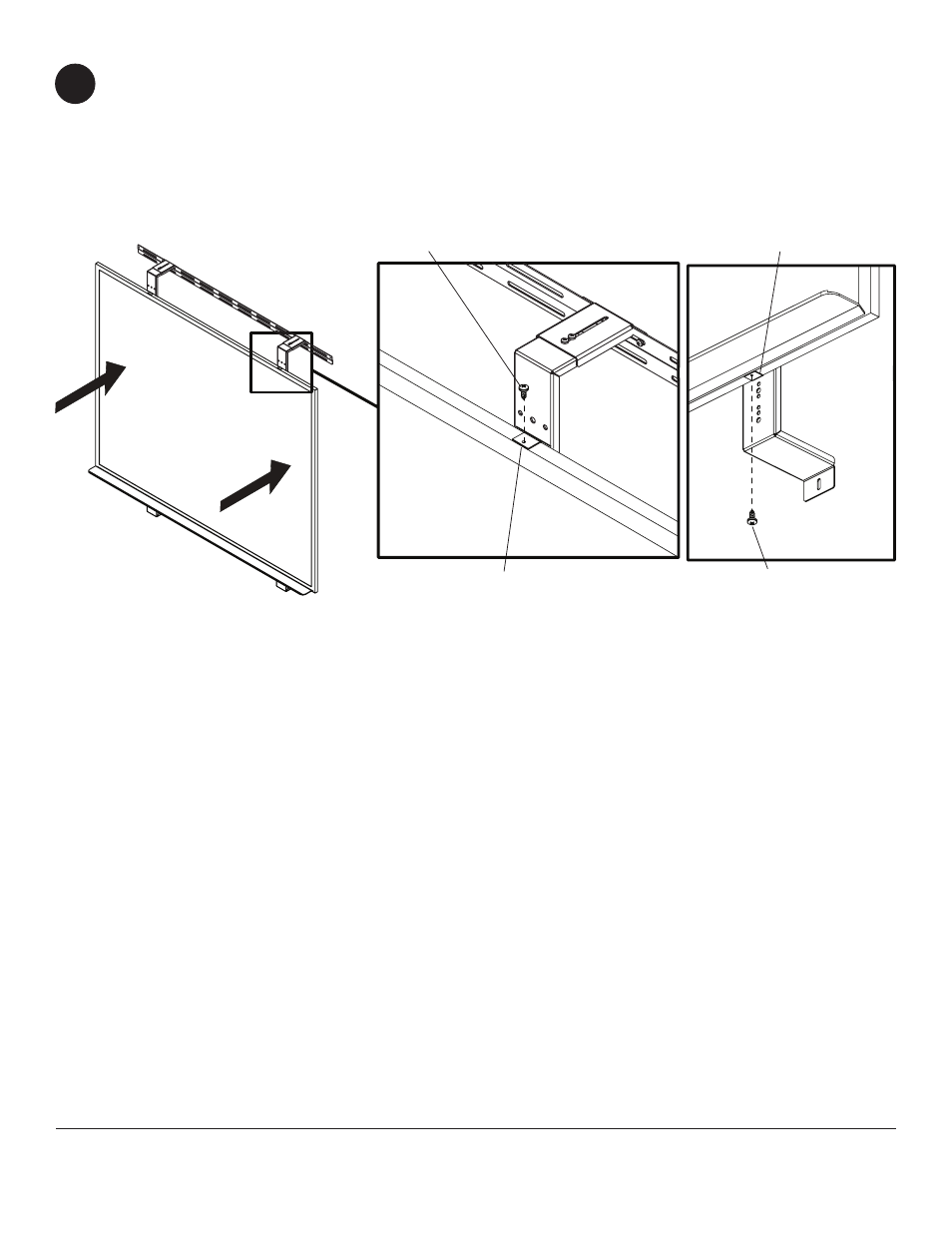

Position Marsh Board onto support brackets (supplied with Marsh Board) and align top of board with marked line on
vertical support as shown below.
Fasten two support brackets (supplied with Marsh Board) to Marsh Board using four support fasteners
(supplied with Marsh Board) on top and bottom as shown below.
support fastener
(supplied with Marsh Board)
support fastener
(supplied with Marsh Board)
TOP BOTTOM
7
