11 of 13 ISSUED: 11-09-10 SHEET #: 125-9154-4 12-21-10
O

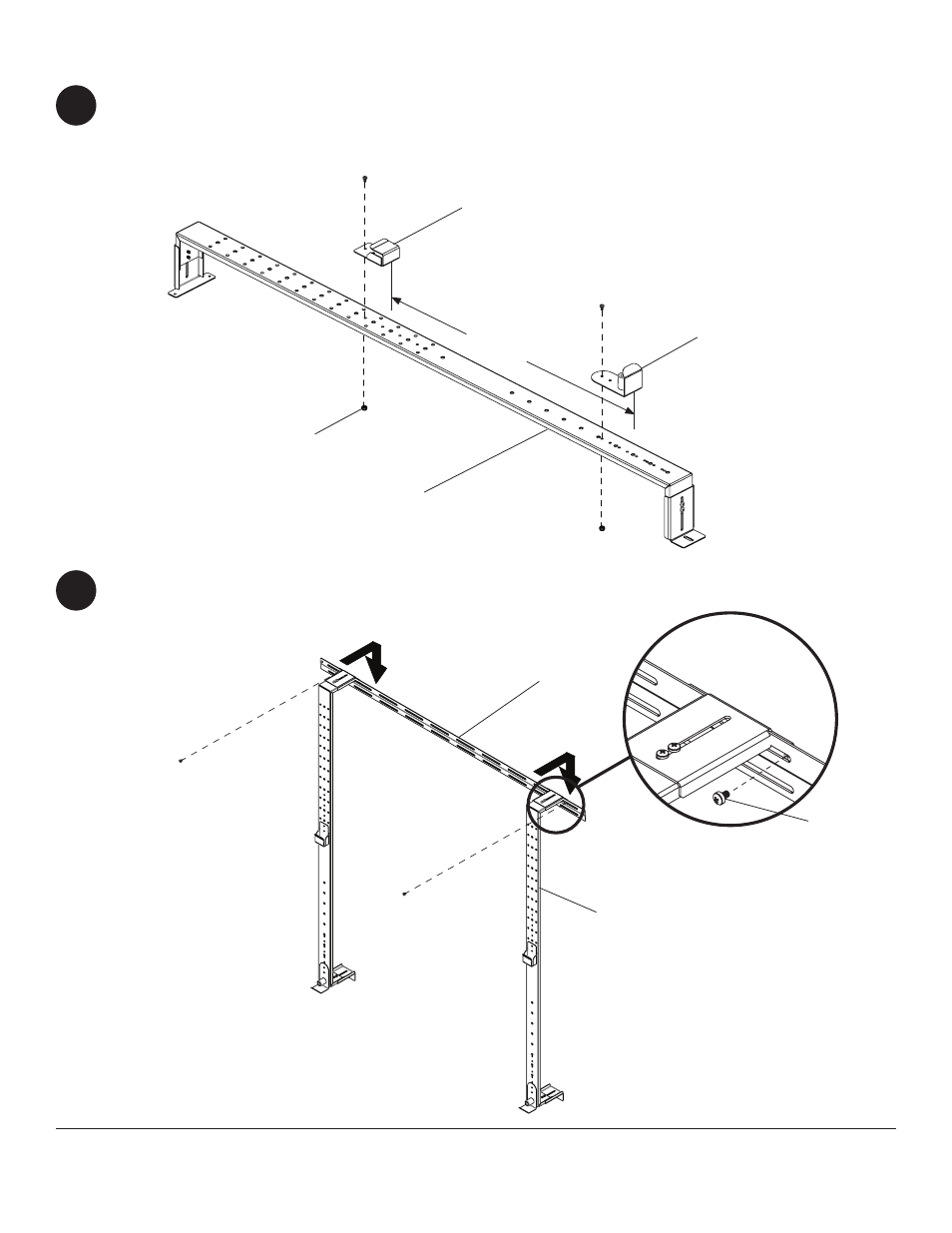

4 Hook vertical brackets ( B) to wall bracket (A) and secure using two M5 x 8 mm phillips screws ( O)
as shown in detail 7.
M
B
Top Support Bracket
(supplied with ActivBoard)
Bottom Support Bracket
(supplied with ActivBoard)
3 Fasten top and bottom support bracket (supplied with ActivBoard) to vertical bracket ( B) using two
M6 x 12 mm phillips screws ( M), and M6 nylock nuts (L) as shown below. Repeat using second vertical bracket (B).
NOTE: Be sure to mount brackets 27.9" apart.
L
A
B
ActivBoard
27.9"
(708 mm)
DETAIL 7
O
