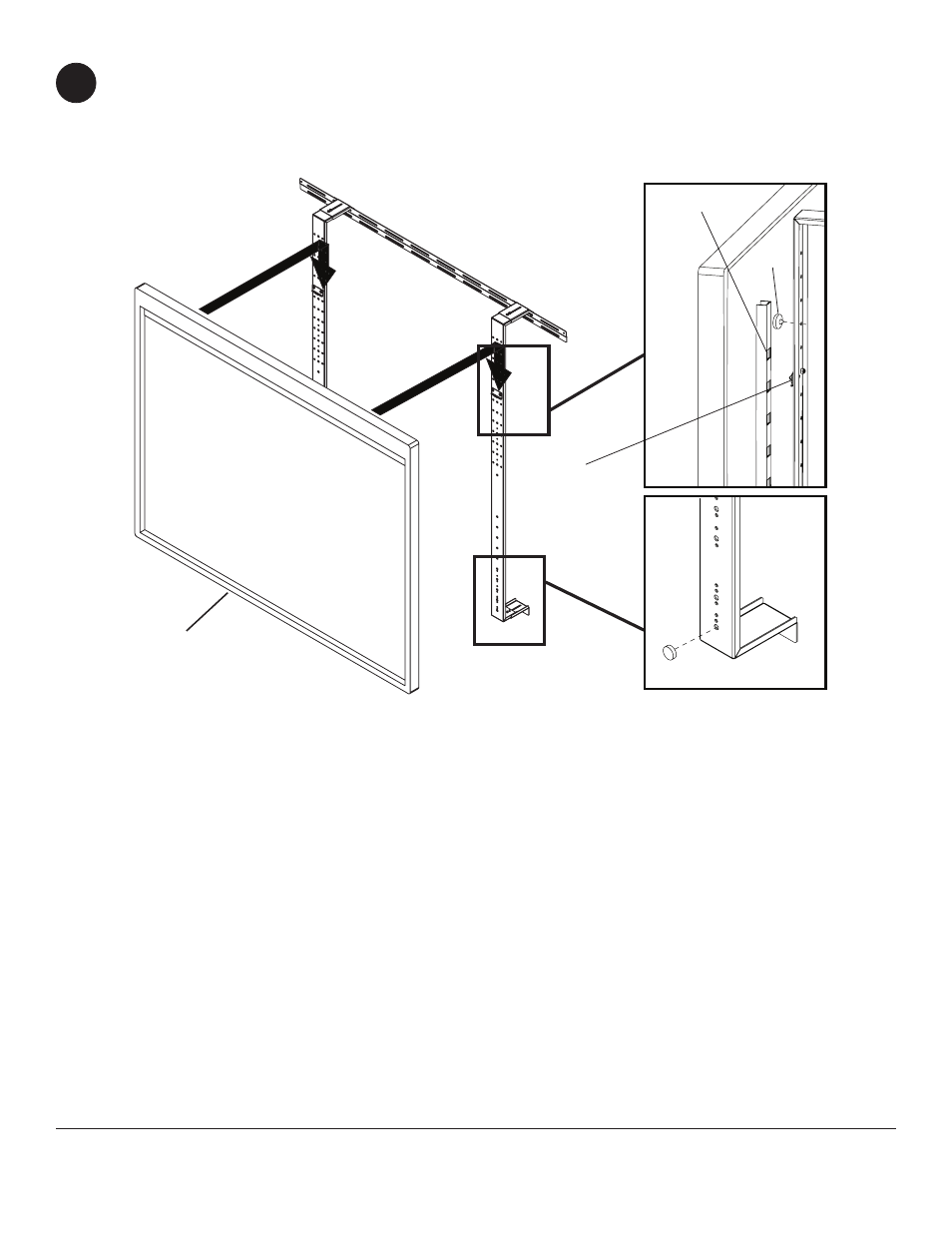

Press four rubber pads ( N) into center holes on top and bottom of vertical supports (B) to stabilize
board as shown below. Make sure rubber pads ( N) line up with existing Hitachi brackets on back of
board.
Hook Hitachi rail cutouts onto Hitachi bracket at desired height as shown below.
5
TOP
BOTTOM
Hitachi Starboard
N
N
Cutouts
Hitachi bracket
(supplied with
Hitachi Starboard)
SKIP TO PAGE 13
