Peerless-AV IWB600-2SB - Installation - Manual (Page 2)

2 of 13 ISSUED: 11-09-10 SHEET #: 125-9154-4 12-21-10

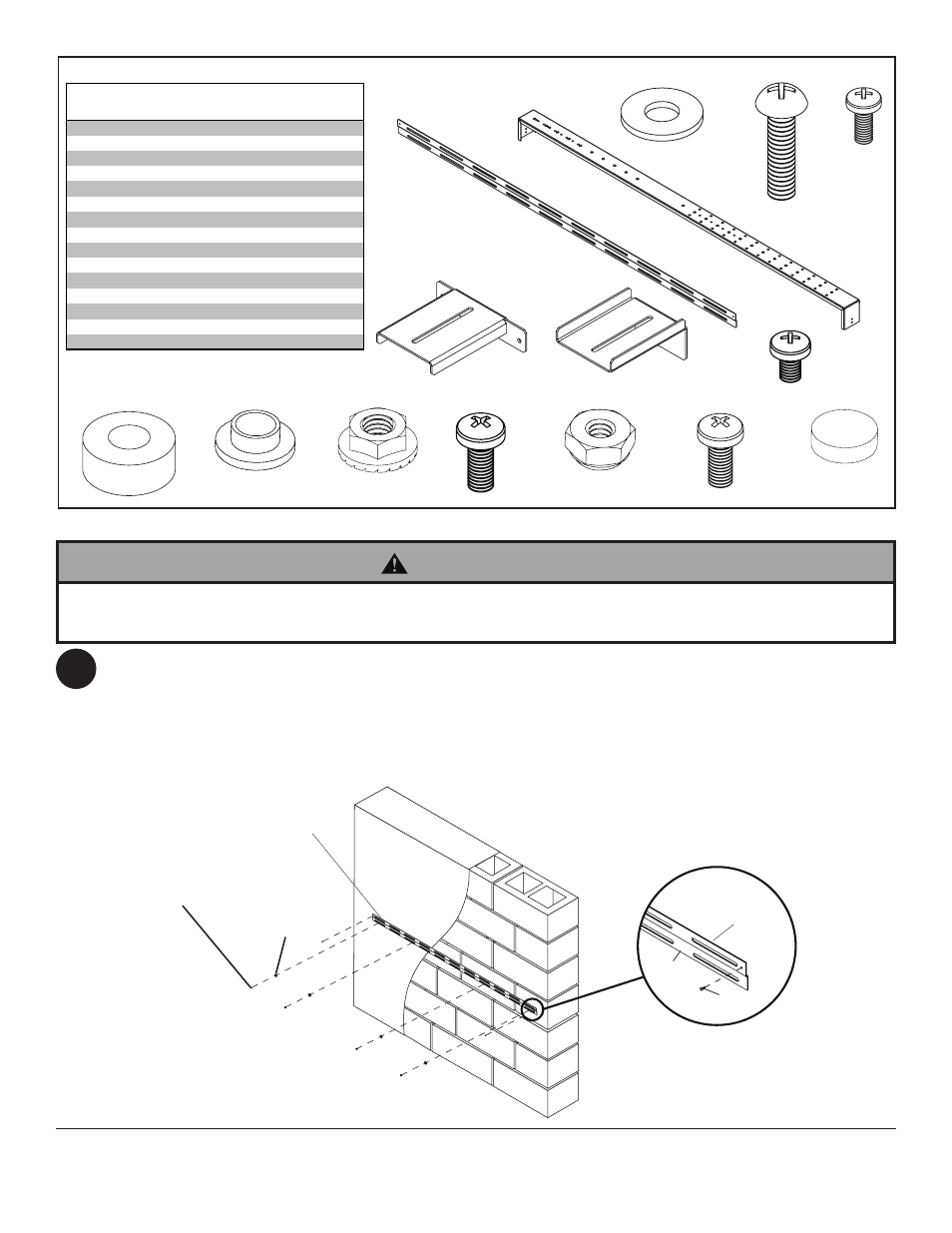

PARTS LIST
Description Qty. Part #
A wall bracket 1 095-4652
B vertical bracket 2 095-4683
C 1/4" flat washer 6 540-9444
D 1/4-20 x 1" phillips screw 4 510-9110
E M4 x 6 mm pphillips screw 2 520-2032
F top depth adjusting bracket 2 095-4685
G .320 ID x 1 OD x .375 spacer 4 540-2084
H bottom depth adjusting bracket 2 095-4684
I plastic bushing 4 540-0087
J M5 serrated flanged lock nut 4 530-2042
K M5 x 12 mm phillips screw 4 520-2039
L M6 nylock nut 4 530-9334
M M6 x 12 mm phillips screw 4 520-2039
N rubber pad 4 590-1124
O M5 x 8 mm phillips screw 10 520-2167
Installation to Wall
NOTE: Make sure flange of wall bracket is located on top as shown in detail 1
Be sure wall bracket (
A) is level and in desired position. Then use wall bracket (A) as a template to mark center
of four mounting holes. Drill four mounting holes. Attach wall bracket ( A) to mounting surface using four screws
provided by installer and four 1/4 washers ( C) if required. Once secure, wall bracket (A) will be flush with the top of
the vertical bracket ( B). Fasten two M4 x 6 mm phillips screws ( E) into wall bracket ( A) .
NOTE: Vertical brackets (B) may be used to determine location of wall bracket (A).
A
• Installer must verify that the supporting surface will safely support the combined load of the equipment and all
attached hardware and components.
WARNING
1
Fasteners Supplied by Installer
C
Flange
NOTE: Read instruction sheet before you start installation and assembly.
NOTE: Some parts may appear slightly
different than illustrated
A B C D E
F
G
H
J
Description Qty. Part #
A wall bracket 1 095-4652
B vertical bracket 2 095-4669
C 1/4 washer 6 540-9444
D 1/4 - 20 x 1 phillips screw 4 510-9110
E M4 x 6 mm phillips screw 2 520-2032
F #10 -32 x 3/8 thumb screw 2 560-2107
G .320 ID x 1 OD x .375 spacer 4 540-2084
H plastic bushing 4 540-0087
I #10 flat washer 2 540-9442
J M5 serrated flanged lock nut 4 530-2042
K M5 x 12 mm phillips screw 4 520-2008
L M6 nylock nut 4 530-9334
M M6 x 12 mm phillips screw 4 520-2039
N rubber pads 4 590-1124
Parts List
Description Qty. Part #
A wall bracket 1 095-4652
B vertical bracket 2 095-4669
C 1/4 washer 6 540-9444
D 1/4 - 20 x 1 phillips screw 4 510-9110
E M4 x 6 mm phillips screw 2 520-2032
F #10 -32 x 3/8 thumb screw 2 560-2107
G .320 ID x 1 OD x .375 spacer 4 540-2084
H plastic bushing 4 540-0087
I #10 flat washer 2 540-9442
J M5 serrated flanged lock nut 4 530-2042
K M5 x 12 mm phillips screw 4 520-2008
L M6 nylock nut 4 530-9334
M M6 x 12 mm phillips screw 4 520-2039
N rubber pads 4 590-1124
Parts List
Description Qty. Part #
A wall bracket 1 095-4652
B vertical bracket 2 095-4669
C 1/4 washer 6 540-9444
D 1/4 - 20 x 1 phillips screw 4 510-9110
E M4 x 6 mm phillips screw 2 520-2032
F #10 -32 x 3/8 thumb screw 2 560-2107
G .320 ID x 1 OD x .375 spacer 4 540-2084
H plastic bushing 4 540-0087
I #10 flat washer 2 540-9442
J M5 serrated flanged lock nut 4 530-2042
K M5 x 12 mm phillips screw 4 520-2008
L M6 nylock nut 4 530-9334
M M6 x 12 mm phillips screw 4 520-2039
N rubber pads 4 590-1124
Parts List
Description Qty. Part #
A wall bracket 1 095-4652
B vertical bracket 2 095-4669
C 1/4 washer 6 540-9444
D 1/4 - 20 x 1 phillips screw 4 510-9110
E M4 x 6 mm phillips screw 2 520-2032
F #10 -32 x 3/8 thumb screw 2 560-2107
G .320 ID x 1 OD x .375 spacer 4 540-2084
H plastic bushing 4 540-0087
I #10 flat washer 2 540-9442
J M5 serrated flanged lock nut 4 530-2042
K M5 x 12 mm phillips screw 4 520-2008
L M6 nylock nut 4 530-9334
M M6 x 12 mm phillips screw 4 520-2039
N rubber pads 4 590-1124
Parts List
I K L
M N
A
DETAIL 1
O
E
