Top Support Bracket

(supplied with ActivBoard)

Bottom Support Bracket

(supplied with ActivBoard)

ActivBoard

5

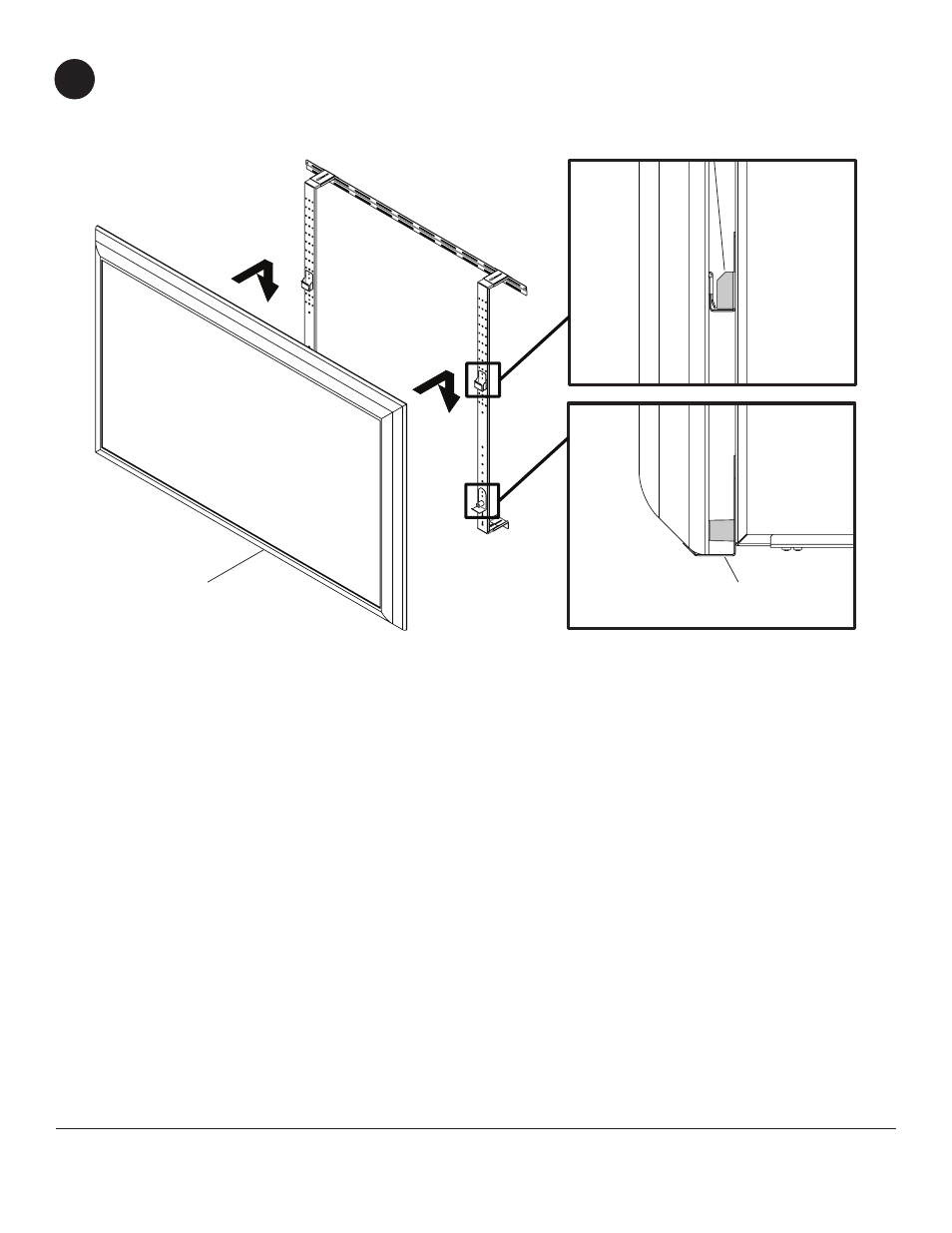

Hook ActivBoard onto top and bottom support bracket (supplied with ActivBoard) as shown in detail 8.

DETAIL 8
