Peerless-AV IWB600-2SB - Installation - Manual (Page 10)

10 of 13 ISSUED: 11-09-10 SHEET #: 125-9154-4 12-21-10
4
O

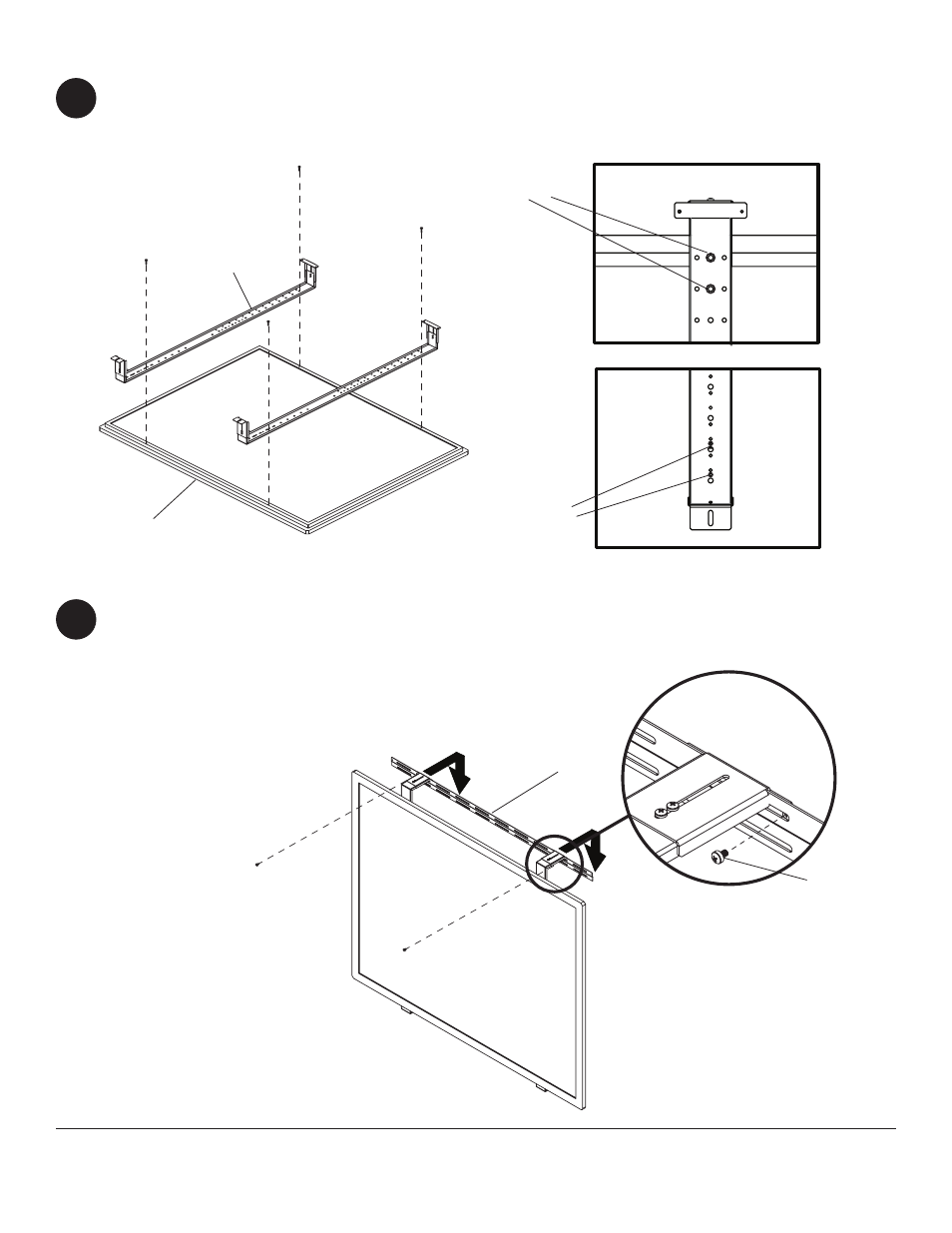

Hook vertical brackets ( B) to wall bracket (A) and secure using two M5 x 8 mm phillips screws ( O)
as shown in detail 6.
Attach vertical brackets ( B) to Interwrite board using four 1/4 - 20 phillips head screws (D) as shown. 3
Interwrite Board
D
B
A
Interwrite Board
SKIP TO PAGE 13
DETAIL 6
O
USE TOP TWO
MOUNTING HOLES
USE BOTTOM TWO
MOUNTING HOLES
