3 of 13 ISSUED: 11-09-10 SHEET #: 125-9154-4 12-21-10
Installation to SMARTboards.........................................................Skip to Page 4
Installation to Hitachi Starboard..................................................Skip to Page 5
Installation to Marsh Board............................................................Skip to Page 7
Installation to Interwrite Board...................................................Skip to Page 10
Installation to ActivBoard.............................................................Skip to Page 11
.
TOP
BOTTOM

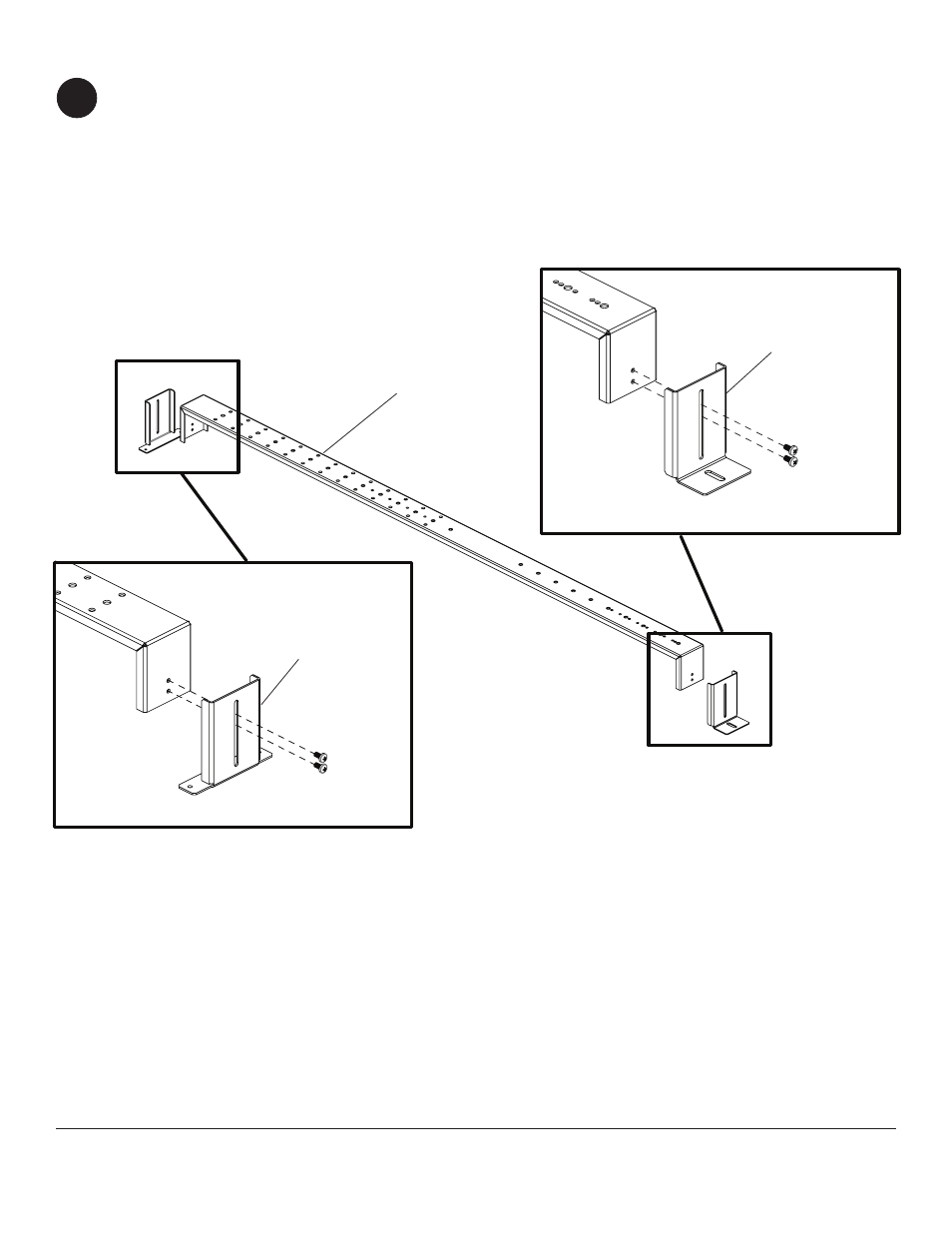

Attaching Top and Bottom Depth Adjusting Brackets
Attach top and bottom depth adjusting brackets ( F and H) onto vertical bracket (B) using four
M5 x 8 mm phillips screws ( O) as shown below.
NOTE: Fully extend and tighten depth adjusting brackets (F and H). Depth can be adjusted after whiteboard is
attached to mount.
Repeat using second vertical bracket ( B) and top and bottom depth adjusting brackets (F and H).
2
F
H
B
O
O
