5 of 13 ISSUED: 11-09-10 SHEET #: 125-9154-4 12-21-10
Hitachi Starboard
M
B
L

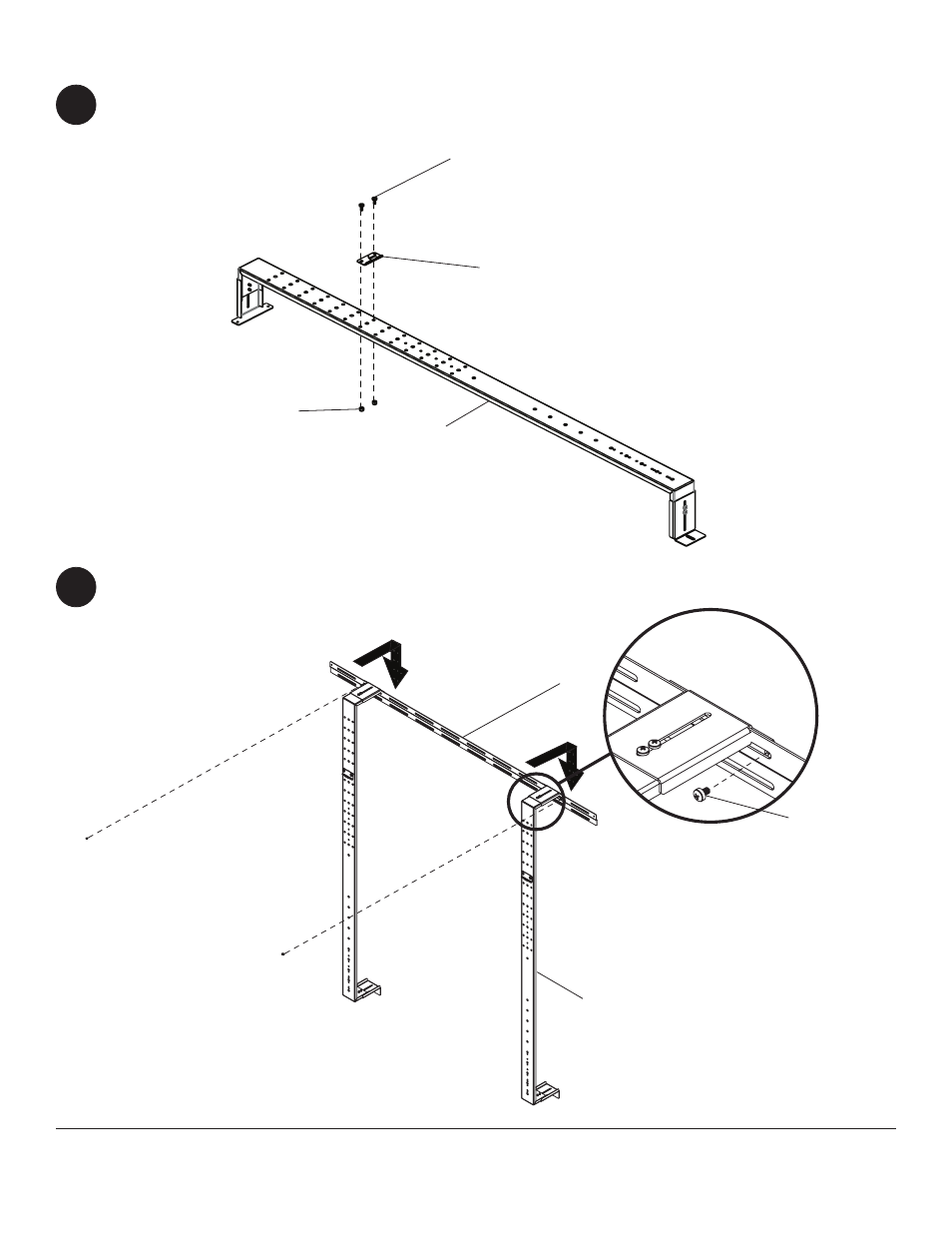

Fasten Hitachi bracket (supplied with Hitachi Starboard) to vertical support ( B) using two M6 x 12 mm phillips
screws ( M) and two M6 nylock nuts (L) as shown below.
Repeat using second vertical support ( B).
3
Hook vertical brackets ( B) to wall bracket (A) and secure using two M5 x 8 mm phillips screws ( O)
as shown in detail 4.
4
(supplied with Hitachi Starboard)
O
B
A
DETAIL 4
O
