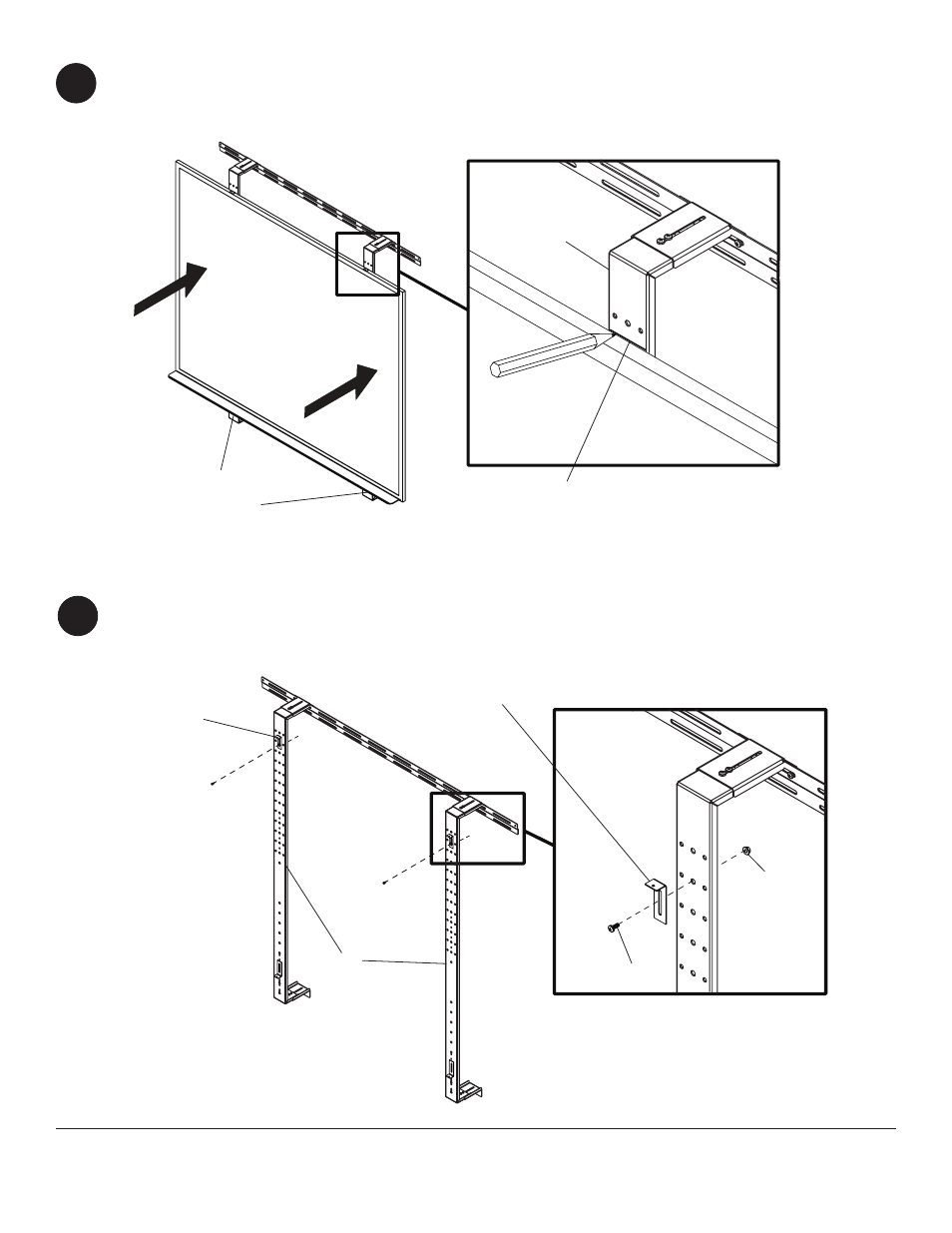

Position Marsh Board onto support brackets (supplied with Marsh Board) and mark top of board as shown below.
Remove Marsh Board.

Fasten two support brackets (supplied with Marsh Board) to vertical supports (

B) using four M5 x 12 mm phillips

screws (

K) and M5 serrated flanged lock nuts (J) as shown below.

support brackets

(supplied with Marsh Board)

support brackets

(supplied with

Marsh Board)

Mark top of board

J

K

B

support brackets

(supplied with

Marsh Board)
