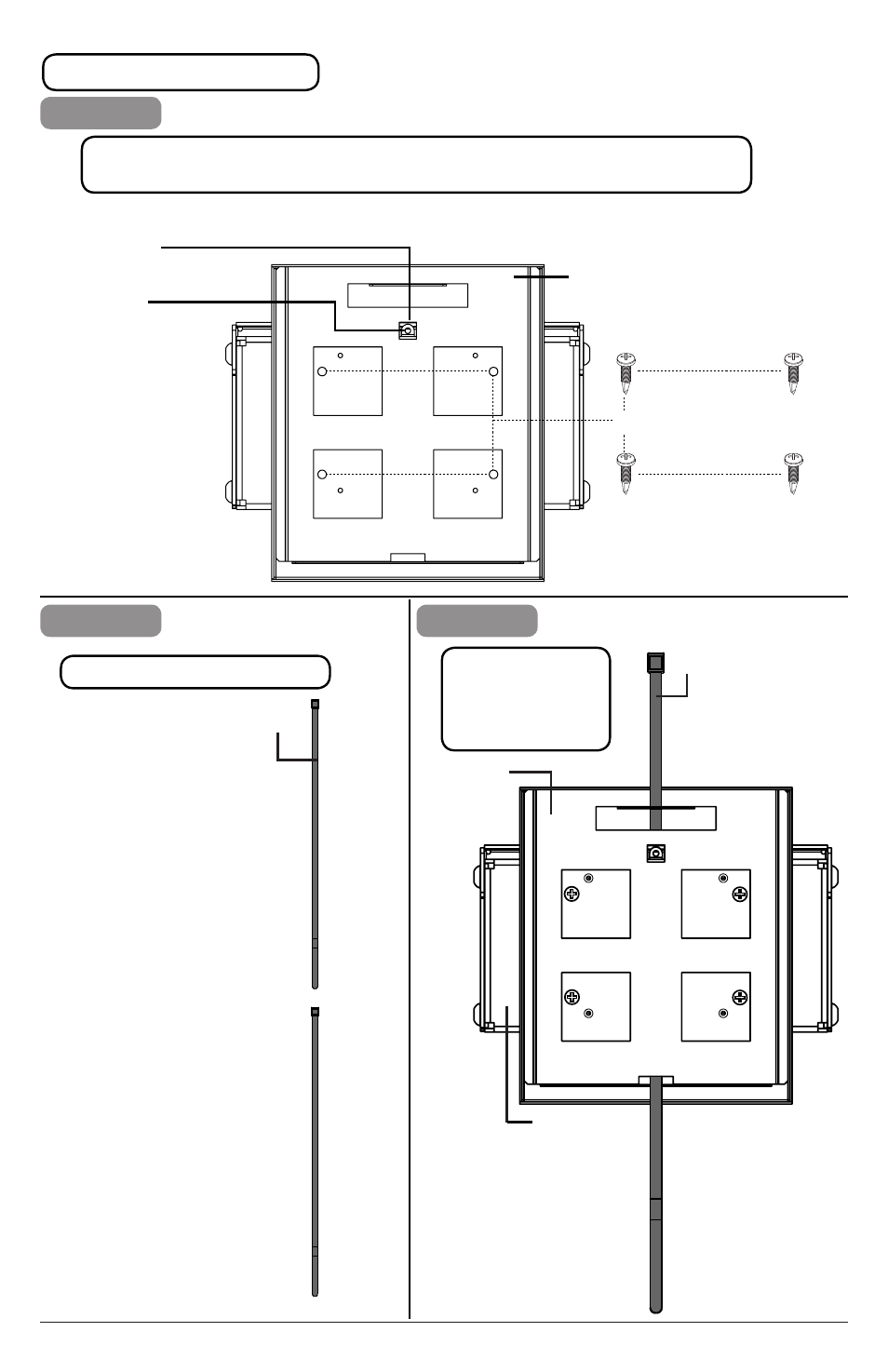

Assemble two cable ties (H).
Feed cable tie
assembly (H)
through computer
box (A).
1
2 3
A
ADJUSTMENT
OPENING
PLCM-2 HOLDING
SCREW
A
G
H
H
PLCM 2
NOT INCLUDED
Center computer box (A) adjustment opening with PLCM-2 holding
screw. Secure computer box with four #10 x 1/2" TEK phillips screws (G).
Mounting DS496 to PLCM-2.
