PowerWalker ViewPower PowerWalker User Manual

Page 48

event, load event, input event, parallel system event and communication event.

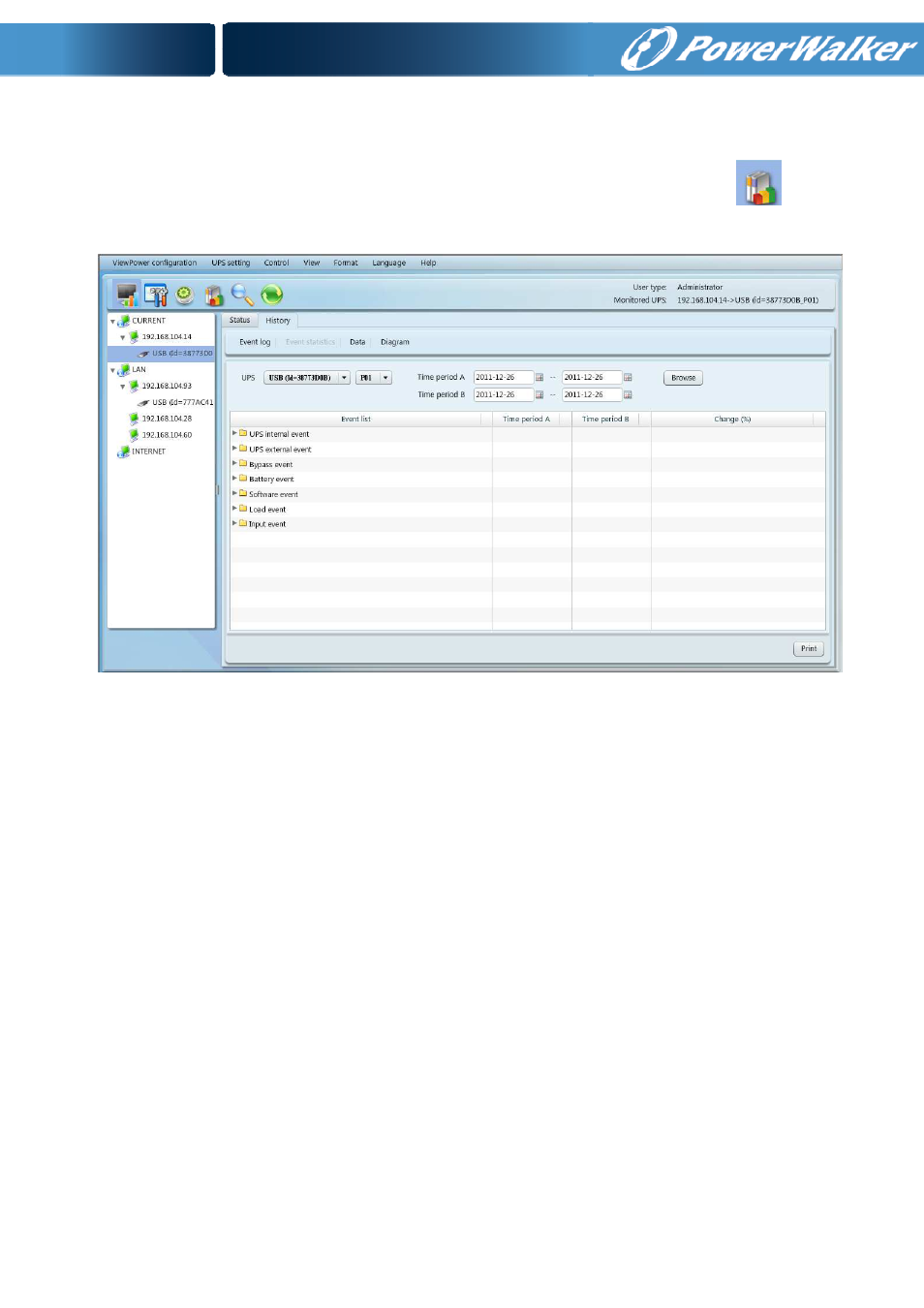

Step 1

Select View >> History >> Event Statistics. Or click shortcut icon

. Refer

to Diagram 5-22.

Diagram 5-22

Step 2

Select UPS from com. port list. Users still can retrieve old data saved in the

software even though the UPS is no longer connected to local system.

Step 3

Select two periods from clicking “calendar” icon. Then click “Browse” button.

The result statistics will be listed in below table according to event types. Refer

to Diagram 5-23.
