is recommended to set only one action in the same time. If multiple actions have been
specified at the same time, some of these actions may be ignored. Any actions which
are not supported by the UPS will be ignored.
Step 1
Select Control >> Battery Self-Test. Refer to Diagram 5-17.

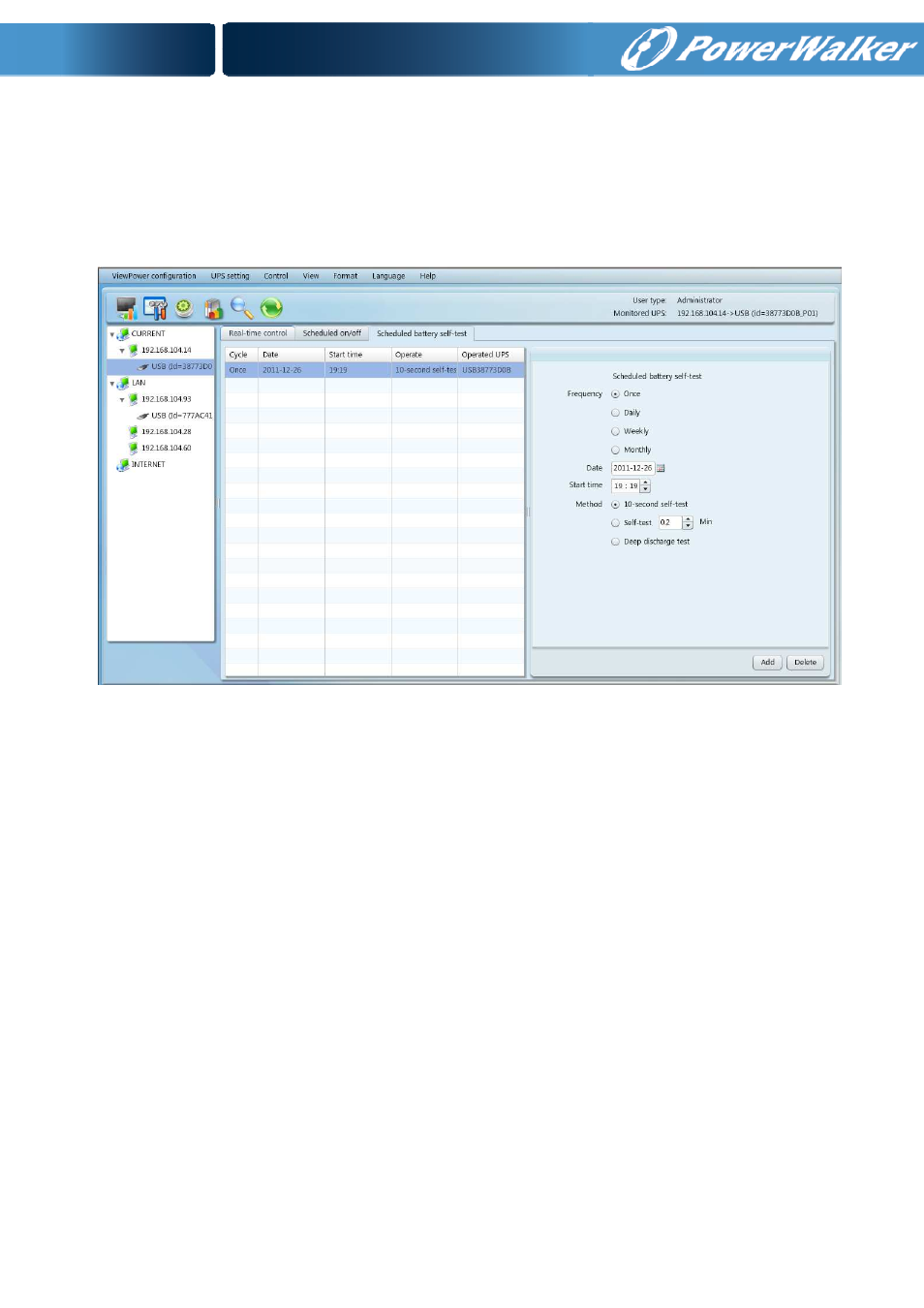

Diagram 5-17
Step 2
Select method and time parameters.
There are three self-test methods:
10-second self-test: Battery will discharge for 10 seconds.
Self-test: Users can set battery discharge time for self-test.
Deep test: This test will let battery discharge until it’s in low battery level.
Step 3
Click “Add” to add task. If task is successfully set, it will display on the task
table on the left-hand side. Select specific task and click “Delete” button to delete
the task.
5.4.
View
5.4.1.
Status
