Basic Operation

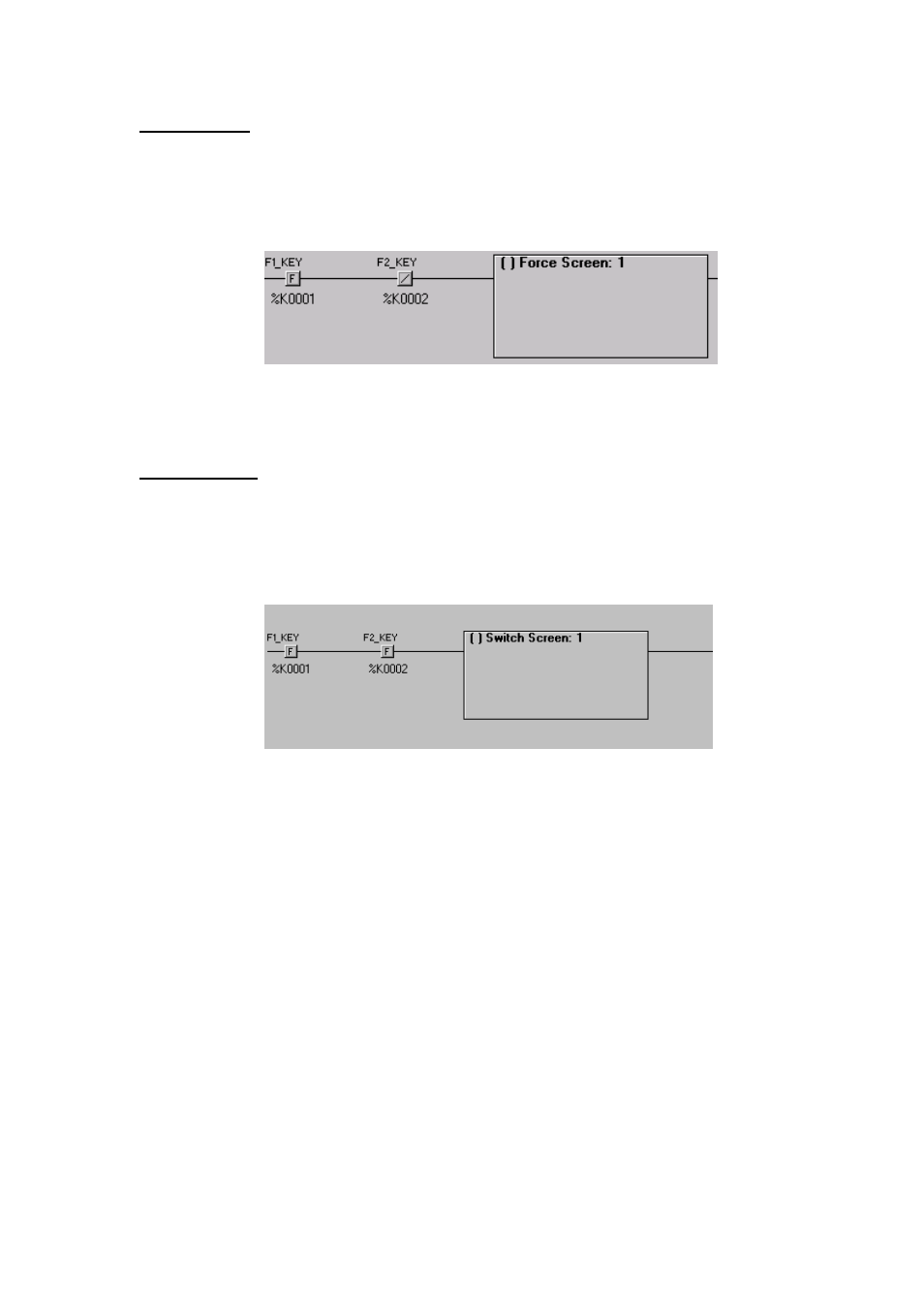

Force Screen:
Displays the screen whilst the conditions to make the contact are met. When the
condition is not met anymore the screen will go back to the previously set screen.
Example 2: Warning Message when a valve is open.
3
When F1_KEY AND NOT F2_KEY are pressed the i will display screen 1. When F1
has been released the
i 3
will display the previously set screen.
Switch Screen:
Changes the display to the desired screen when the condition is met.
When the logical condition is no longer true the selected screen remains on display.
Example 3: Changing screens on a menu selection.
When F1_KEY AND F2_KEY are pressed the
i 3
will display screen 1. When F1 has
been released the i 3
Screen 1 will remain on the display until the next Screen is called.
© IMO Precision Controls ltd. 9
