Off Delay
The Off delay timer provides a delay before switching the output off when the input is
enabled. When the input is removed the timing will begin, when the elapsed time
equals the preset the output will reset.

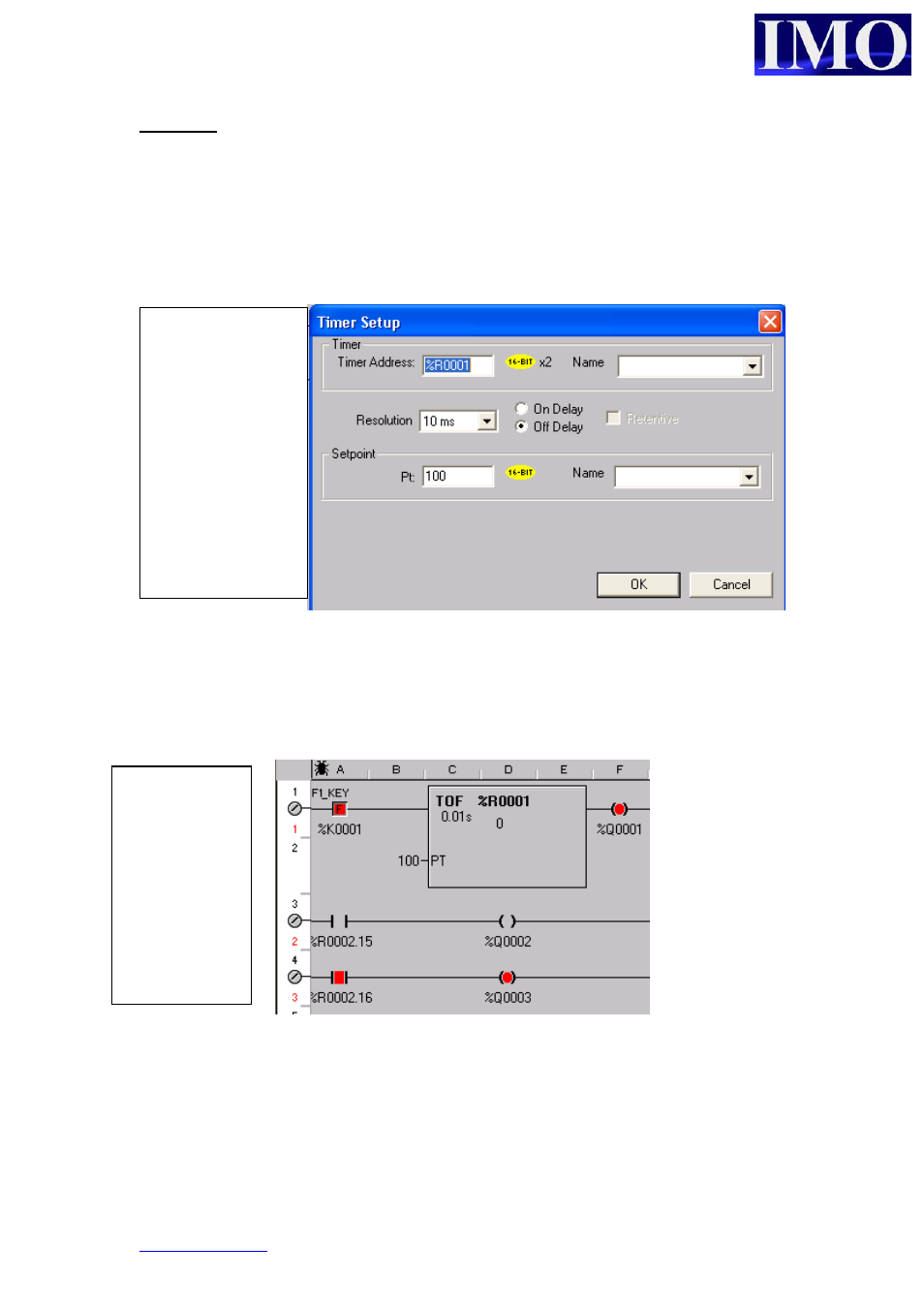

The setup window
is the same as the
previous example
but the “Off
Delay” button is
checked.
Notice that the
Retentive button is
no longer available
Example 5:
This is a 1 second Off-delay Timer. The output (%R0002.16) is energised when the
input (%K0001) is made and will remain energised for 1 second after the input is
removed.
The input to
the timer has
been enabled
and the output
is high.
When the input
is remove the
timing begins.
