Basic Operation

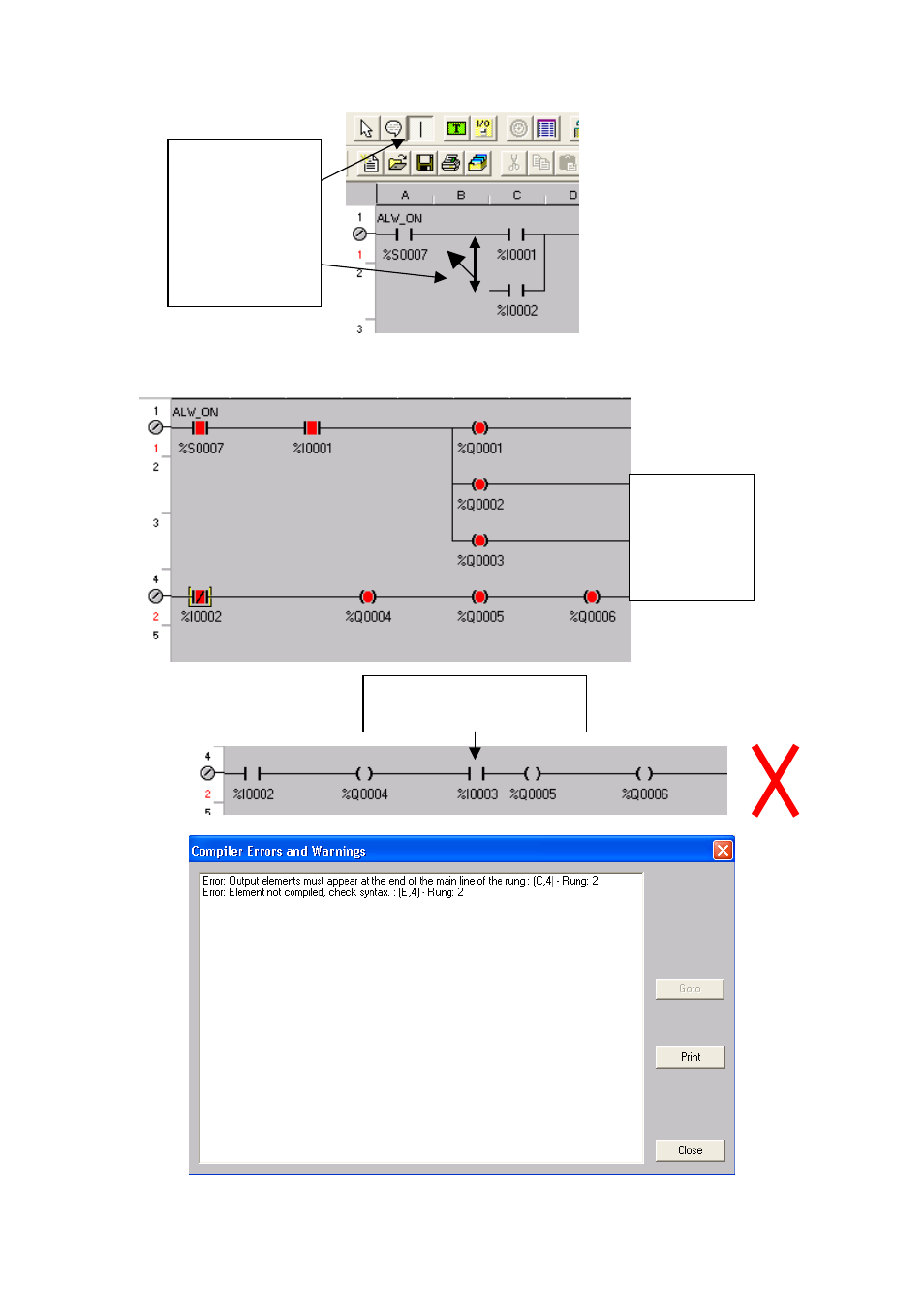

Vertical lines
can be drawn
using the tool.

The tool attaches
to the mouse
icon.


Each rung can have multiple outputs but they must be at the end of the line.

Nested
outputs can
also be put
horizontally.


An input in this position
will cause an error
