Indirect Move Examples

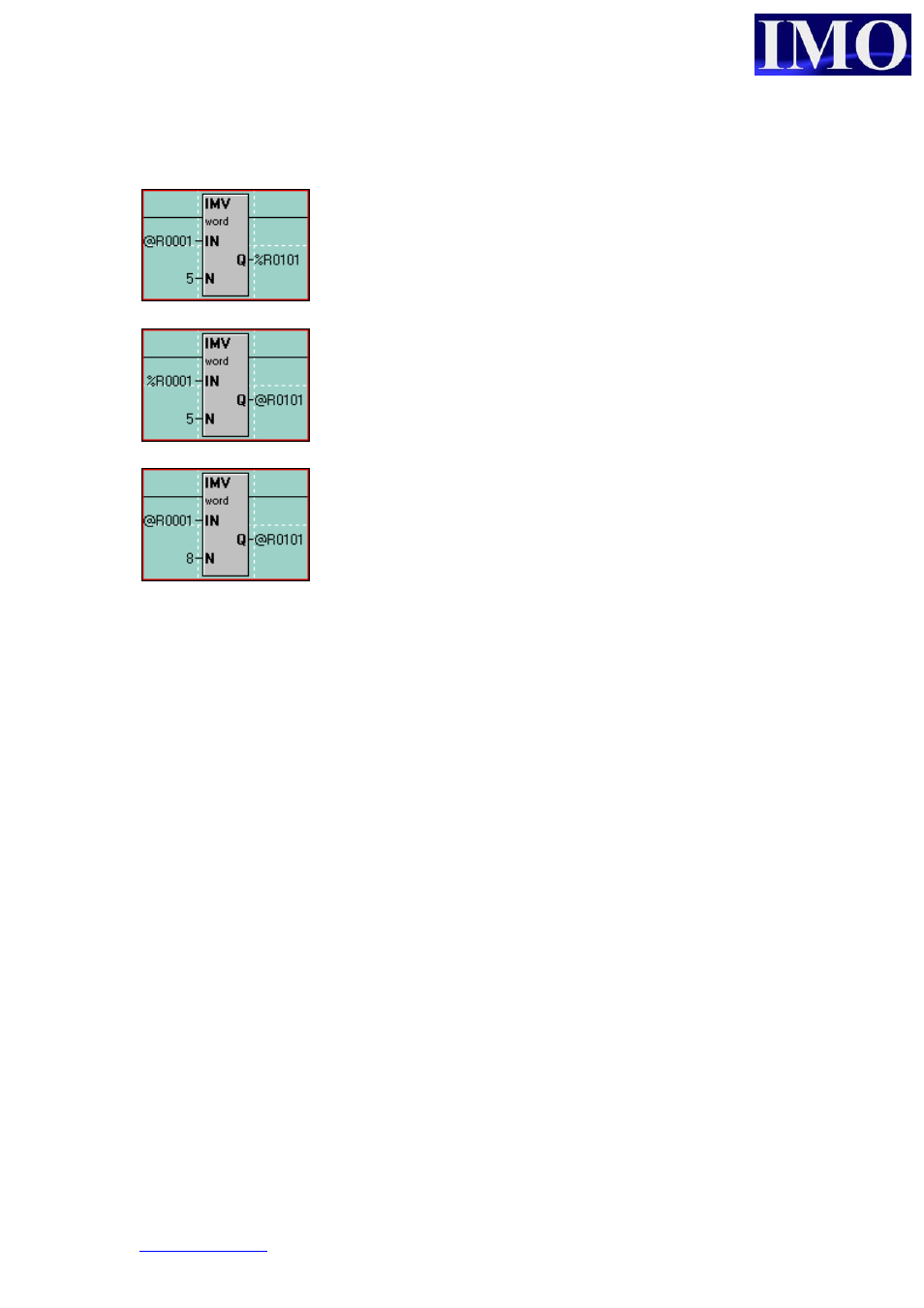

In this example, the IN is specified as Indirect. This means the
controller will look at %R1 and see a value within it. If %R1 has a
value of 501 in it, the controller will go to %R501 to get the source
data. 5 registers will then be moved from %R501-%R505 to
%R101-%R105.
In this example, the Q is specified as Indirect. This means the
controller will look at %R101 and see a value within it. If %R101
has a value of 851, the controller will take the data in %R1-%R5 and
move it into %R851-%R855.
In this example, both the IN and the Q are specified as Indirect. This
means the controller will look at %R1 and see a value. Let’s say it is
241. The controller also looks at the value in %R101. Let’s say it is
341. The controller will then take the values in %R241-%R248 and
move them into %R341-%R348.
