Page 7

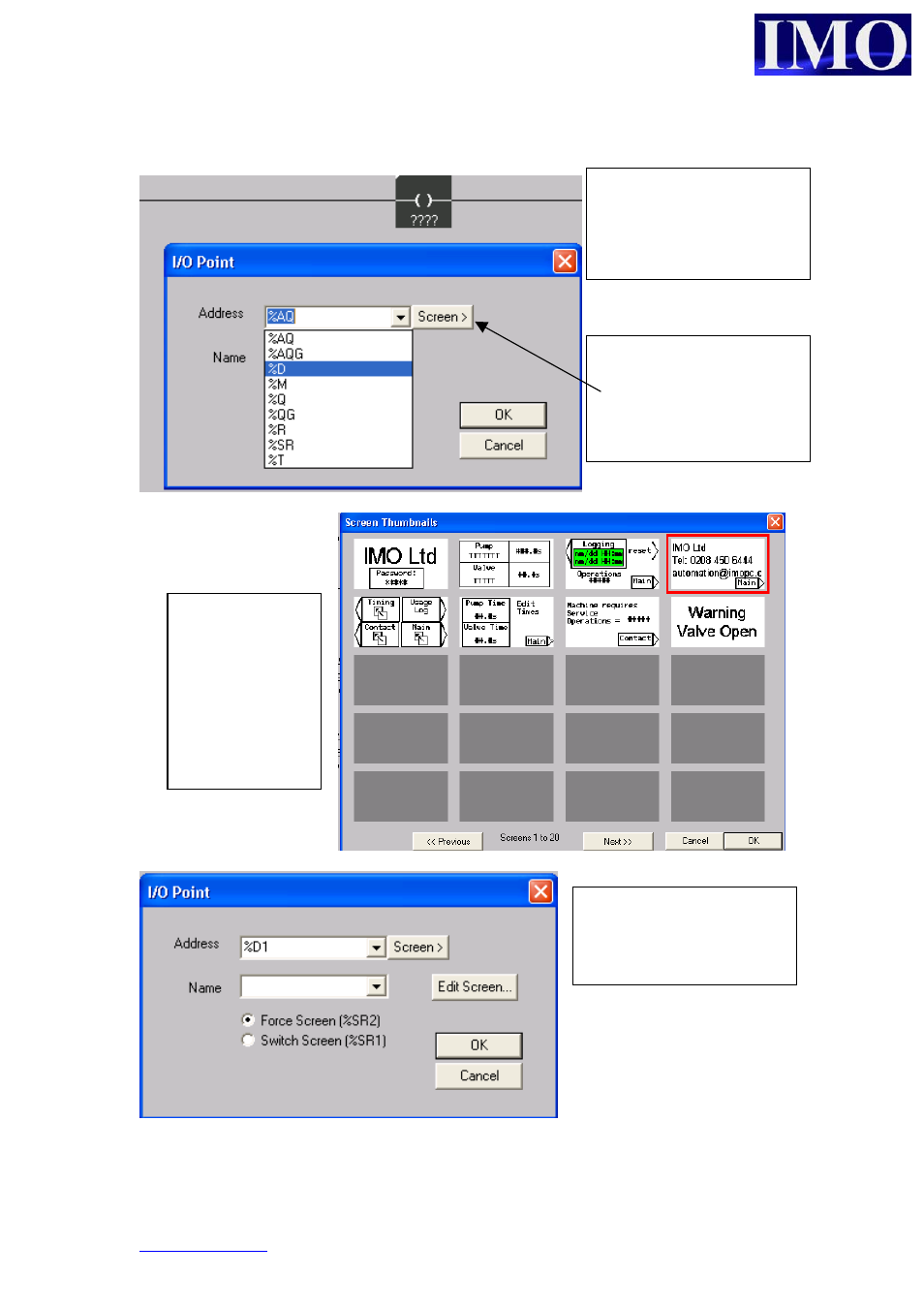

To insert a screen into the ladder logic, select an output coil and click it into the ladder
diagram.

Select %D and then enter
the number for the screen
to display, i.e. %D0001 is
screen 1.

By clicking the screen
button you can choose a
screen from the thumbnail
menu.

The screens
shown were set
up previously. If
no screen has
been set up then
it will be shown
as a blank grey
box.

We can open the screen
editor from this menu
which is covered later in
this document.

There are now two options to choose from which control the way an individual screen
is presented.
