VESR321 family serial servers are enclosed in a DIN rail mountable enclosure and feature LED
indicators, power, Ethernet, serial connectors and a recessed Mode switch.
Package Checklist
VESR321 family serial servers are shipped with the following items included:
VESR321 family serial server module
DIN rail clips and panel mount brackets
Quick Start Guide
CD with User Manual, datasheet and software
VESR321 Enclosures and Mounting.
All VESR321 models are built into similar enclosures. Modules are DIN rail and panel mountable.
LED Indicators
VESR321 Family Serial Servers have a Power LED, a Ready LED and Data LEDs.

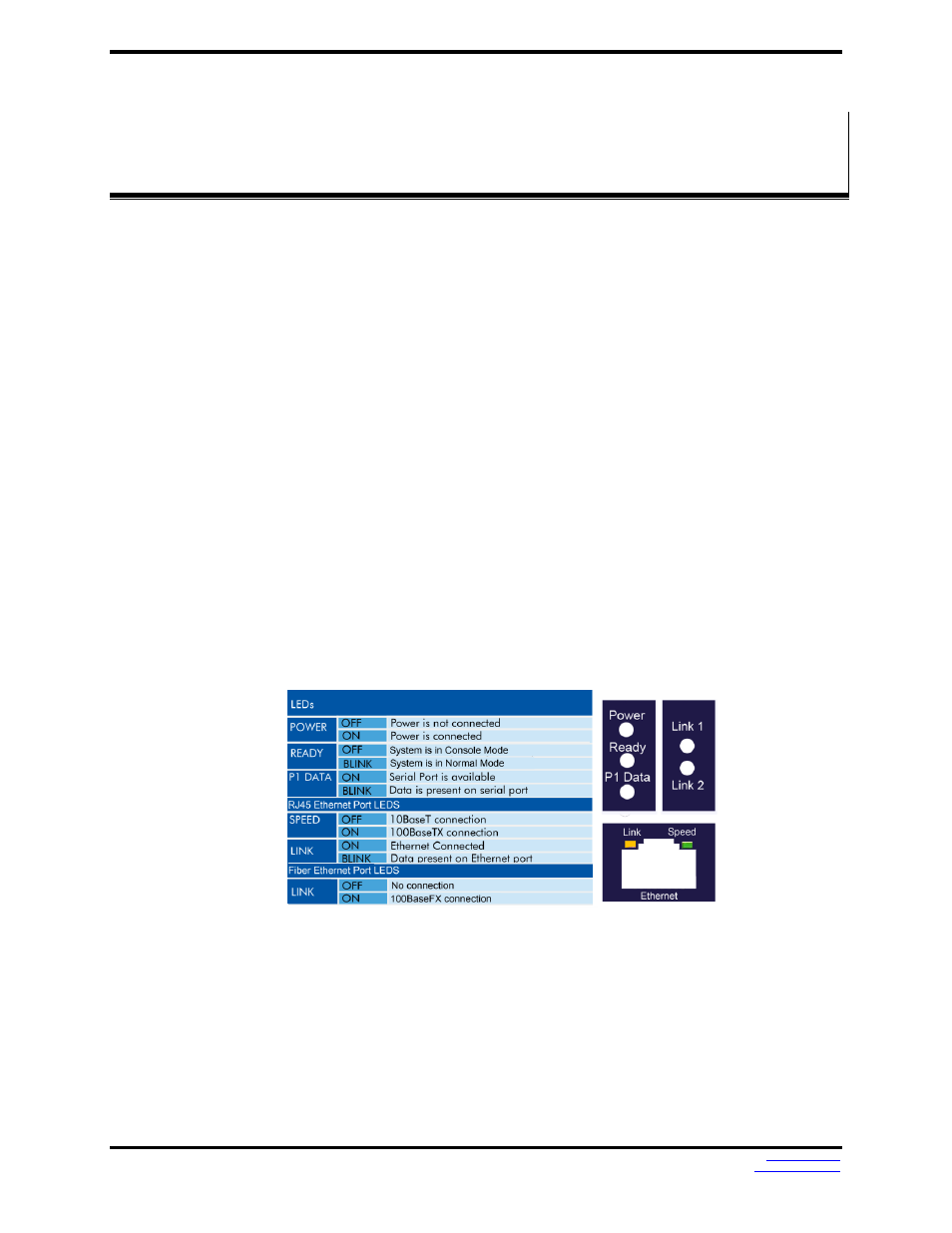

Figure 2. LEDs
Mode Switch
A recessed momentary reset switch is located on the top of the enclosure. To activate the switch,
insert a small plastic tool through the hole in the enclosure and press lightly.
