13
AT29BV040A
0383F–FLASH–05/02

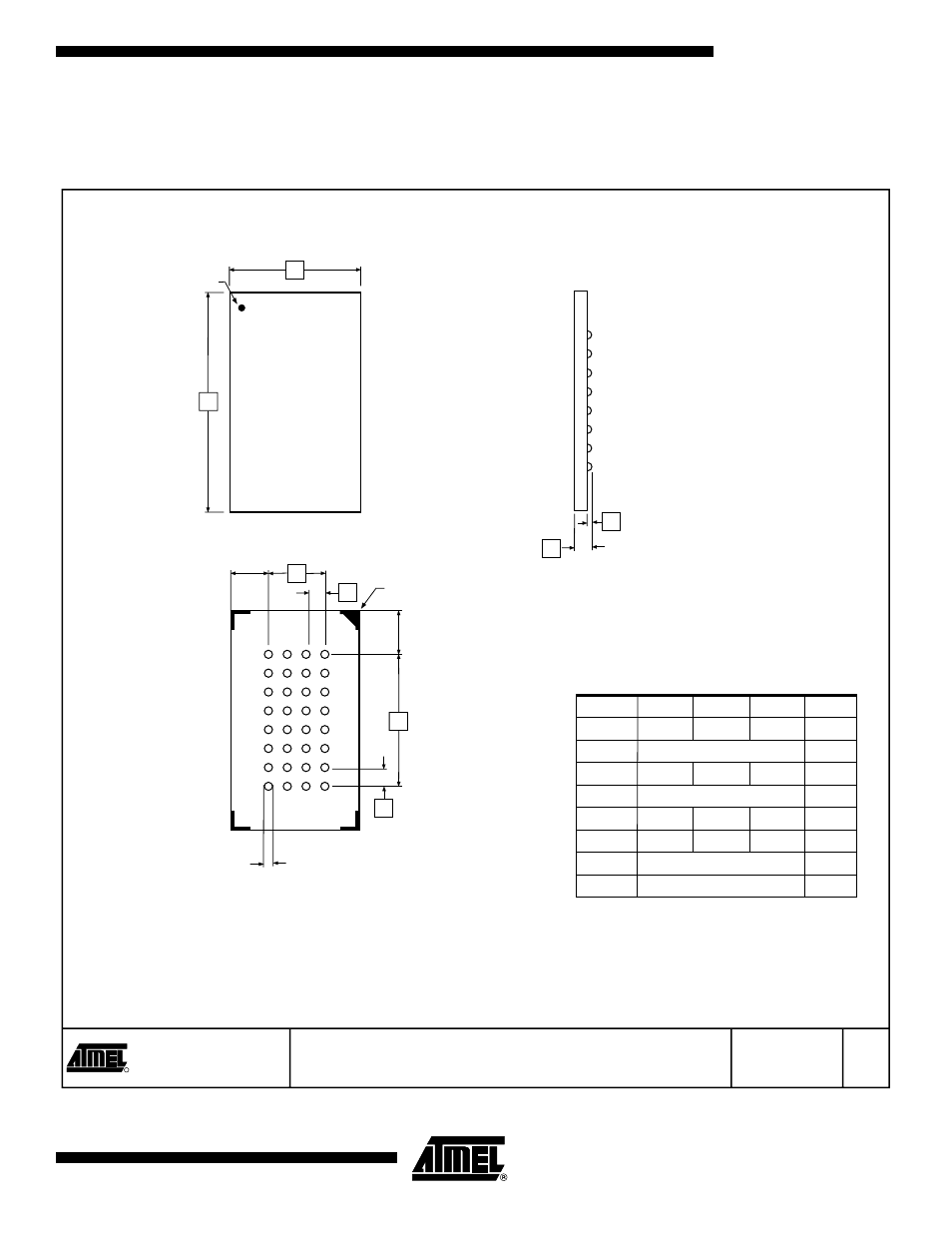

Packaging Information
32C1 – CBGA
2325 Orchard Parkway
San Jose, CA 95131
TITLE DRAWING NO.
R
REV.
32C1, 32-ball (4 x 8 Array), 0.80 mm Pitch, 5.0 x 10.0 x 1.20 mm
Plastic Chip-scale Ball Grid Array Package (CBGA)
A 32C1
2/13/02
Top View
Bottom View
Side View
A
B
C
D
E
F
G
H
1.30 REF
2.20 REF
E
D
A1 Ball ID
4 3 2 1
E1
D1
A
A1
e
e
A1 Ball Corner
Ø b
COMMON DIMENSIONS
(Unit of Measure = mm)
SYMBOL MIN NOM MAX NOTE
E 4.90 5.00 5.10
E1 2.4 TYP
D 9.90 10.00 10.10
D1 5.6 TYP
A – – 1.20
A1 0.25 – –
e 0.80 BSC
b 0.40 TYP
