ATF1508ASV(L)
1408F–PLD–10/02

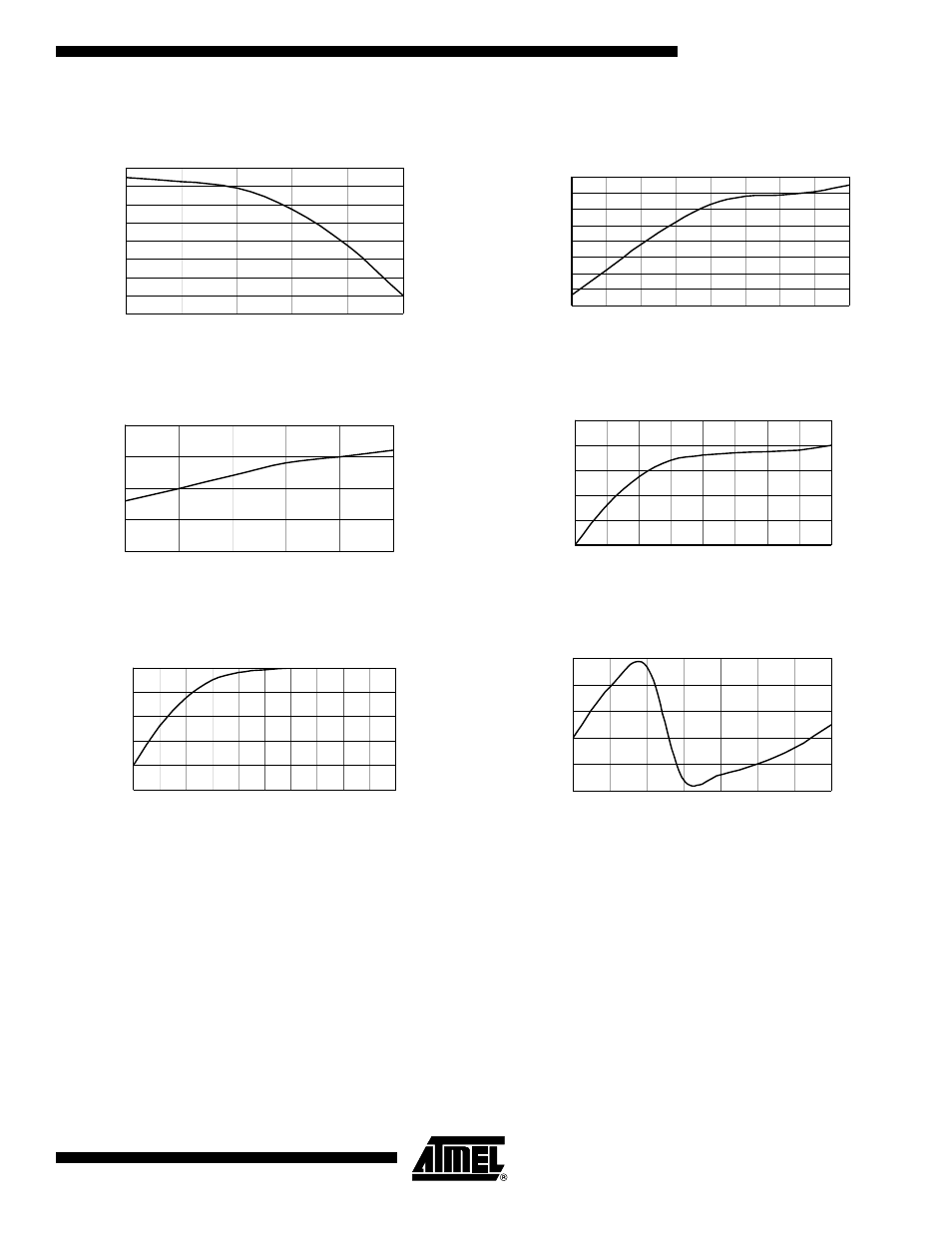

OUTPUT SOURCE CURRENT
VS. SUPPLY VOLTAGE (V
OH
= 2.4V, T
A
= 25°C)
-16
-14
-12
-10
-8
-6
-4
-2
0
2.75 3.00 3.25 3.50 3.75 4.00
SUPPLY VOLTAGE (V)
I OH
(m
A
)
OUTPUT SINK CURRENT
VS. SUPPLY VOLTAGE (V
OL
= 0.5V, T
A
= 25°C)
20
25
30
35
40
2.75 3.00 3.25 3.50 3.75 4.00
SUPPLY VOLTAGE (V)
I OL
(m
A
)
INPUT CLAMP CURRENT
VS. INPUT VOLTAGE (V
CC
= 3.3V, T
A
= 25°C)
-100
-80
-60
-40
-20
0
-1 -0.9 -0.8 -0.7 -0.6 -0.5 -0.4 -0.3 -0.2 -0.1 0
INPUT VOLTAGE (V)
IN
PUT
CURRENT
(m
A)
OUTPUT SOURCE CURRENT
VS. OUTPUT VOLTAGE (V CC = 3.3V,T A = 25°C)
-70
-60
-50
-40
-30
-20
-10
0
10
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0
OUTPUT VOLTAGE (V)
I OH
(m
A
)
OUTPUT SINK CURRENT
VS. OUTPUT VOLTAGE (V
CC
= 3.3V, T
A
= 25°C)
0
20
40
60
80
100
0 0.5 1 1.5 2 2.5 3 3.5 4
OUTPUT VOLTAGE (V)
I OL
(m
A
)
INPUT CURRENT vs. INPUT VOLTAGE
(V
CC
= 3.3V, T
A
= 25°C)
-10
-5
0
5
10
15
0 0.5 1 1.5 2 2.5 3 3.5
INPUT VOLTAGE (V)
IN
PUT
CURRENT
(u
A)
