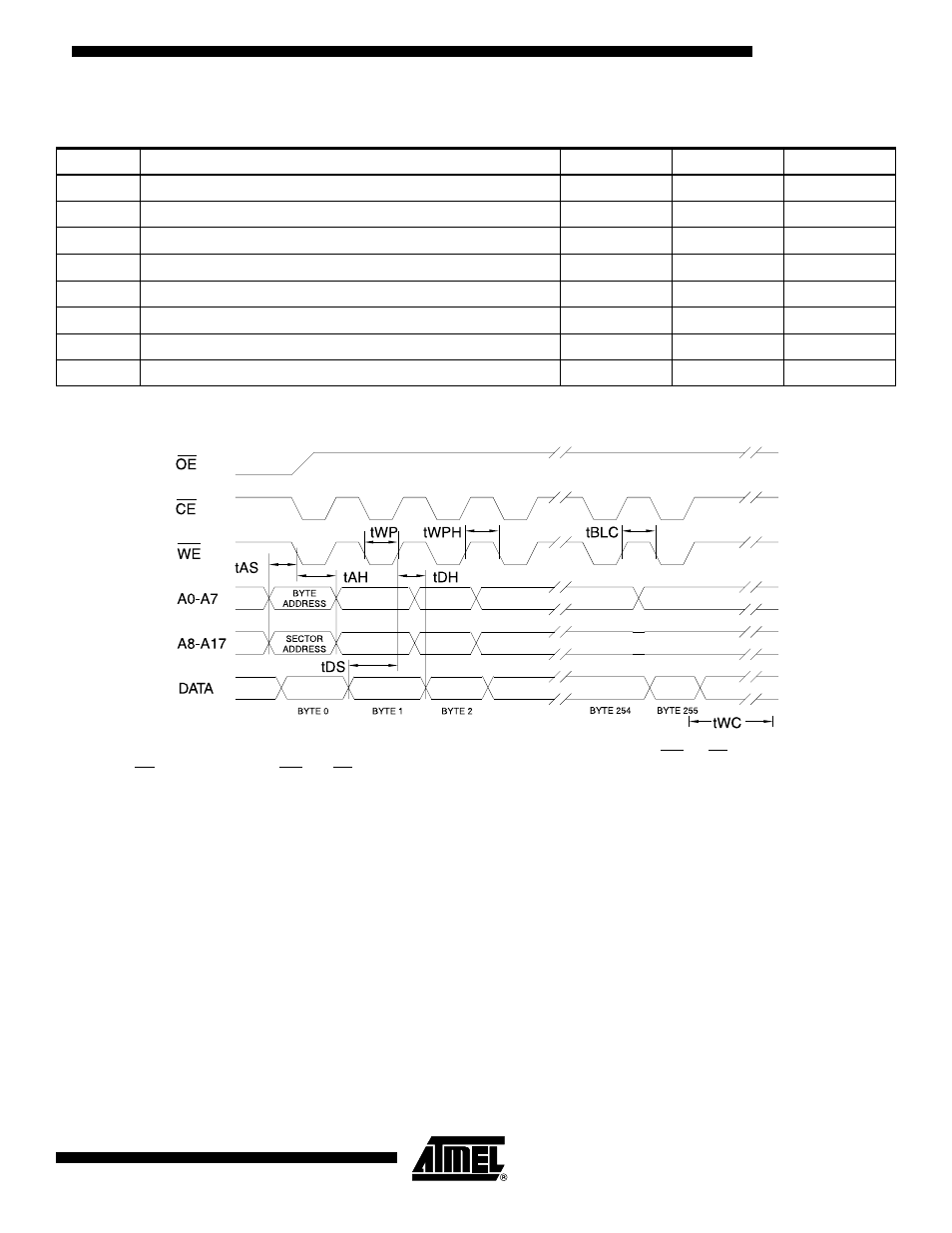

Program Cycle Waveforms
(1)(2)(3)
Notes: 1. A8 through A17 must specify the sector address during each high-to-low transition of WE (or CE).
2. OE must be high when WE and CE are both low.
3. All words that are not loaded within the sector being programmed will be indeterminate.
Program Cycle Characteristics
Symbol Parameter Min Max Units
t
WC
Write Cycle Time 10 ms
t
AS
Address Set-up Time 0 ns
t
AH
Address Hold Time 50 ns
t
DS
Data Set-up Time 50 ns
t
DH
Data Hold Time 0 ns
t
WP
Write Pulse Width 90 ns
t
BLC
Byte Load Cycle Time 150 µs
t
WPH
Write Pulse Width High 100 ns
