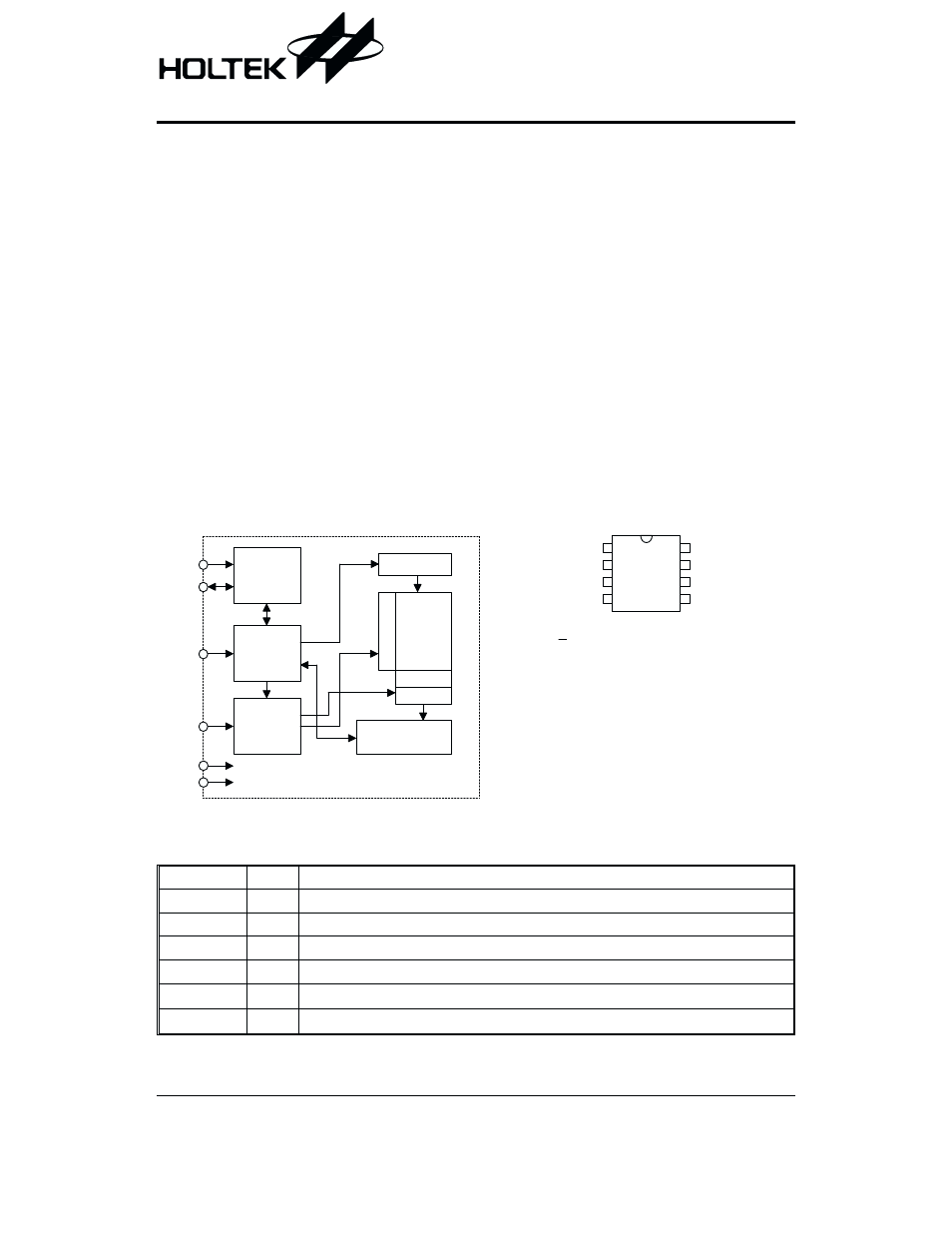

background image

HT24LC02

CMOS 2K 2-Wire Serial EEPROM

Block Diagram

Pin Assignment

Pin Description

Pin Name

I/O

Description

A0~A2

I

Address inputs

SDA

I/O

Serial data inputs/output

SCL

I

Serial clock data input

WP

I

Write protect

VSS

¾

Negative power supply, ground

VCC

¾

Positive power supply

Rev. 1.10

1

November 5, 2002

Features

·

Operating voltage: 2.2V~5.5V

·

Low power consumption

-

Operation: 5mA max.

-

Standby: 5

mA max.

·

Internal organization: 256

´8

·

2-wire serial interface

·

Write cycle time: 5ms max.

·

Automatic erase-before-write operation

·

Partial page write allowed

·

8-byte Page write modes

·

Write operation with built-in timer

·

Hardware controlled write protection

·

40-year data retention

·

10

6

erase/write cycles per word

·

Commerical temperature range (0

°C to +70°C)

·

8-pin DIP/SOP/TSSOP package

General Description

The HT24LC02 is a 2K-bit serial read/write non-volatile
memory device using the CMOS floating gate process.
Its 2048 bits of memory are organized into 256 words
and each word is 8 bits. The device is optimized for use
in many industrial and commercial applications where

low power and low voltage operation are essential. Up
to eight HT24LC02 devices may be connected to the
same 2-wire bus. The HT24LC02 is guaranteed for 1M
erase/write cycles and 40-year data retention.

1
2
3
4

8
7
6
5

H T 2 4 L C 0 2

8 D I P - A / S O P - A / T S S O P - A

A 0
A 1
A 2

V S S

V C C
W P
S C L
S D A

I / O

C o n t r o l

L o g i c

M e m o r y

C o n t r o l

L o g i c

S C L

S D A

A d d r e s s

C o u n t e r

A 0 ~ A 2

V C C

V S S

X
D
E
C

E E P R O M

A r r a y

P a g e B u f

Y D E C

S e n s e A M P

R / W C o n t r o l

H V P u m p

W P
