AT24C01

0134E–SEEPR–08/02

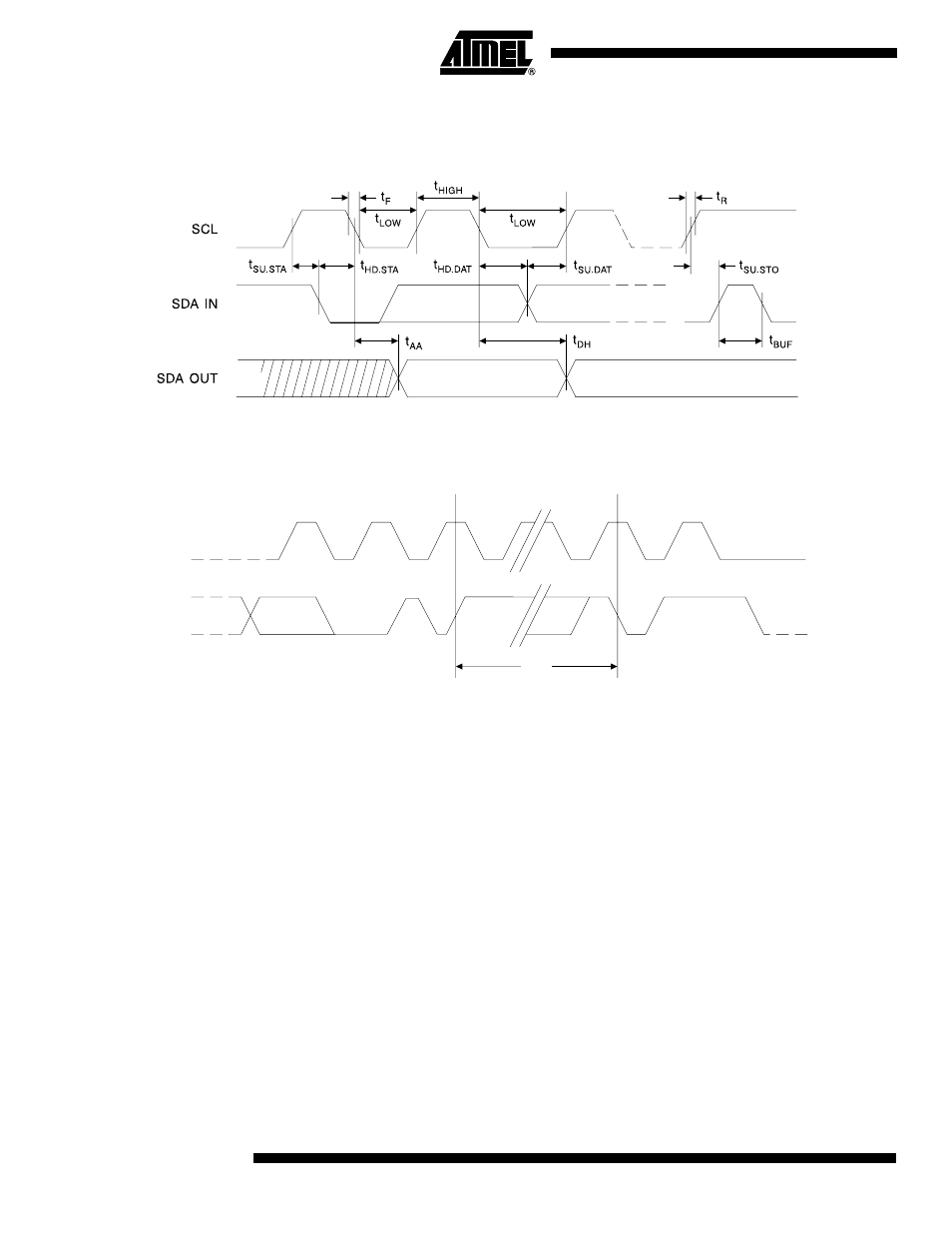

Bus Timing
SCL: Serial Clock, SDA: Serial Data I/O

Write Cycle Timing
SCL: Serial Clock, SDA: Serial Data I/O

Note:

1. The write cycle time t

WR

is the time from a valid stop condition of a write sequence to the end of the internal clear/write cycle.

SCL

SDA

WORD n

8th BIT

ACK

STOP

CONDITION

START

CONDITION

t

WR

(1)
