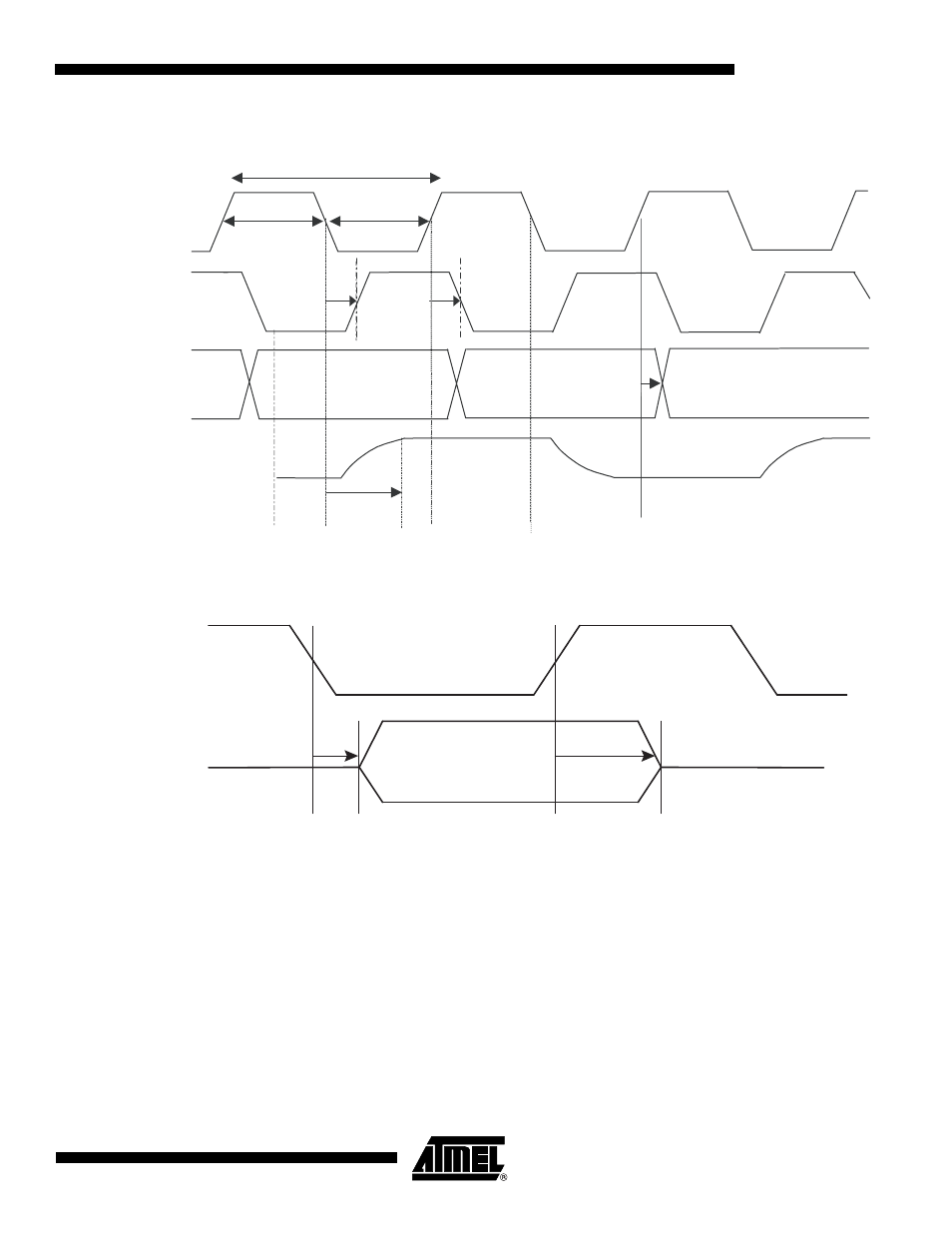

Figure 3-2. Read One Byte/Two Pixels
Figure 3-3. Output Enable
t PDATA
Clock
PCLK
fPCLK
tHCLK tLCLK
tPLHACKN
tPHLACKN
tPAVIDEO
Acknowledge
ACKN
Data output
Do0-3, De0-3
Video analog output
AVO, AVE
Data #N+1
Data #N Data #N-1
Data #N+2
Data #N+1
Data #N
Hi-Z Hi-Z
Output enable
OE
Data output
Do0 -3, De0 -3
Data output
tZDATA tDATAZ
