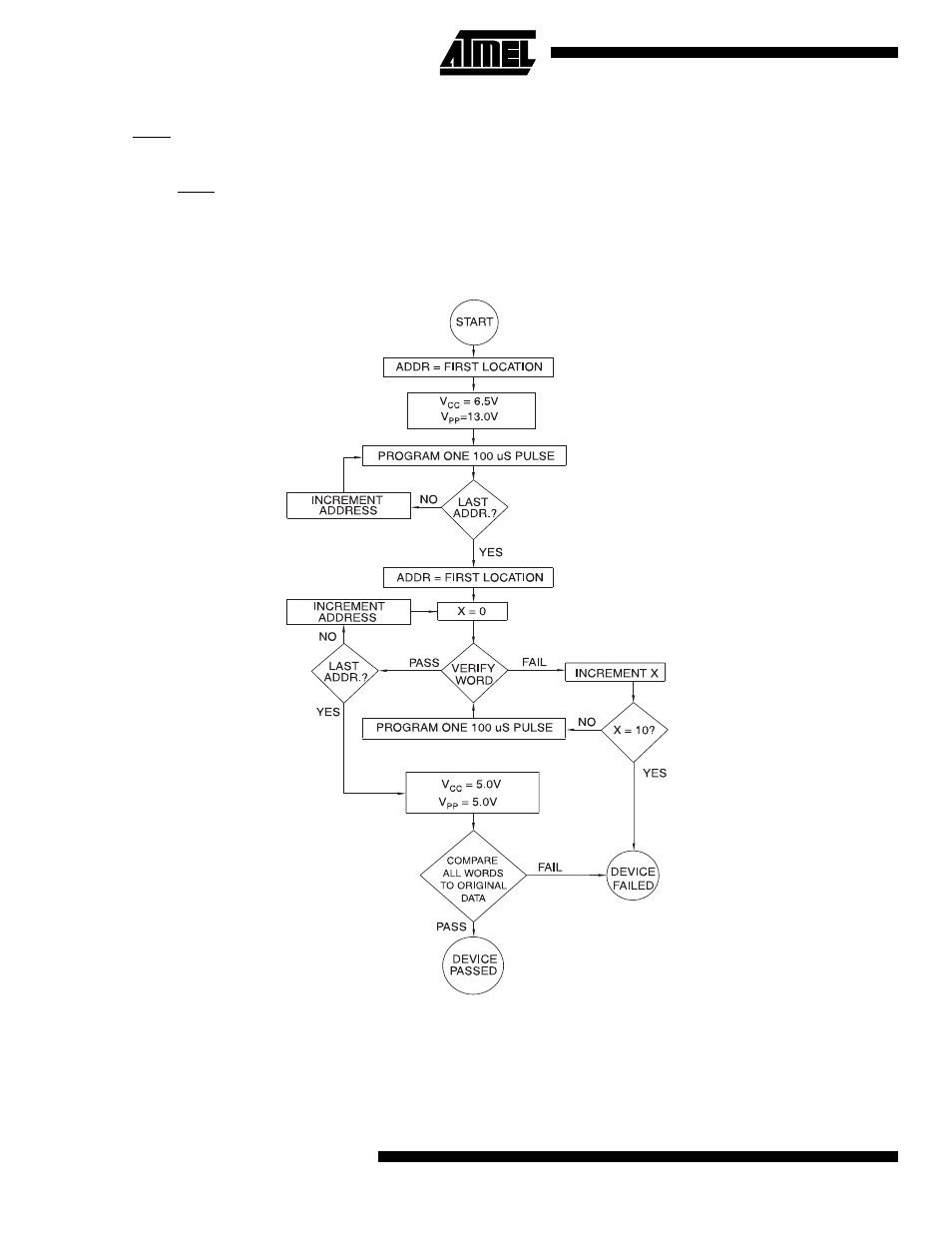

Rapid Programming Algorithm
A 100
µ
s PGM pulse width is used to program. The
address is set to the first location. V
CC
is raised to 6.5V and
V
PP
is raised to 13.0V. Each address is first programmed
with one 100
µ
s PGM pulse without verification. Then a
verification / reprogramming loop is executed for each
address. In the event a word fails to pass verification, up to
10 successive 100
µ
s pulses are applied with a verification
after each pulse. If the word fails to verify after 10 pulses
have been applied, the part is considered failed. After the
word verifies properly, the next address is selected until all
have been checked. V
PP
is then lowered to 5.0V and V
CC
to
5.0V. All words are read again and compared with the orig-
inal data to determine if the device passes or fails.
