W2465
Publication Release Date: April 1997
- 3 - Revision A8
CAPACITANCE
(V DD = 5V, T A = 25
°
C, f = 1 MHz)
PARAMETER SYM. CONDITIONS MAX. UNIT
Input Capacitance C IN V IN = 0V 6 pF
Input/Output Capacitance C I/O V OUT = 0V 8 pF
Note: These parameters are sampled but not 100% tested.
AC CHARACTERISTICS
AC Test Conditions
PARAMETER CONDITIONS
Input Pulse Levels 0.6V to 2.4V
Input Rise and Fall Times 5 nS
Input and Output Timing Reference Level 1.5V
Output Load C L = 100 pF, I OH /I OL = -1 mA/4 mA

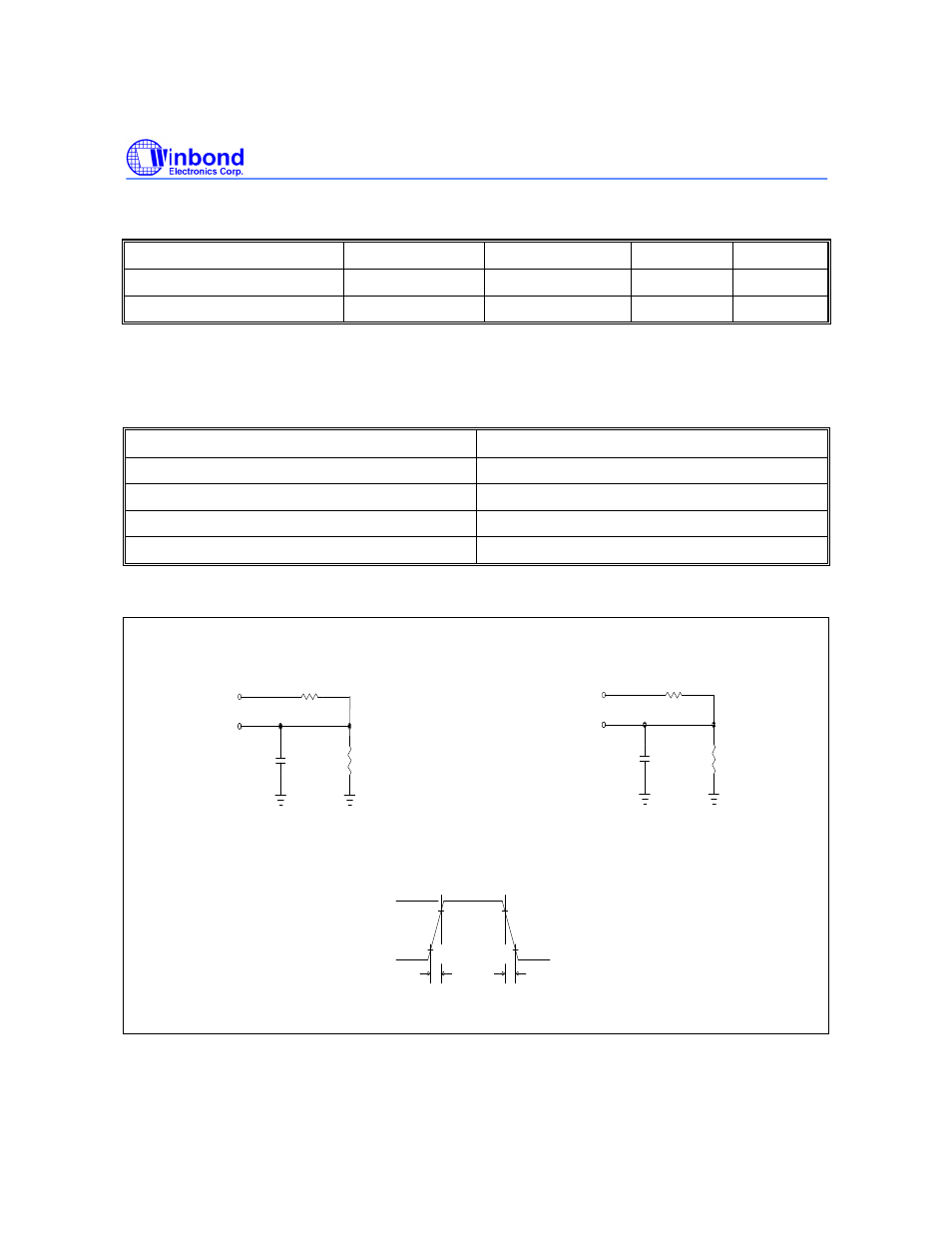

AC Test Loads and Waveform
90% 90%
5 nS
10%
5 nS
10%
R1 1000 ohm
5V
OUTPUT
R2
660 ohm
100 pF
Including
Jig and
Scope
2.4V
0.6V
5V
OUTPUT
R1 1000 ohm
5 pF
Including
Jig and
Scope
R2
660 ohm
(For T CLZ1, CLZ2, OLZ, CHZ1, CHZ2, OHZ, WHZ, OW T T T T T T T )
