MAX13171E/MAX13173E/MAX13175E
Multiprotocol, Pin-Selectable
Data Interface Chipset
______________________________________________________________________________________ 11
V.11/V.35 RECEIVER PROPAGATION
DELAY vs. TEMPERATURE
MAX13171E toc14
TEMPERATURE (°C)
PROPAGATION DELAY (ns)
10 35
10
14
12
8
4
6
2
18
16
20
0
-40 85 60 -15
t PHL
t PLH
V.11 TRANSMITTER PROPAGATION
DELAY vs. TEMPERATURE
MAX13171E toc15
TEMPERATURE (°C)
PROPAGATION DELAY (ns)
10 35
15
10
5
20
25
0
-40 85 60 -15
t PHL
t PLH
V.35 TRANSMITTER PROPAGATION
DELAY vs. TEMPERATURE
MAX13171E toc16
TEMPERATURE (°C)
PROPAGATION DELAY (ns)
10 35
15
25
10
5
20
30
0
-40 85 60 -15
t PHL
t PLH

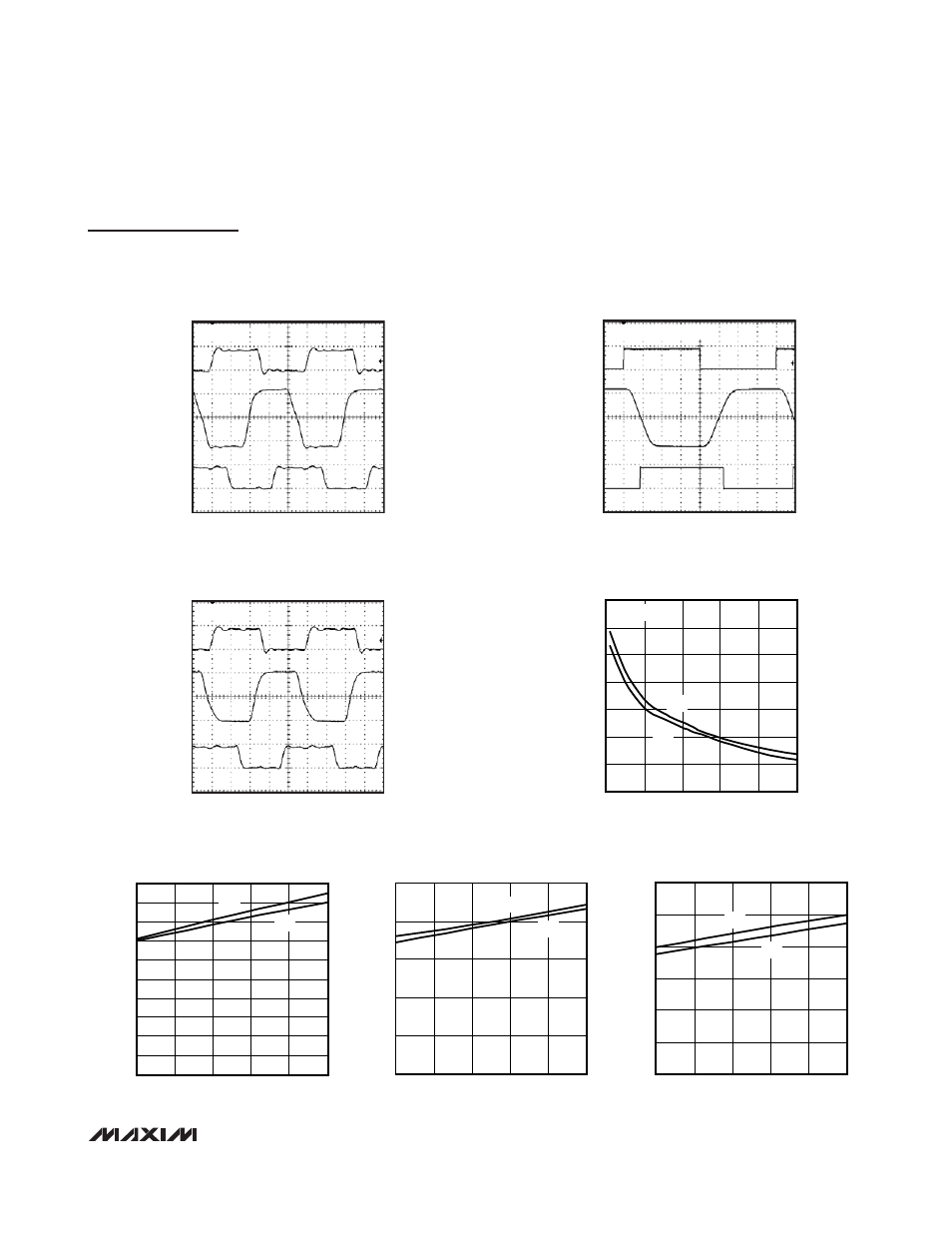

V.35 LOOPBACK OPERATION (40Mbps)
MAX13171E toc12
1 µs/div
R_OUT
2V/div
T_OUT_/R_IN_
0.5V/div
T_IN
2V/div
FULL LOAD
V.28 SLEW RATE vs.
LOAD CAPACITANCE
MAX13171E toc13
LOAD CAPACITANCE (pF)
SLEW RATE (V/
µ
s)
2000 3000
10
20
15
5
30
25
35
0
0 5000 4000 1000
R L = 3kΩ
SR F
SR R
MAX13171E Typical Operating Characteristics (continued)
(V CC = +3.3V, V L = +1.8V, T A = +25°C, unless otherwise noted.)
V.11 LOOPBACK OPERATION (40Mbps)
MAX13171E toc10
10ns/div
R_OUT
2V/div
T_OUT_/R_IN_
2V/div
T_IN
2V/div
R = 50 Ω
V.28 LOOPBACK OPERATION (250kbps)
MAX13171E toc11
1 µs/div
R_OUT
2V/div
T_OUT_/R_IN_
5V/div
T_IN
2V/div
R L = 3k Ω, C
L = 2500pF
