9 Need help? Call 800-620-2790
RF-TVML70 TV Wall Mount

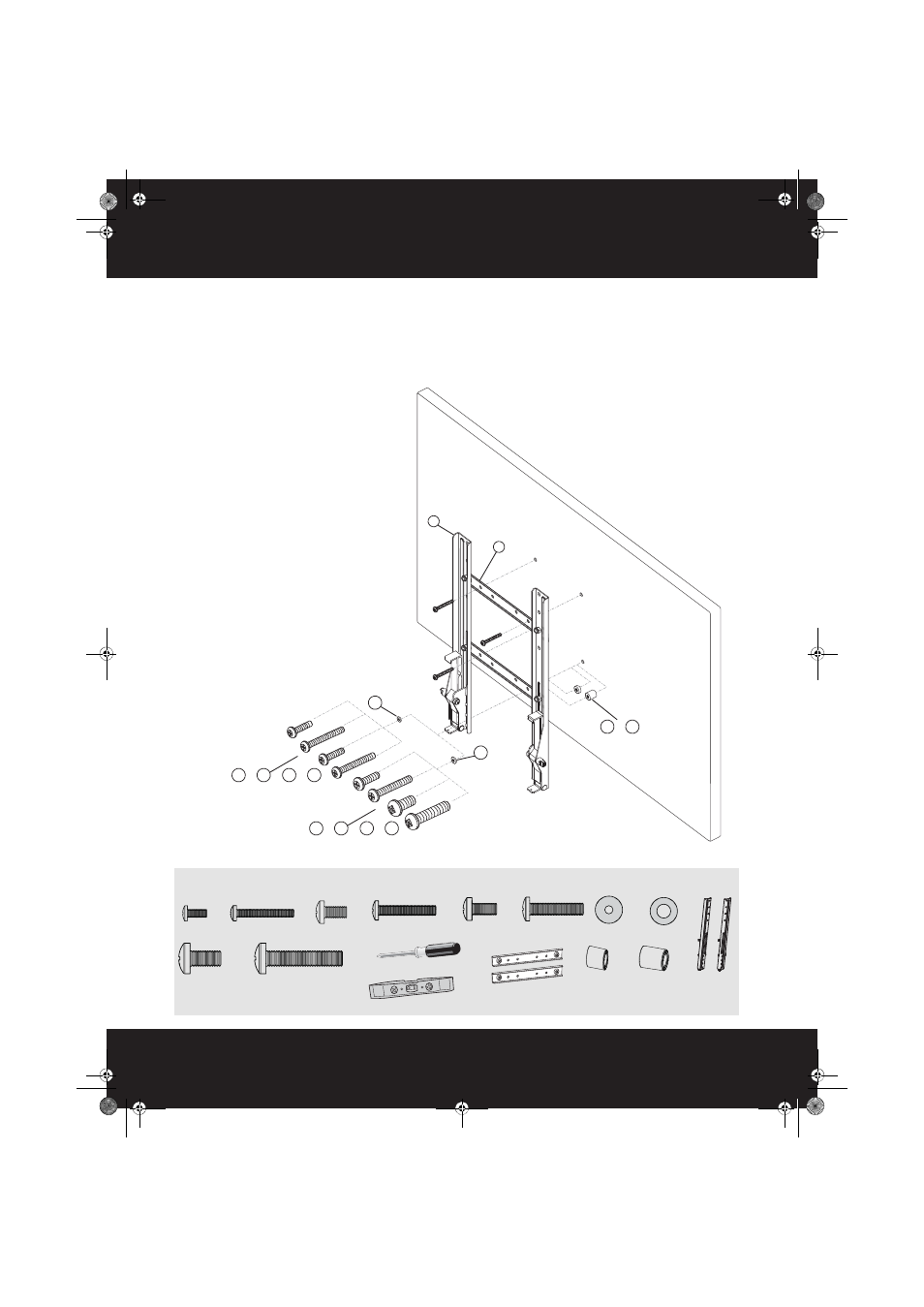

STEP 4: Option 2- Attaching the vertical rails and adapters to the TV
1 Align the vertical rails (B) with the VESA adapters (E) with the screw holes on the back of the TV.
2 Install the screws you identified in Step 2 (M-A, M-B, M-C, M-D, M-E, M-F, M-G, or M-H) securely into the
four holes in the back of the TV, using washers (M-K or M-L) and spacers (M-I or M-J) as necessary. Do not
over-tighten.
Note: The tops of the vertical rails (B) should be level on the back of the TV.
You’ll need
B
M-A M-B M-C
M-I M-J
M-D
M-E M-F M-G M-H
M-K
M-L
E
or
or
or or or
or or or
NOTE: M4 screws (parts M-A or M-B)
should not be used for hole patterns
greater than 200 mm x 200 mm.
M-A (4) M-B (4)
Phillips screwdriver
or or
M-C (4)
Level
(B) Vertical
rails (2)
or
M-D (4)
or
M-E (4)
or
M-F (4)
M-G (4)
or
M-H (4)
or
M-K (4) M-L (4)
or
M-I (4) M-J (4)
E VESA adapters (2)
