RF-TVML70 TV Wall Mount
Installation instructions

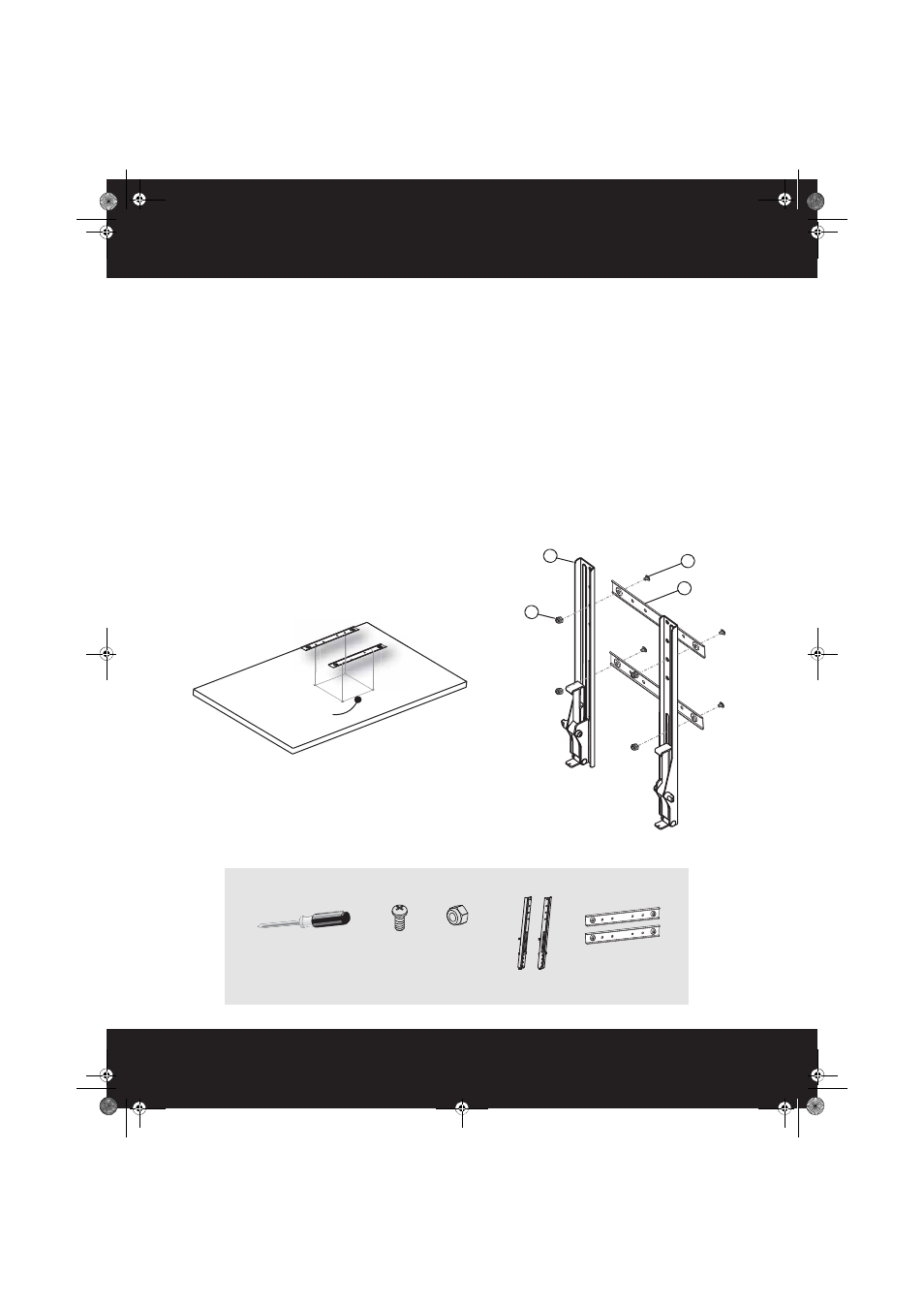

STEP 1 - Determine whether you need the optional VESA adapters
1 Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen from damages
and scratches.
2 If your TV has a table-top stand attached, remove the stand. See the documentation that came with your TV
for instructions.
3 Measure the distance between the mounting holes on the back of your TV.
4 If the distance equals 7.9” (200 mm), you will need to attach the VESA adapters (E) before proceeding to
Step 2.
OR
If the distance is greater than 7.9” (200 mm), the VESA adapters (E) are not needed and you can proceed
directly to Step 2.
5 To attach the optional VESA adapters (E), insert the panhead screws (M-M) into the recessed holes of the
VESA adapters (E) and through the vertical rails (B), then insert the nylock nuts (M-N) into the back of the
vertical rail and thread them onto the screws and tighten. Make sure that the flat side of the adapter will be
against the back of the TV when assembled.
You’ll need
A
E
M-N
M-M
7.9” (200 mm)
M-N Nylock
nuts (4)
Phillips screwdriver M-M Pan head
screws (4)
(B) Vertical
rails (2)
(E) VESA
adapters (2)
