RF-TVML70 TV Wall Mount

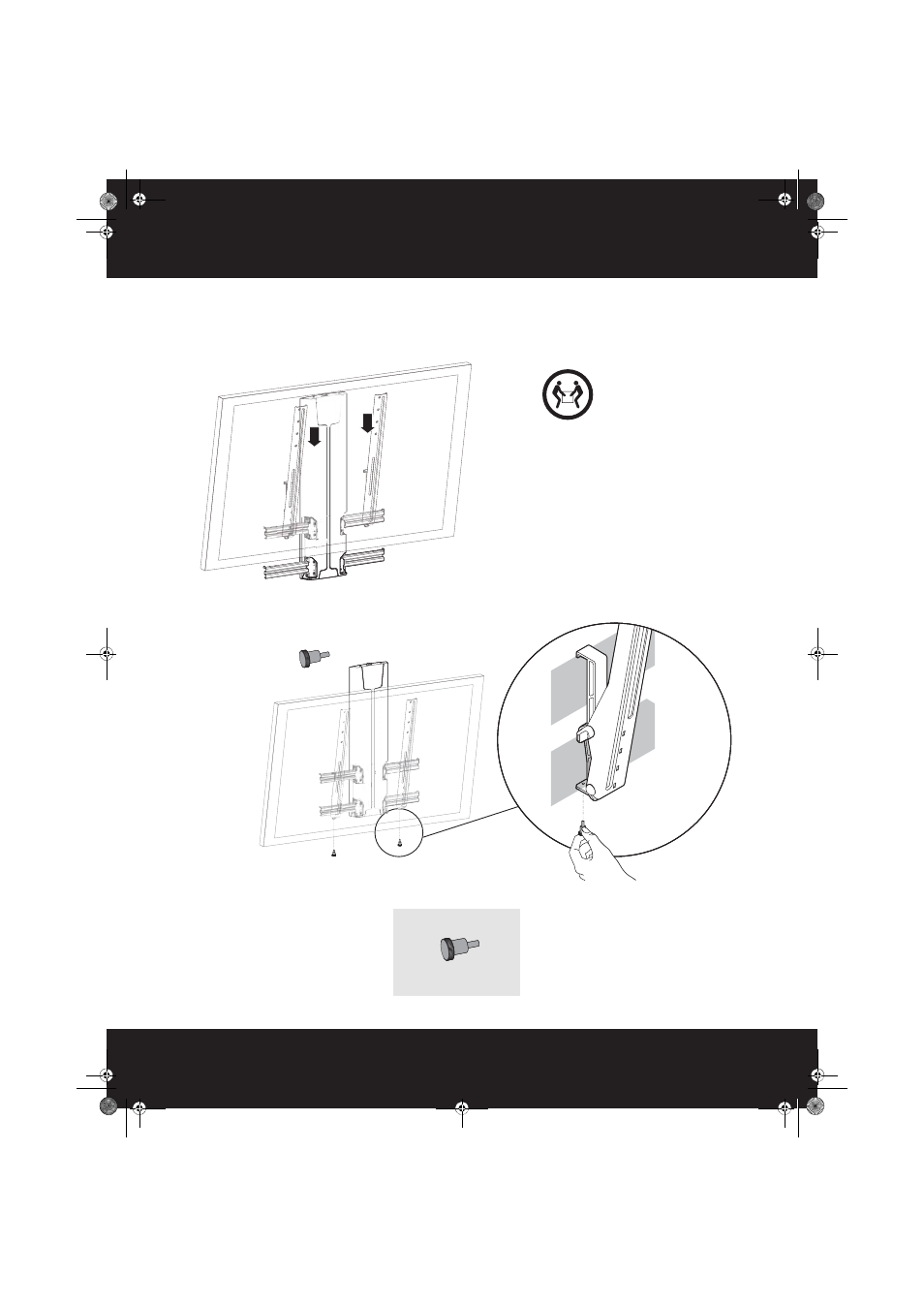

STEP 8 - Attach your TV to the lift assembly
1 Hang the hooks of the vertical rails (B) over the top horizontal rails (C), then lower the bottom tabs of the
vertical rails (B) under the bottom horizontal rail (C).
2 Secure with the knob screws (P-C) through the bottoms of the vertical arms (B).
You’ll need
HEAVY! You will need
assistance with this step.
NOTE: This shows the front of the vertical rails.
The back of the rails have hooks that will hang
over the horizontal rails.
P-C (2)
