RF-TVML70 TV Wall Mount

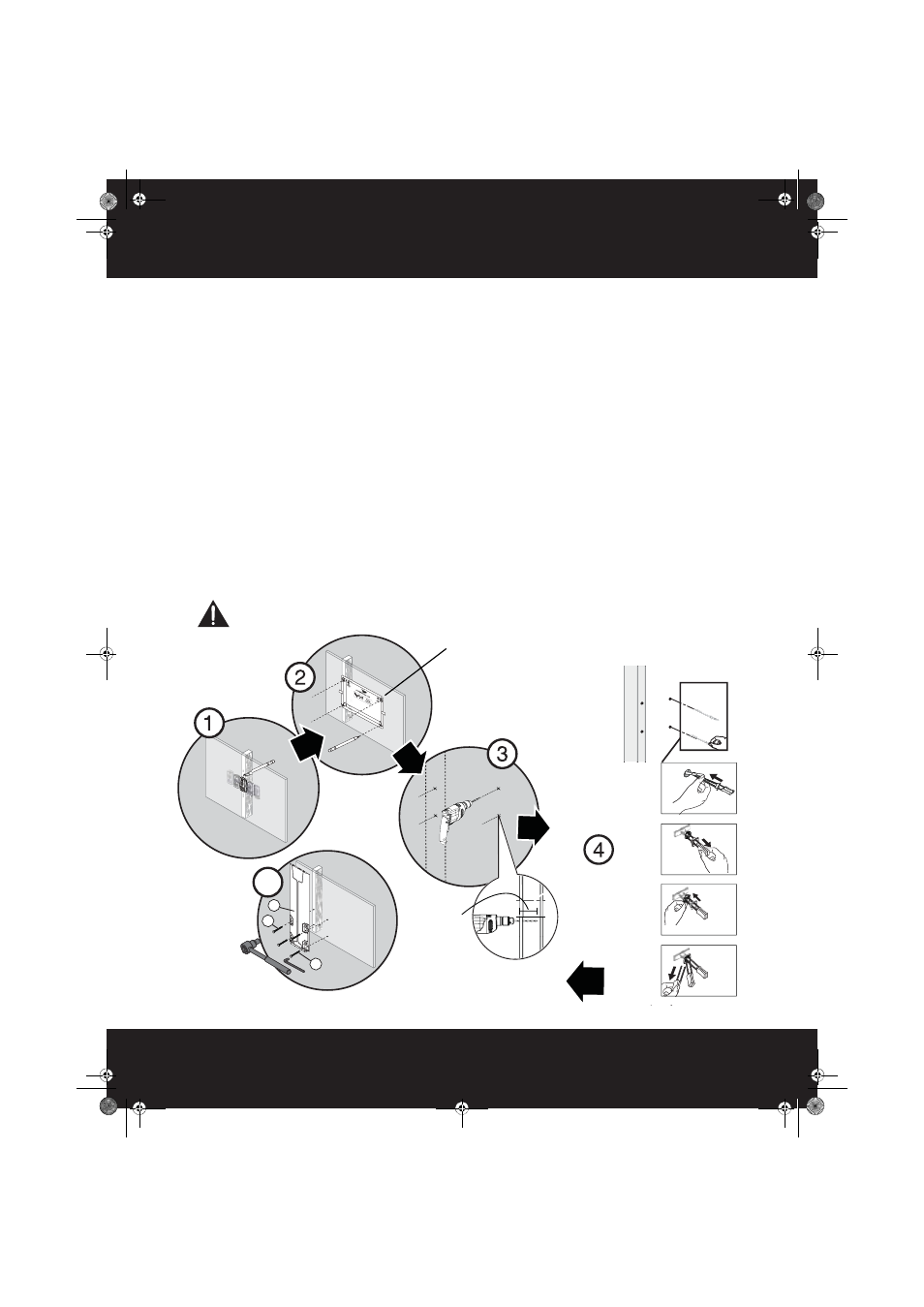

STEP 6 - Option 1: Installing on a wood stud wall
Note: Any wallboard or material covering the wall must not exceed 5/8" (16 mm).
1 Locate the stud. Verify the center of the stud with an edge-to-edge stud finder.
2 Align the wall plate template (D) at the height you determined in the previous step, so that it lines up with at
least one stud, make sure that it is level, then tape it to the wall. Use a pencil to mark the lag bolt hole
locations (2) on the stud centers and snap toggle locations (2) on the wallboard. Remove the wall plate
template.
3 Drill pilot holes in the wood stud for the lag bolts (W-A) to a depth of 3.15 in. (80 mm) using a 7/32 in.
(5.5 mm) diameter drill bit, then drill holes for the snap toggles (F) (2) in the wallboard using a 1/2 in.
(13 mm) diameter drill bit.
4 Install the snap toggles (F) into the wallboard (not the stud).
a Fold the metal bar part of the toggle (F) flat, then insert it into the hole drilled in the previous step.
b The metal bar should unfold behind the wall. Gently pull the snap toggle (F) forward until the metal bar
comes in contact with the wall.
c Push the grommet part of the snap toggle (F) along the plastic sliders toward the wall. Gently push the
gromet into the opening to form a rim around the hole.
d With the toggle grommet firmly engaged in the wall, snap off the plastic sliders and remove the remaining
part of the toggle.
5 Attach the lift assembly (A) to the wall using two 1/4-20 x 1-1/2” hex socket screws (W-C) through the snap
toggles (F). Use a 4 mm Allen wrench (P-B) to tighten. Do not over tighten.
6 Insert the two lag bolts (W-A) through the holes in the lift assembly (A), then tighten the lag bolts into the
stud only until they are firm against the lift assembly (A). Do not over tighten.
CAUTION: Avoid potential injuries or property damage!
DO NOT over-tighten the lag bolts (W-A) or screws (W-C).
