Turbosmart BOV ADAPTERS - Toyota Supra – Twin Turbo User Manual
Page 4
SUPRA JZA80 TWIN TURBO BLOW-OFF VALVE ADAPTOR INSTRUCTIONS
Head Office: Turbosmart Pty Limited, PO Box 264 Croydon, NSW, 2132 Australia
Ph: +61(2) 9798 2866
Fax: +61 (2) 9798 2826
Email:
USA Office: Turbosmart USA, 1185 Park Center Drive, Suite Q, Vista CA 92081 USA
Ph: (760) 727 7610
Fax: (760) 727 7963
Email:
PART NUMBER
FG-ADM-SUPRA

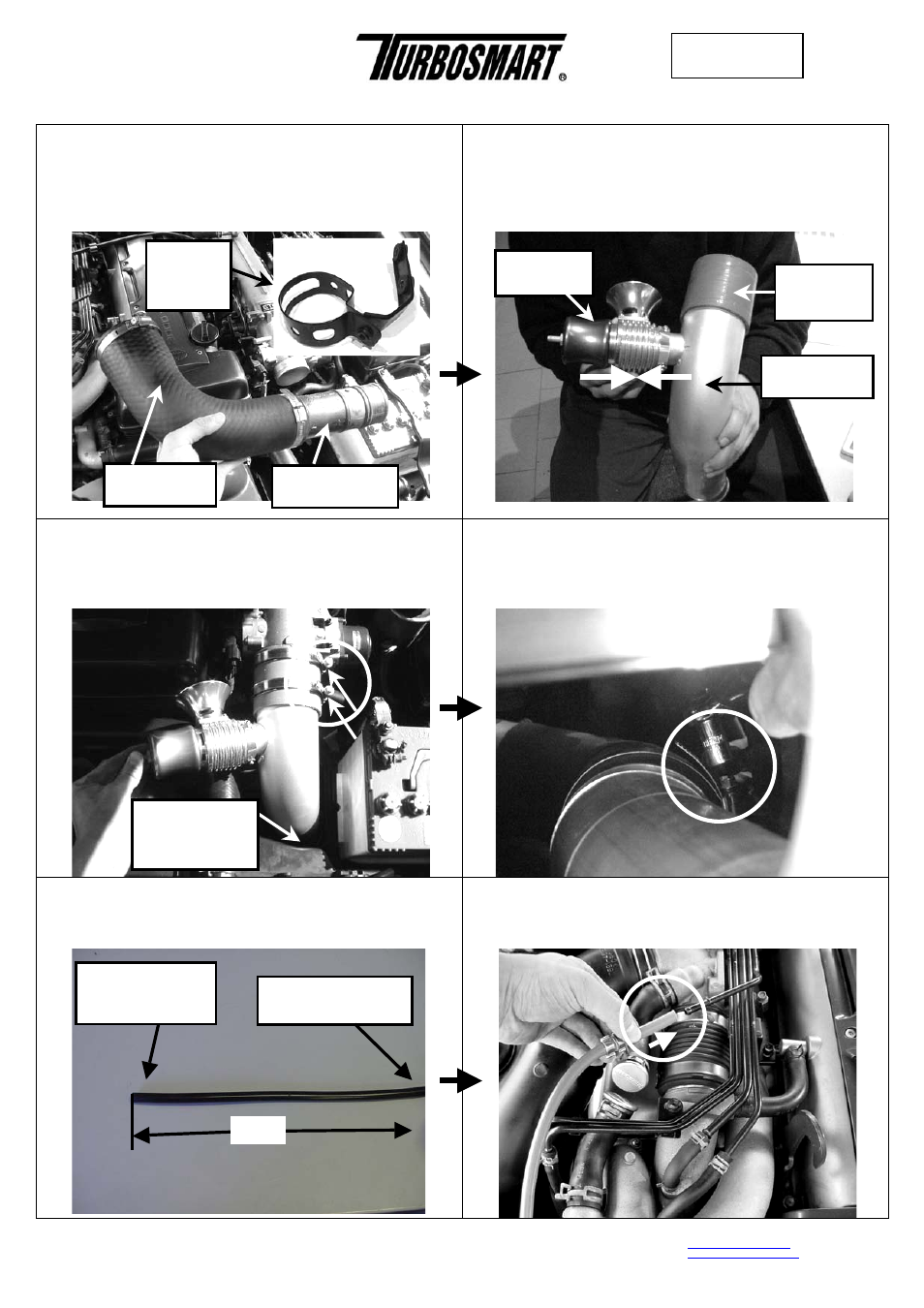

Step 9. You should have removed the following from
your Supra: (1) top section of intercooler outlet pipe,
(2) bottom section of intercooler outlet pipe and (3)
intercooler outlet pipe bracket.
Step 10. Fit the Silicon hose coupler over the Supra
Adaptor. Install your Turbosmart BOV onto the
adaptor by following the instructions included with the
BOV.
Step 11. Fit the adaptor between the intercooler and
the throttle body. Using the two 90mm hose clamps
supplied, secure the Silicon hose coupler onto the
Soarer adaptor and the throttle body.
Step 12. Use the 70mm hose clamp supplied to secure
the intercooler pipe to the other end of the adaptor pipe.
Tighten the hose clamp with a 7mm socket or
screwdriver.
Step 13. Connect the pre-assembled silicon hose
assembly as shown in the diagram below:
Step 14. Install one end of the Silicon hose assembly
supplied onto the factory BOV boost/vacuum source
and secure with the 6mm spring clamp supplied.
Turbosmart
BOV
Supra Adaptor
Connect one end to
factory BOV
boost/vacuum source
Connect other end to
Turbosmart BOV
700mm
Top Section
Bottom Section
Silicon Hose
Coupler
Intercooler
Outlet Pipe
Bracket
Install 70mm
constant tension
hose clamp here
